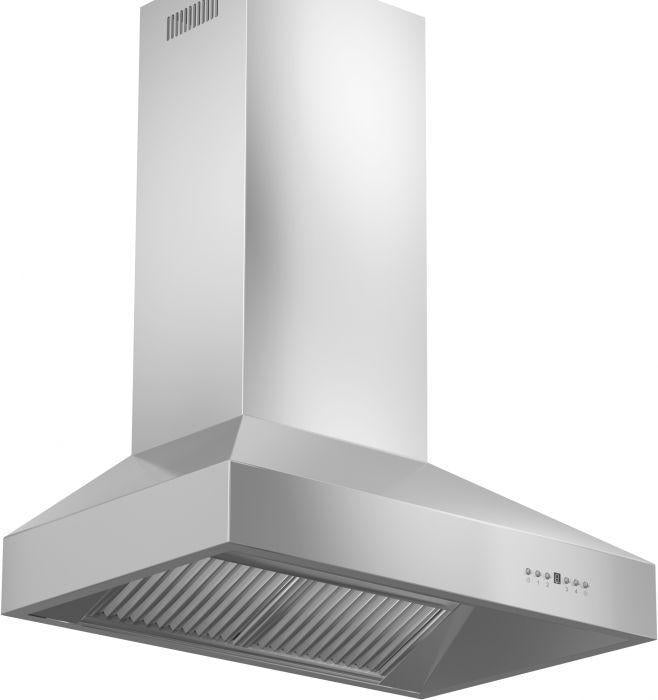

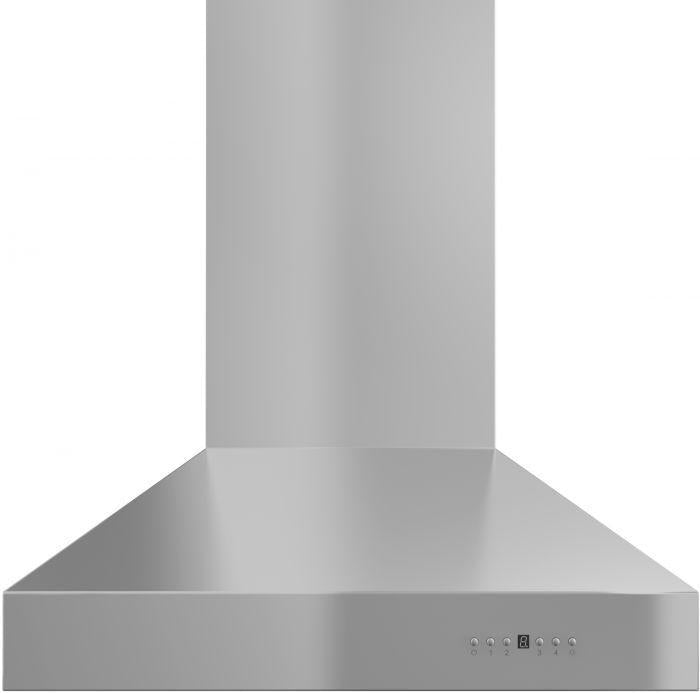

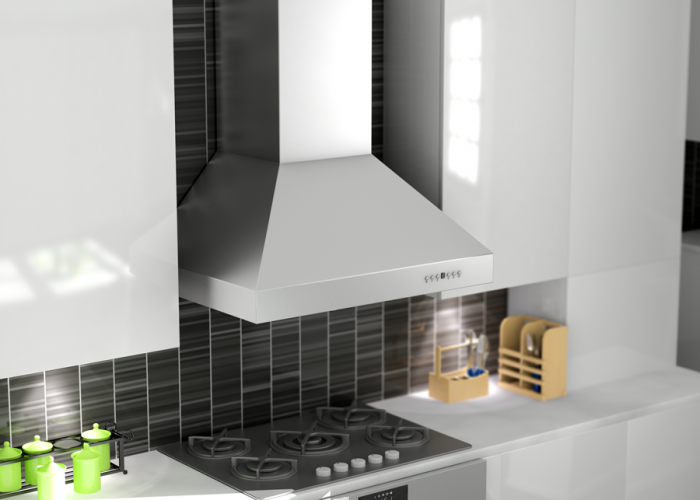

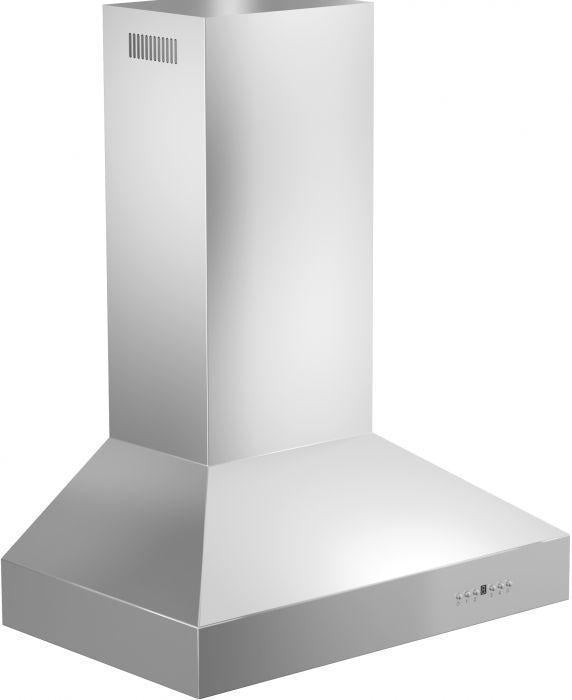

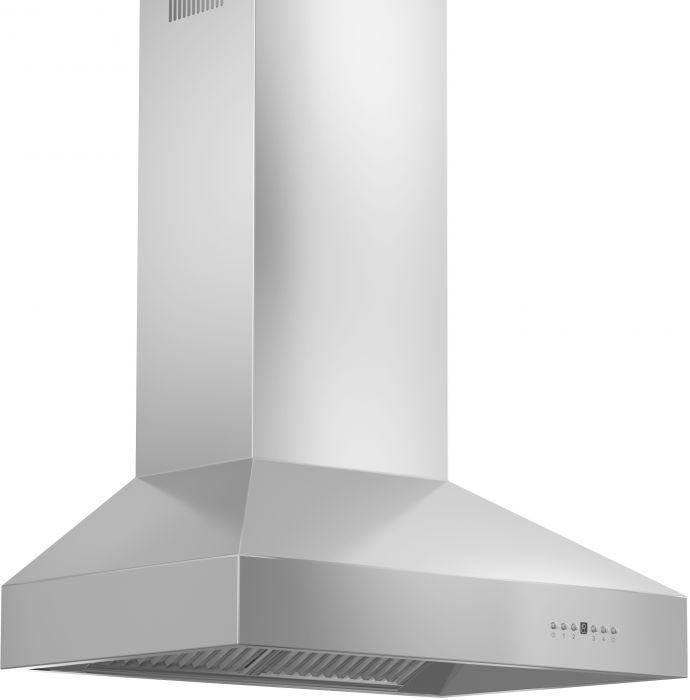

The ZLINE 697-54 is a 54-inch wall mount range hood constructed from stainless steel and designed for indoor kitchen ventilation. This model features a ducted system and is suitable for installation in a variety of kitchen layouts.
The hood is built with 430-grade stainless steel for durability and includes a 4-speed motor with a maximum airflow capacity of up to 700 CFM, helping to remove smoke, grease, and cooking odors efficiently.

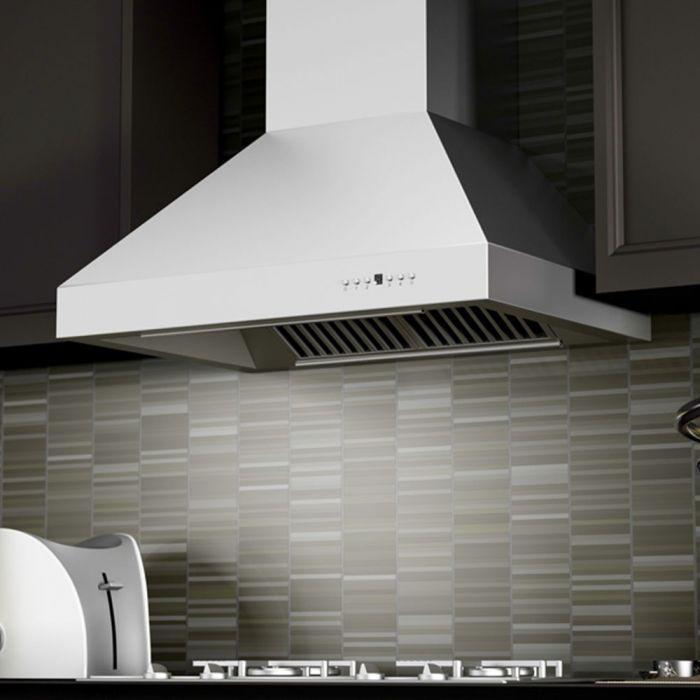

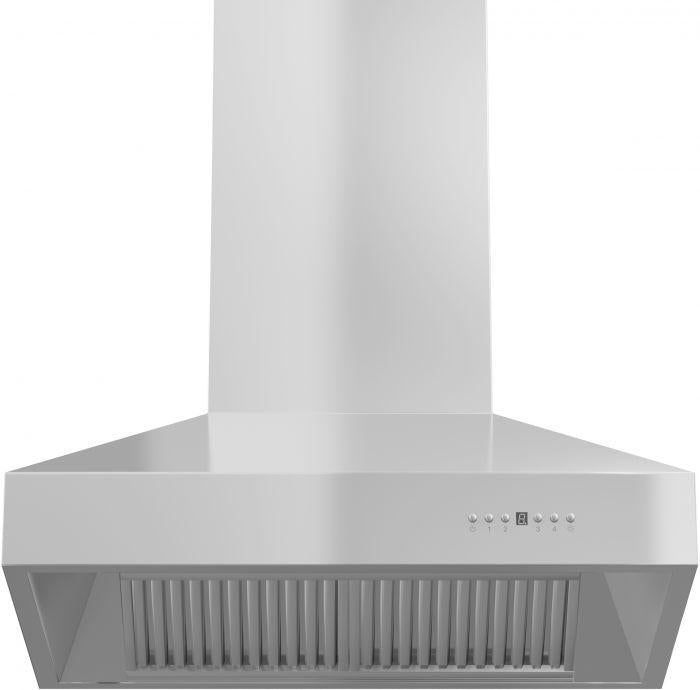

Integrated LED lighting provides clear illumination over the cooking surface, while stainless steel baffle filters are removable and dishwasher-safe for easy maintenance.

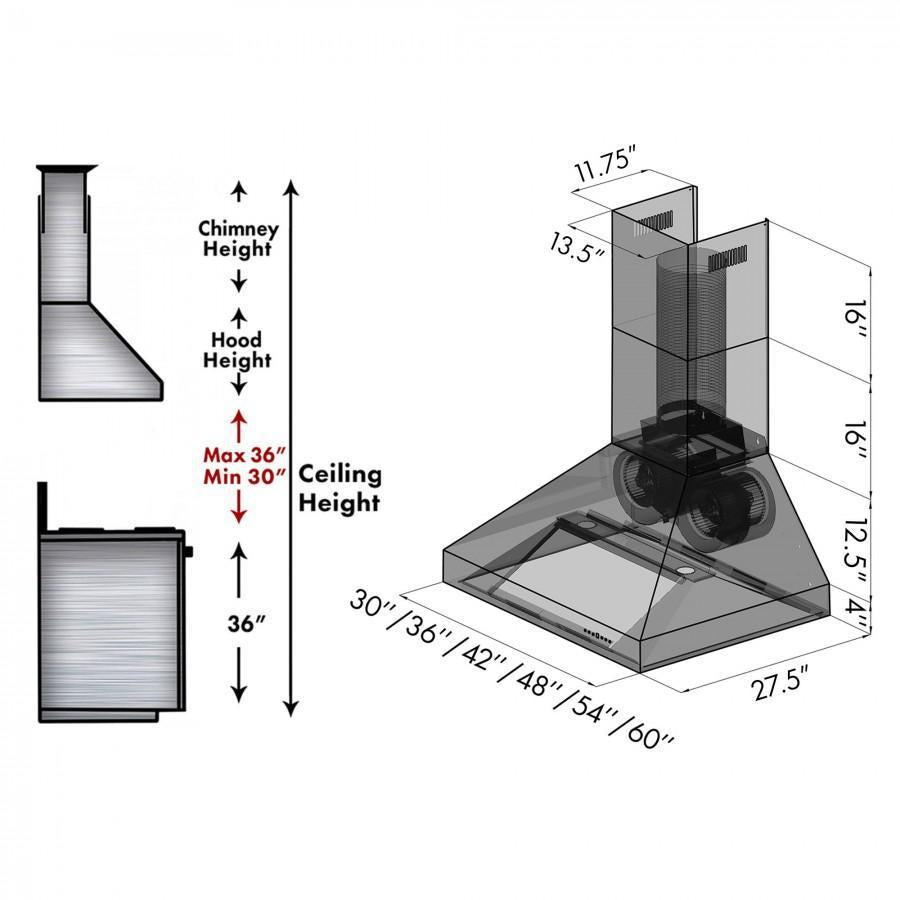

The unit includes telescoping chimney pieces designed to fit standard ceiling heights between 8 ft and 9 ft. Extension kits and short kits are available for ceilings outside this range (sold separately).
This model is intended for indoor use only and does not support ductless or recirculating installation.
Key Features:
-
54-inch wall mount range hood for ducted installation
-
Constructed from 430-grade stainless steel
-
4-speed motor with up to 700 CFM airflow
-
Built-in LED lighting for cooktop visibility
-
Dishwasher-safe stainless steel baffle filters
-
Telescoping chimney system for standard ceiling heights (8 ft – 9 ft)
-
Extension and short kits available for non-standard ceiling heights (sold separately)
-
Indoor use only (not certified for outdoor installation)
Additional Information
-
Ductless/Recirculating Option: Not supported
-
Compatible with optional chimney extension and crown molding accessories (sold separately)
-
Available in multiple sizes: 30", 36", 42", 48", 54", and 60"
