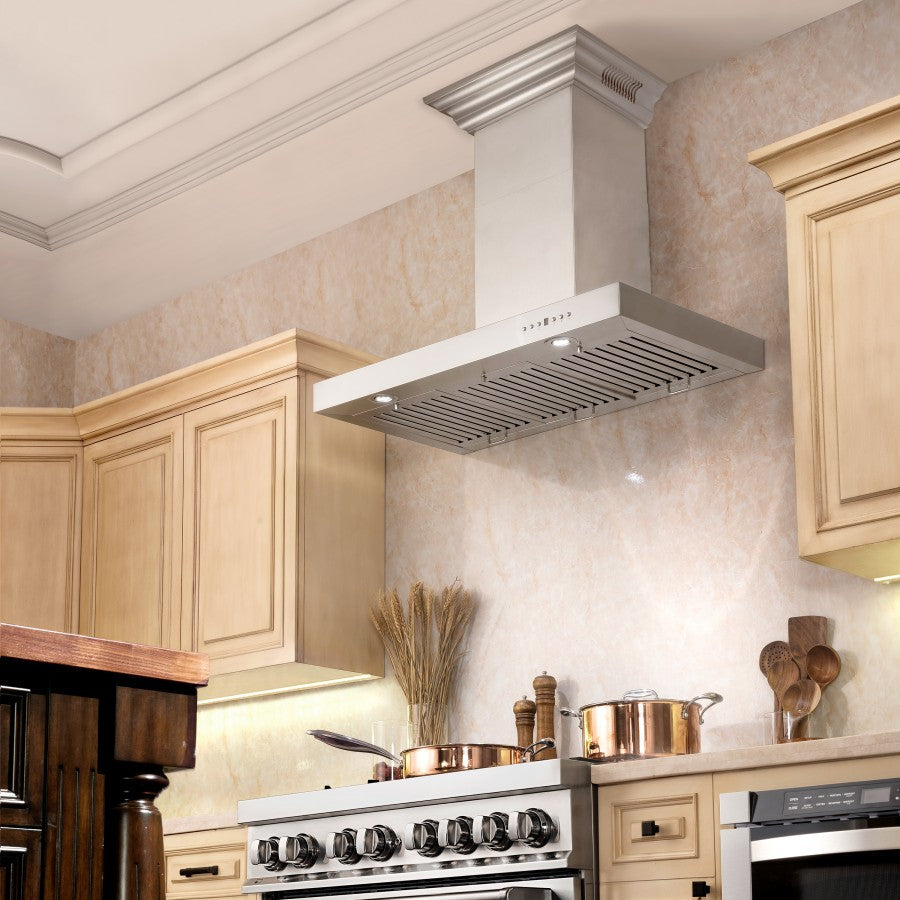

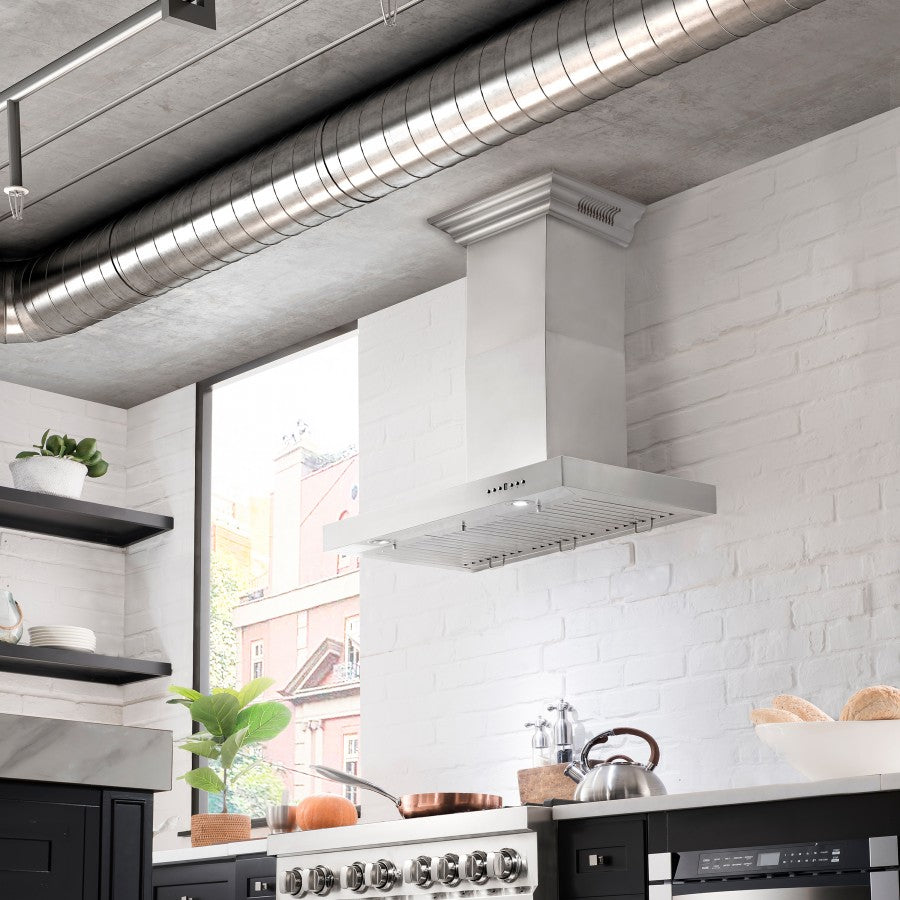

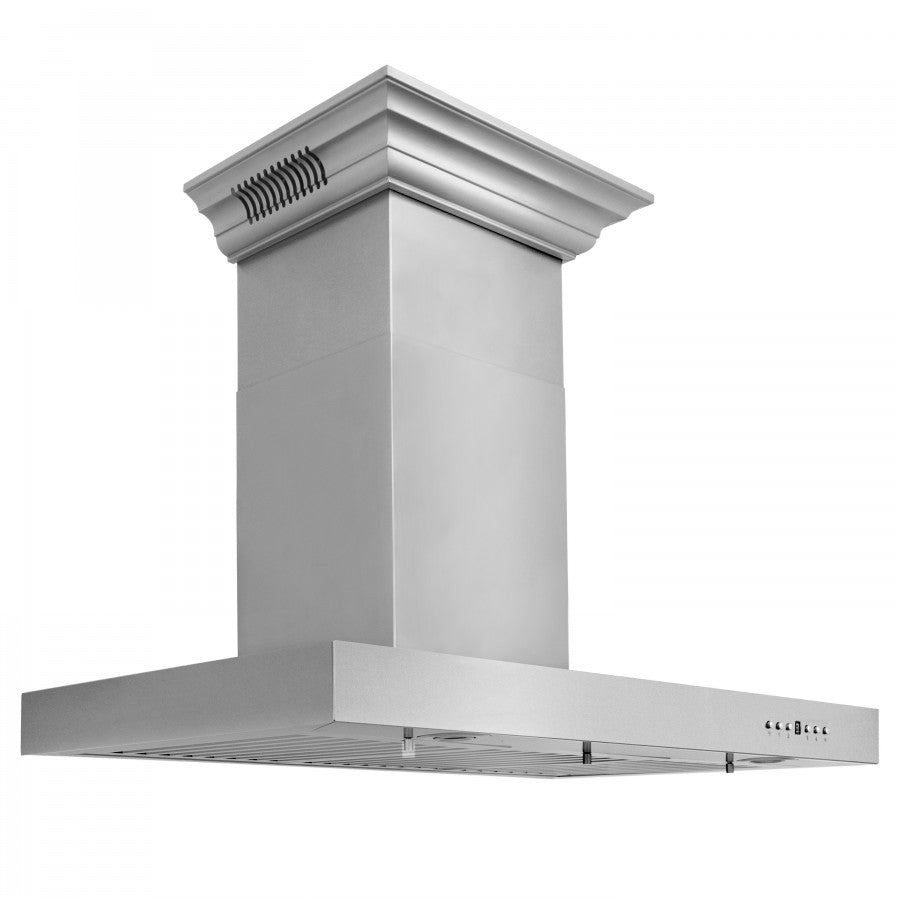

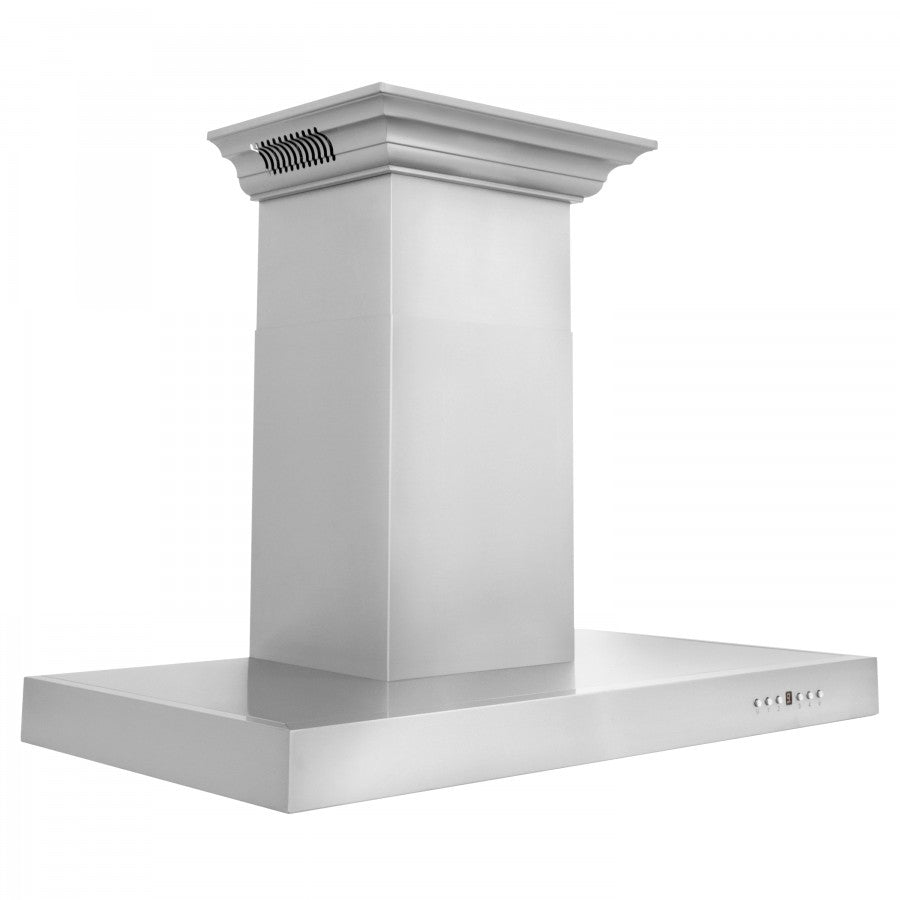

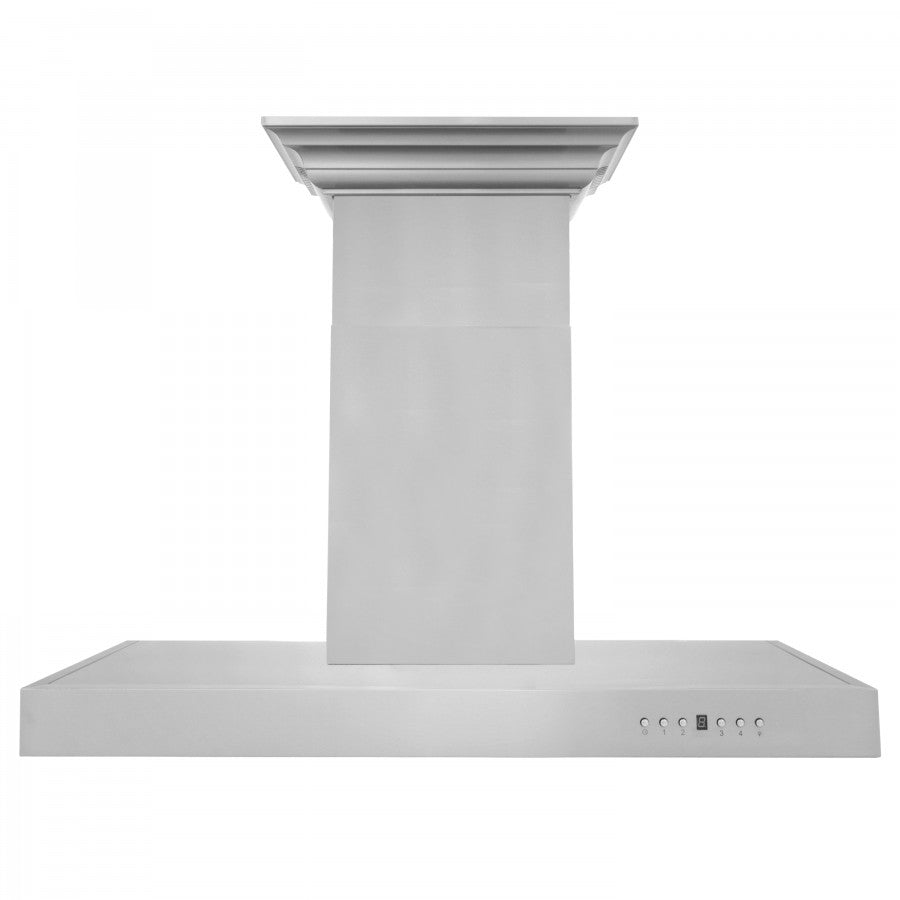

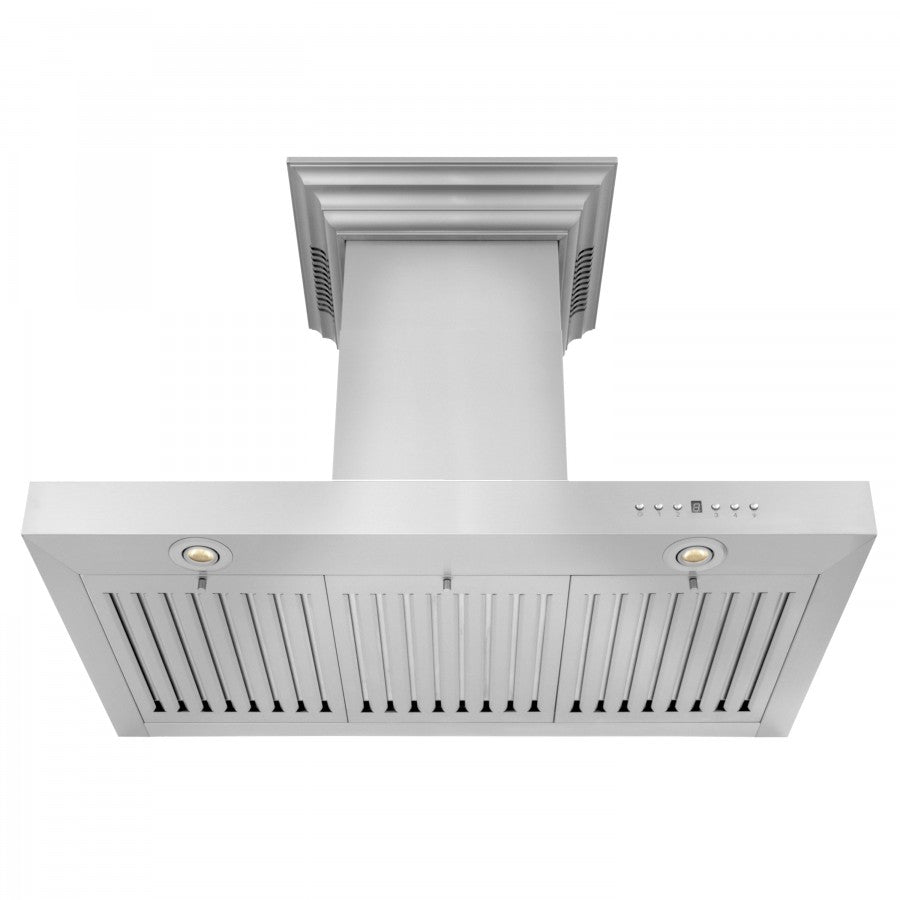

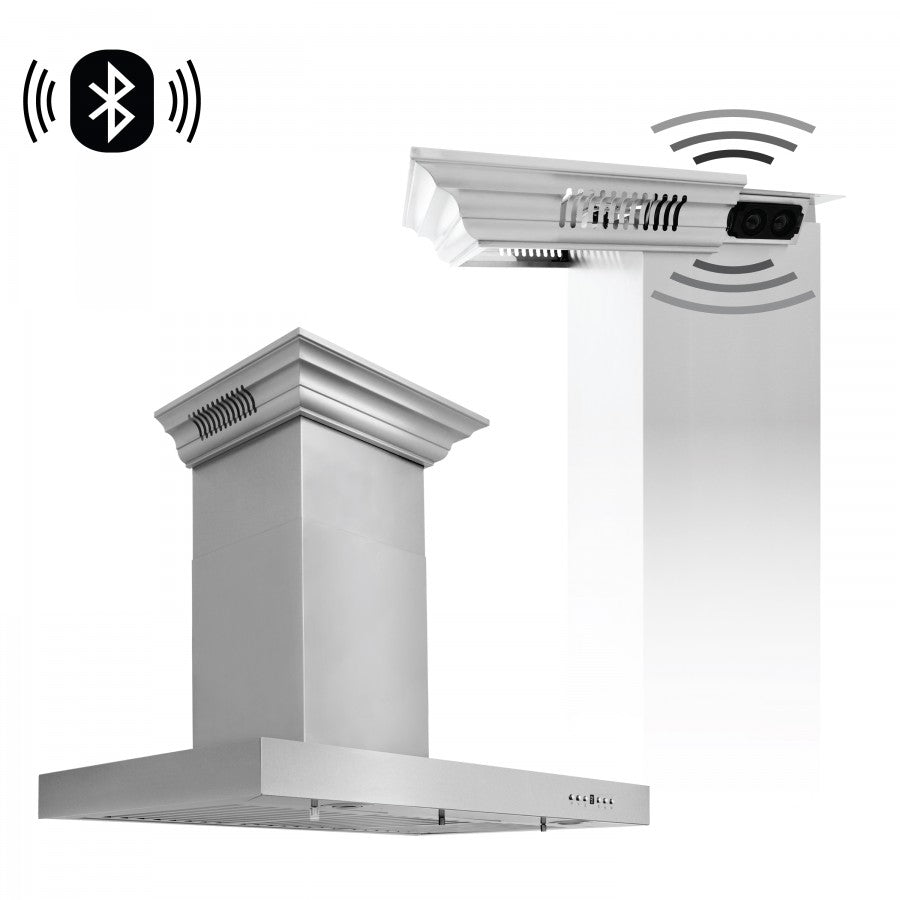

The ZLINE Wall Mount Range Hood with CrownSound® Bluetooth speakers combines ventilation performance with integrated audio functionality. Designed for residential kitchens, this unit features a 400 CFM motor with four fan speeds to effectively remove smoke, grease, and cooking odors.
The built-in Bluetooth speaker system allows wireless connection to compatible smart devices within a range of up to 50 feet, providing audio playback while cooking. The range hood includes stainless steel construction, LED lighting, and dishwasher-safe baffle filters for easy maintenance.
Key Features:
- 400 CFM motor with 4-speed fan control for efficient ventilation

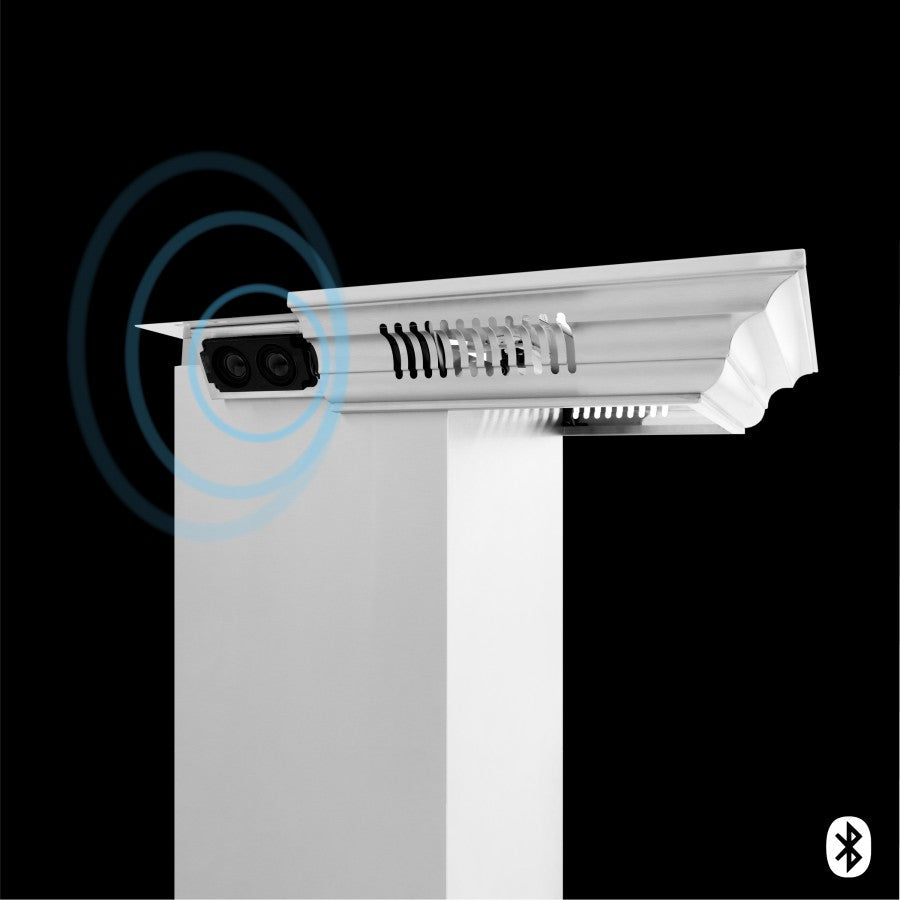

- Built-in CrownSound® Bluetooth speakers with wireless connectivity up to 50 ft
- Stainless steel construction for durability
- Dishwasher-safe stainless steel baffle filters
- Integrated LED lighting for improved visibility

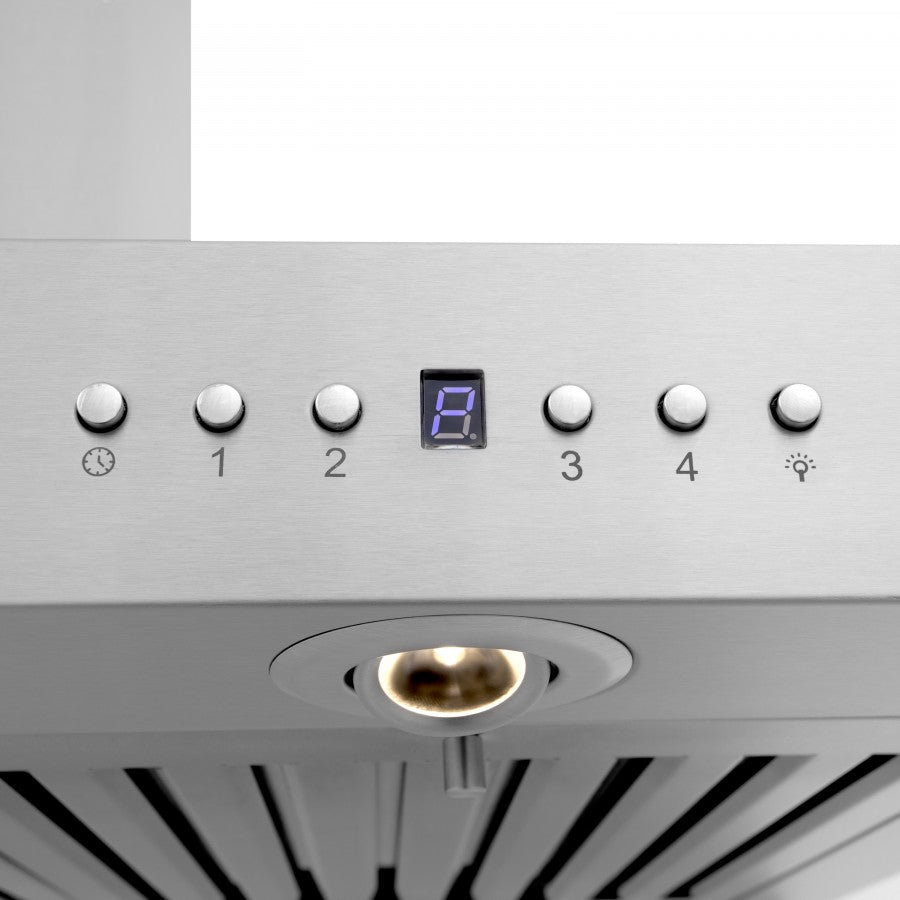

- Push button controls for fan and lighting adjustments
- Quiet operation with a maximum noise level of approximately 56 dB
- ETL and UL listed for safety and compliance
- Includes manufacturer parts warranty
Installation & Compatibility
- Ducted installation required for standard operation
- Optional ductless/recirculating configuration available (requires CF1 filters)

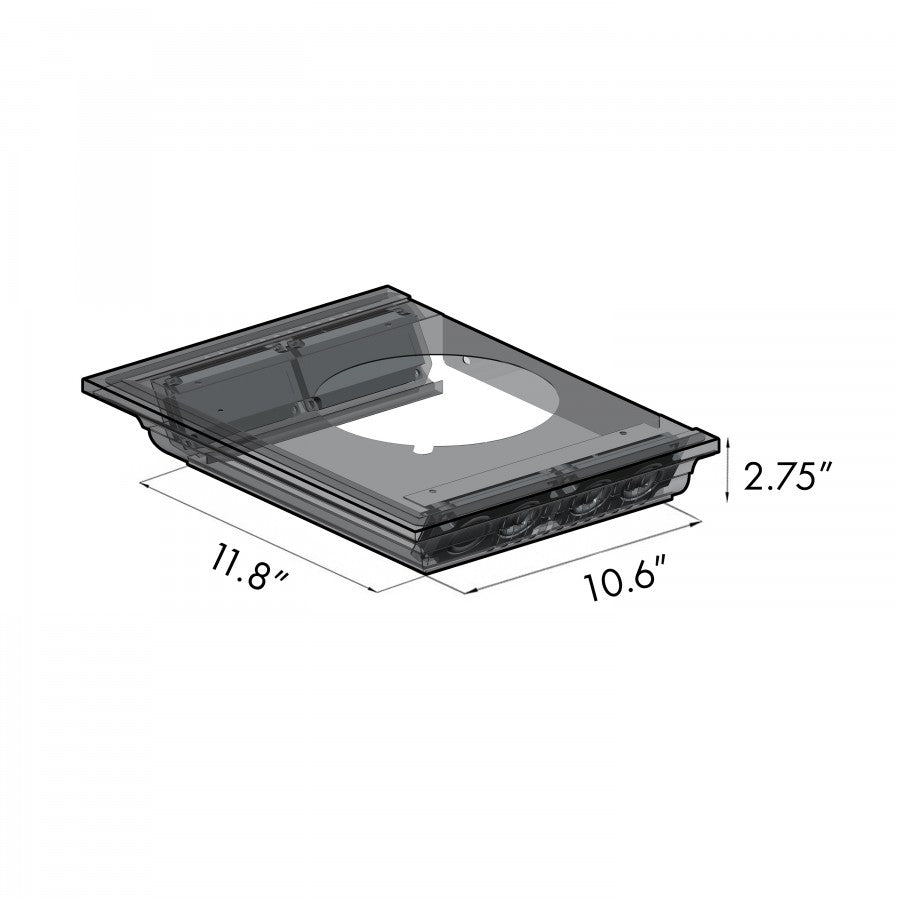

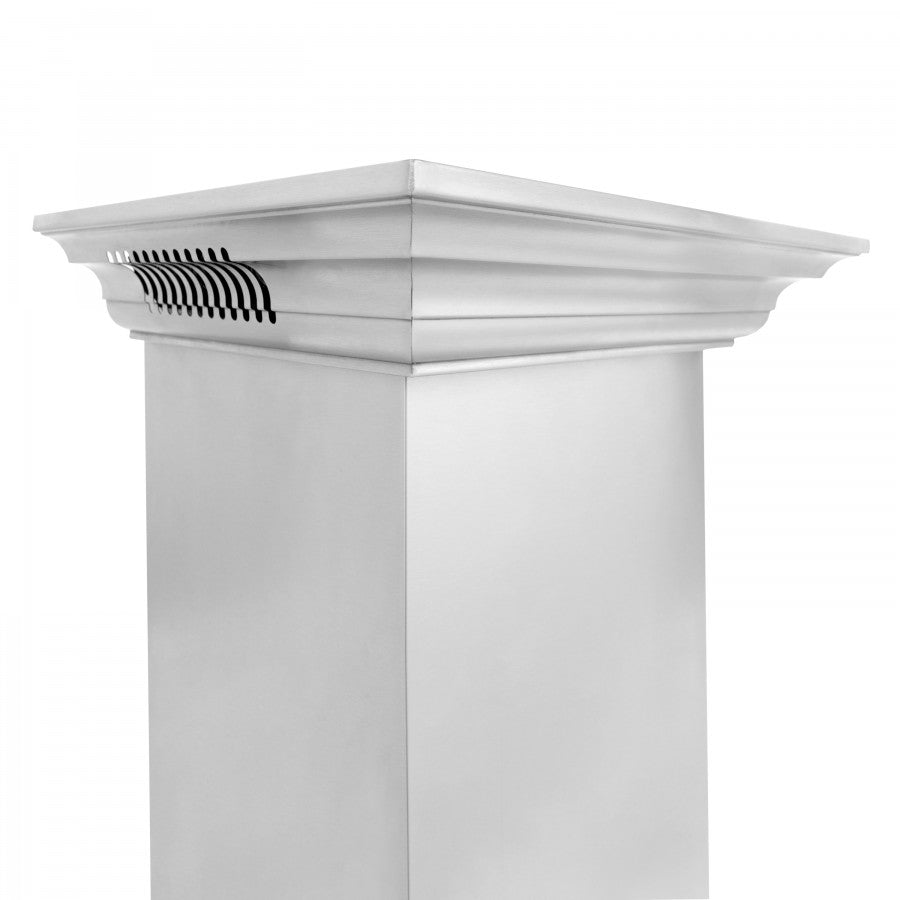

- Includes crown molding
- Not approved for outdoor use

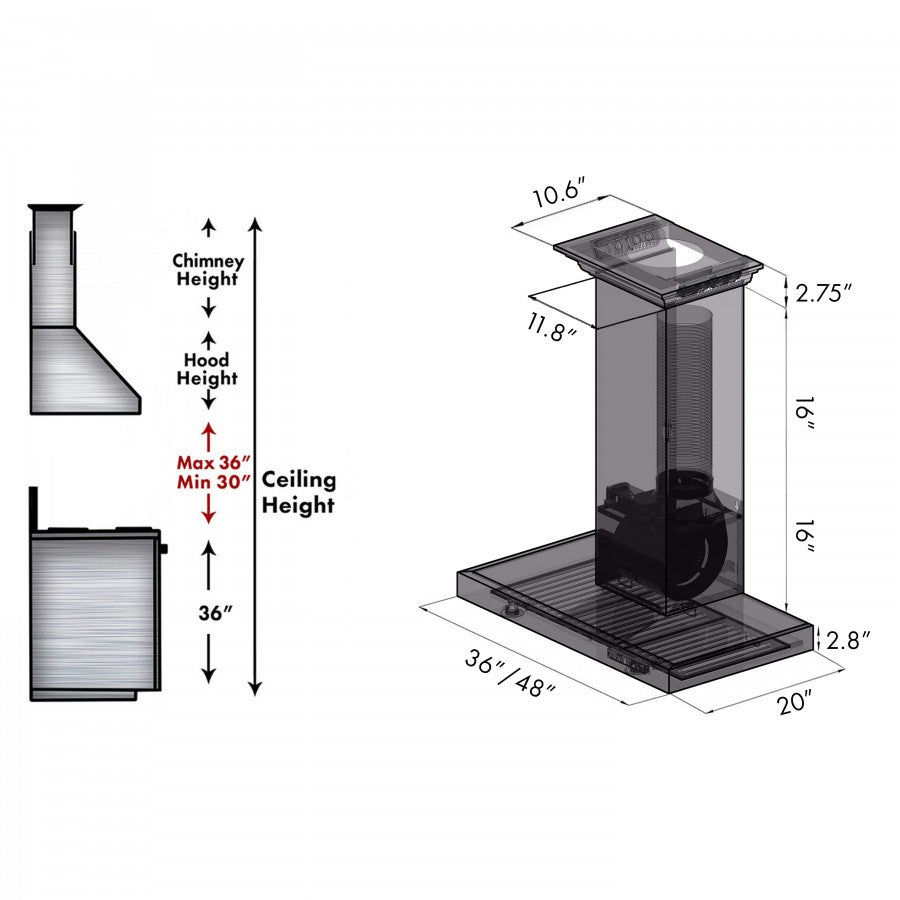

Ceiling Fit Options
- Less than 8 ft: Requires short kit (SK-KE/KECOM-30)
- 8 ft to 9 ft: No additional kit required
- 9 ft to 10 ft: Requires extension kit (1PCEXT-KE/KECOM-30)
- 10 ft to 12 ft: Requires extension kit (2PCEXT-KE/KECOM-30)
The unit includes telescoping chimney components to accommodate a range of ceiling heights.
Available Sizes
- 30 in – (KECRN-BT-30)
- 36 in – (KECRN-BT-36)
- 42 in – (KECRN-BT-42)
- 48 in – (KECRN-BT-48)
