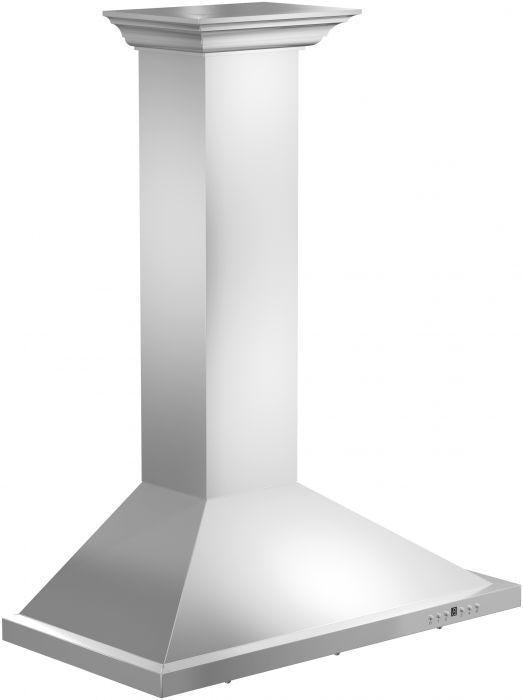

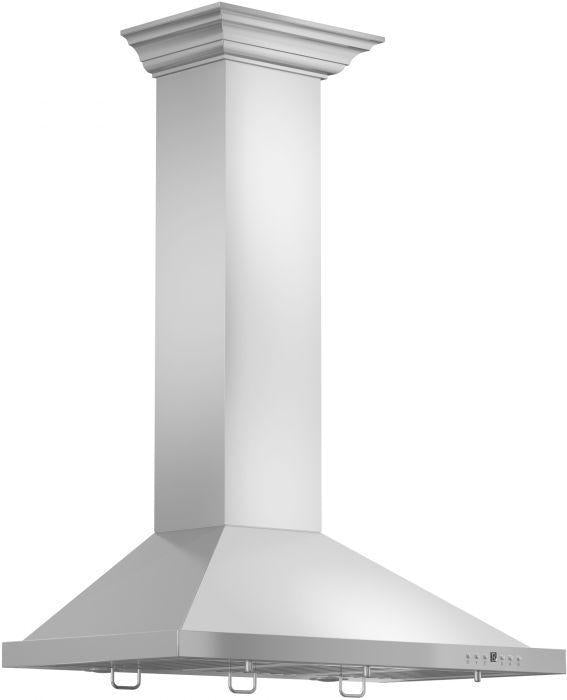

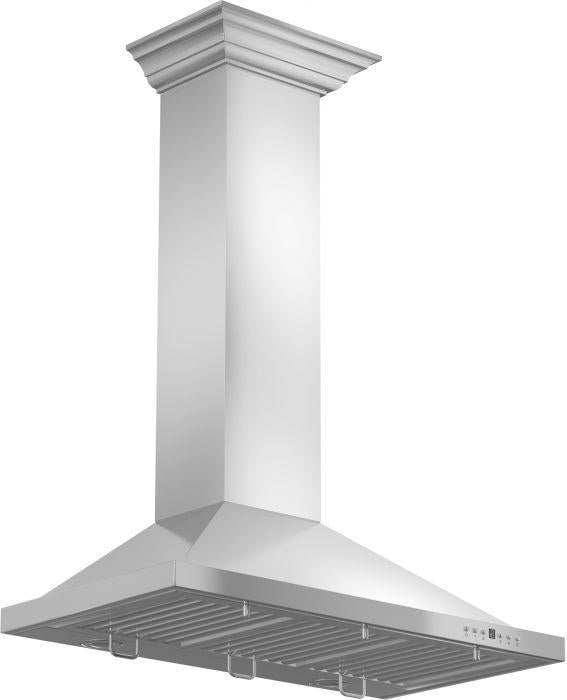

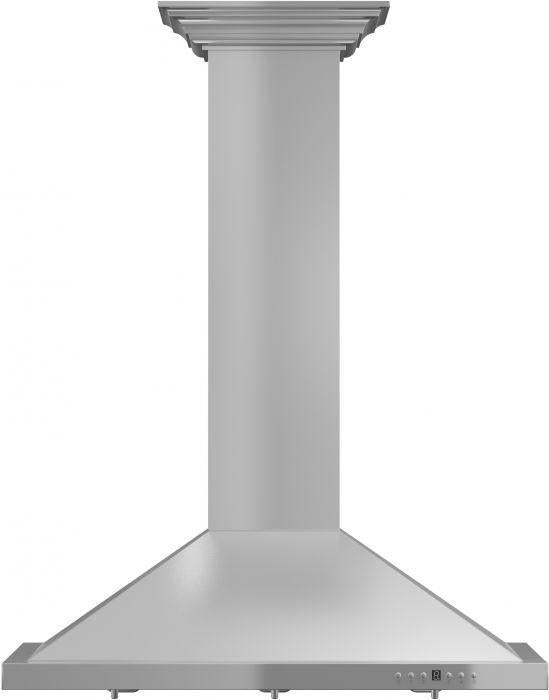

ZLINE 48 in Wall Mount Range Hood Stainless Steel Convertible Vent Crown Molding (KBCRN-48)

The ZLINE KBCRN-48 is a 48-inch wall mount range hood constructed from durable 430-grade stainless steel, designed to provide reliable ventilation and modern styling for residential kitchens. This model includes decorative crown molding and supports both ducted and ductless installation (charcoal filters required for recirculation).

Equipped with a 4-speed motor delivering up to 400 CFM airflow, this range hood efficiently removes smoke, grease, and cooking odors. Built-in LED lighting improves visibility over the cooktop, while stainless steel baffle filters help capture grease and are dishwasher-safe for easy cleaning.

The unit includes two telescoping chimney sections to accommodate standard ceiling heights, with optional extension kits available for higher or lower ceilings.

Key Features:

• 48-Inch Wall Mount Design – Suitable for large cooking surfaces

• 430 Stainless Steel Construction – Durable and corrosion-resistant

• Convertible Ventilation – Supports ducted or ductless (requires CF1 charcoal filters)

• 400 CFM Motor – 4-speed fan for effective air circulation

• LED Lighting – Energy-efficient illumination for the cooking area

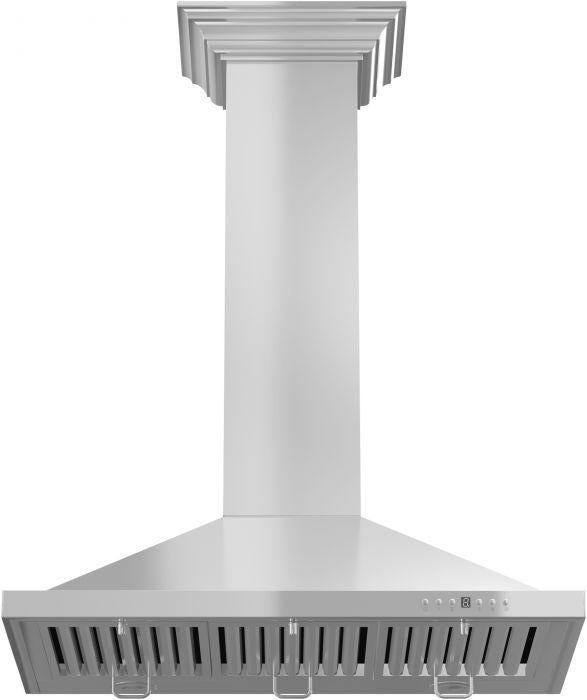

• Baffle Filters – Dishwasher-safe stainless steel filters for easy maintenance

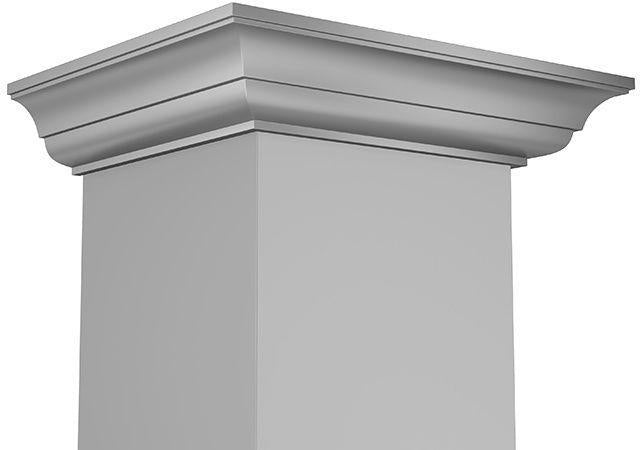

• Crown Molding Included – CM6-KB/KL2/KL3 for enhanced design

• Quiet Operation – Low noise levels across all fan speeds

• LCD Control Panel – Includes timer and delayed auto shut-off function

• Flexible Installation – Telescoping chimney fits 8–9 ft ceilings; extensions available

Specifications

• Brand: ZLINE Kitchen and Bath

• Model: KBCRN-48

• Mount Type: Wall Mount

• Material: 430 Stainless Steel

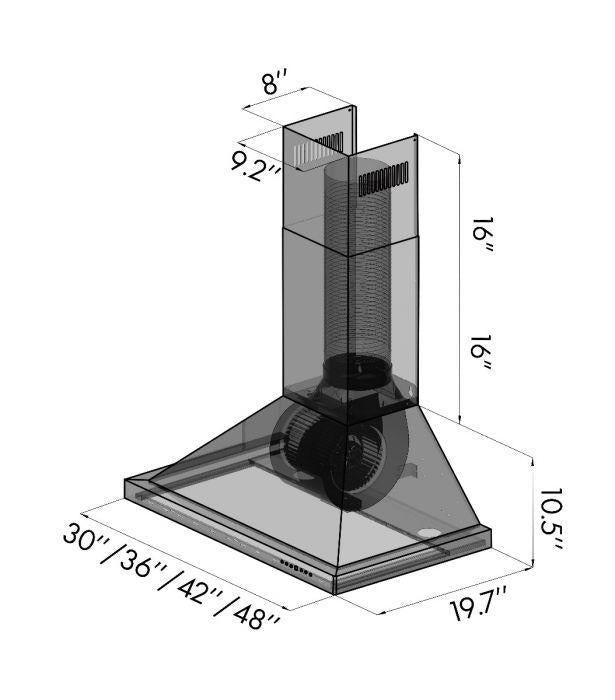

• Dimensions: 48" W x 19.7" D x 10.5" H

• Chimney Dimensions: 9.2" W x 8" D x 16" H (x2, telescoping)

• Airflow: 120 / 240 / 320 / 400 CFM

• Fan Speeds: 4-Speed

• Noise Level: 20 / 29 / 34 / 41 dB

• Lighting: 2 LED Lights (3W each)

• Control Type: LCD Panel with Timer & Auto Shutoff

• Venting Size: 6" outlet with backdraft damper

• Voltage: 110V / 60Hz

• Certifications: ETL Listed

• Warranty: 3-Year Parts Warranty

Installation & Compatibility

• Ceiling Compatibility:

  • 8–9 ft: Standard fit

  • <8 ft: Requires short kit (SK-KB/KL2/KL3)

  • 9–10 ft: Requires 1-piece extension

  • 10–12 ft: Requires 2-piece extension

• Ductless Option: Requires CF1 charcoal filters (sold separately)

Additional Information

• Not certified for outdoor use

• Also available in 30", 36", and 42" sizes
