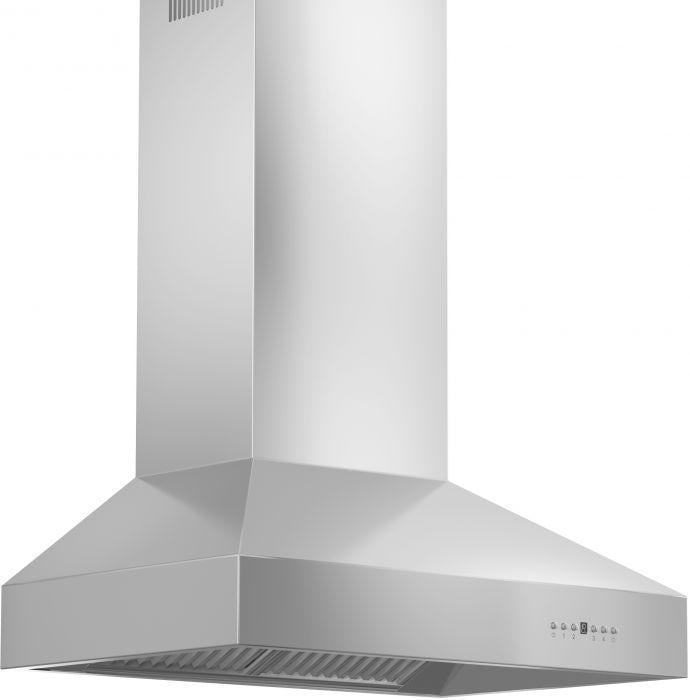

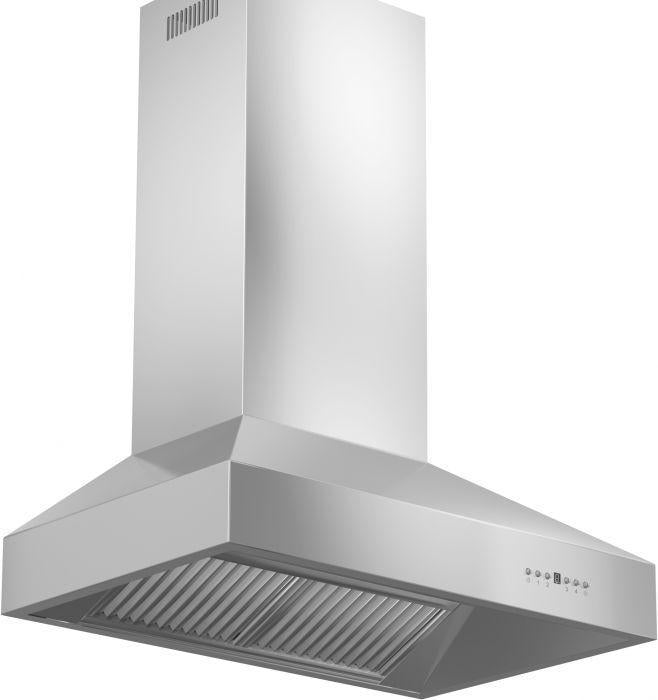

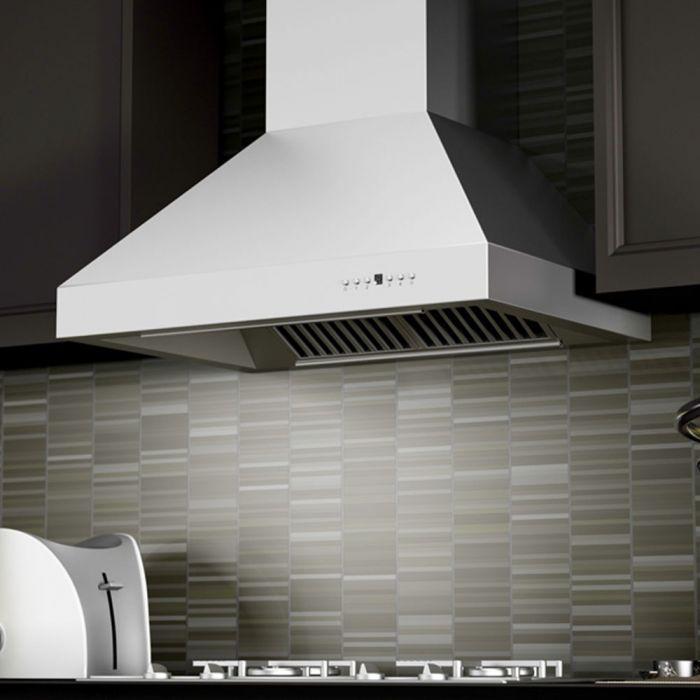

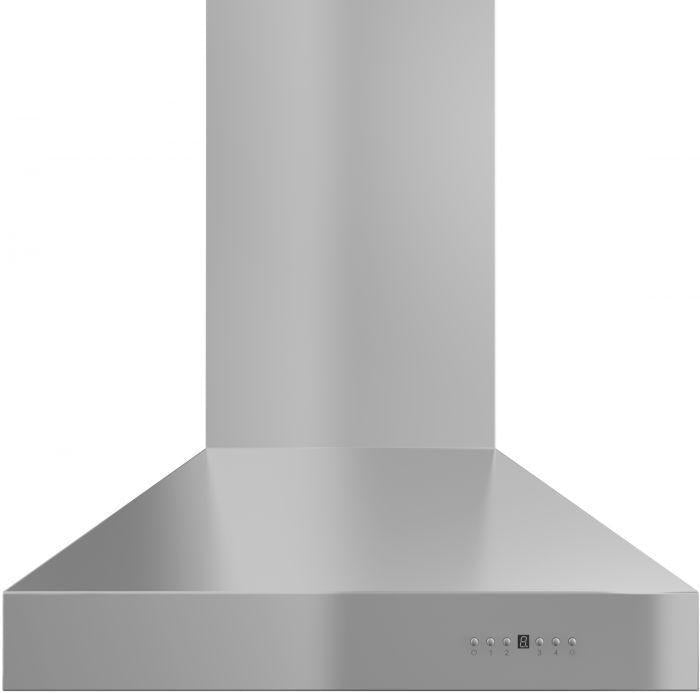

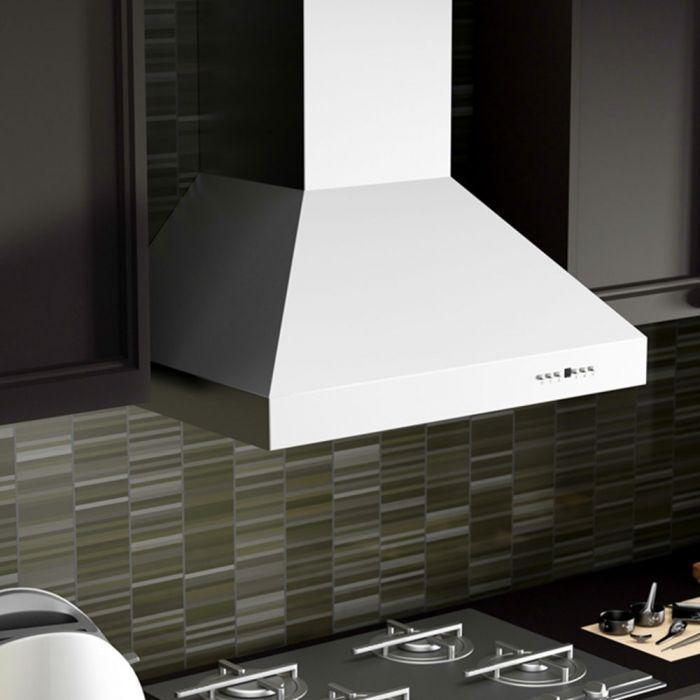

The ZLINE 48 in. Wall Mount Range Hood (667-48) is designed for effective kitchen ventilation with a durable stainless steel construction and modern wall-mounted design. Built from 430-grade stainless steel, this range hood offers reliable performance and long-lasting durability for everyday cooking environments.

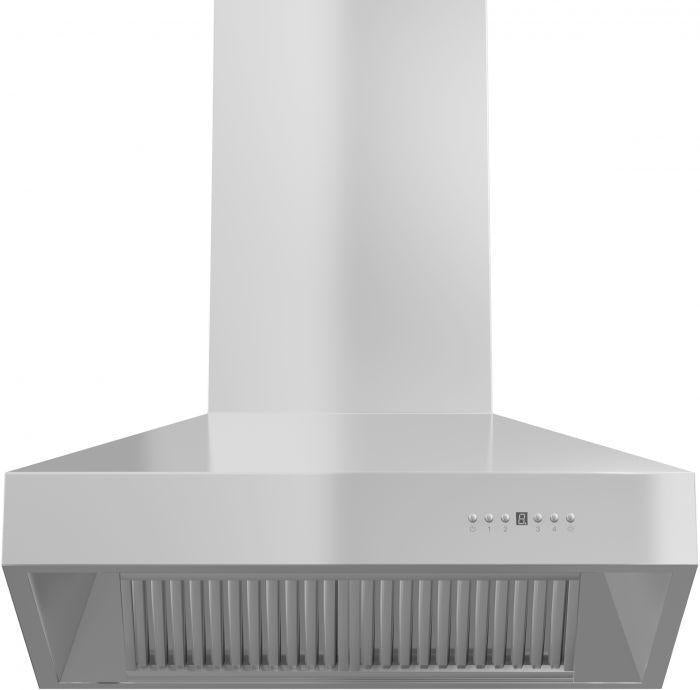

Equipped with a high-performance 4-speed motor, this unit delivers airflow up to 700 CFM to help remove smoke, grease, and cooking odors efficiently. Integrated LED lighting provides clear illumination over the cooking surface, while stainless steel baffle filters capture grease and are dishwasher-safe for easy maintenance.
The telescoping chimney system allows flexible installation for standard ceiling heights, with additional extension kits available for higher or lower ceilings. This model is designed for ducted (external venting) installation only.
Key Features:
-
High Airflow Performance: Up to 700 CFM for effective ventilation
-
4-Speed Fan Control: Adjustable settings for different cooking needs
-
Durable Construction: 430-grade stainless steel for long-term use
-
Dishwasher-Safe Baffle Filters: Easy cleaning and maintenance
-
LED Lighting: Energy-efficient illumination of the cooktop
-
Wall Mount Design: Suitable for a wide range of kitchen layouts
-
Quiet Operation: Maximum noise level up to 56 dB
-
Ducted Venting Only: Not compatible with recirculation
-
Adjustable Chimney: Fits most ceilings (8 ft to 9 ft standard)
Specifications
-
Size: 48 in.
-

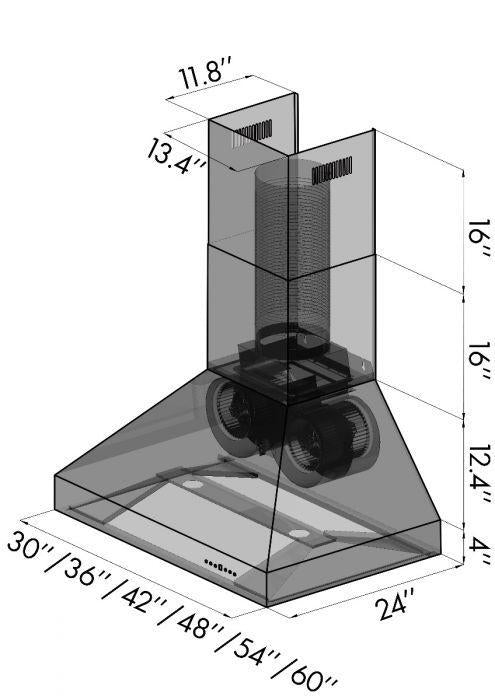

Dimensions: 48" W x 24" D x 16.375" H
-
Chimney Dimensions: 13.5" W x 11.75" D x 16" H (x2, telescoping)
-
Airflow: 280 / 460 / 670 / 700 CFM
-
Noise Level: 30 / 42 / 51 / 56 dB
-
Lighting: 2 LED lights (3W each)
-
Voltage: 110V / 60Hz
-
Motor: 700 CFM, 4-speed
-
Control Type: Push button with timer and auto shut-off
-
Venting Size: 8" duct outlet
-
Material: 430 stainless steel
-
Mount Type: Wall mount
-
Certifications: ETL & UL Listed
Installation & Compatibility
-
Venting Type: Ducted only (external venting required)
-
Ceiling Compatibility:
-
8–9 ft: Standard installation
-
<8 ft: Short kit required
-
9–12 ft: Extension kits required (sold separately)
-
-
Optional Accessories: Chimney extensions and crown moldings available separately
