ZLINE 48 in. Wall Mount Range Hood Ducted Stainless Steel Professional 687-48
ZLINE 48 in. Wall Mount Range Hood Ducted Stainless Steel Professional 687-48
Size Chart
| UK Size | US Size | Diameter (mm) | Circumference (mm) | Fit |
|---|---|---|---|---|
| J | 5 | 15.7 mm | 49.3 mm | Her |
| K | 5.5 | 16.1 mm | 50.6 mm | Her |
| L | 6 | 16.5 mm | 51.9 mm | Her |
| M | 6.5 | 16.9 mm | 53.1 mm | Her |
| N | 7 | 17.3 mm | 54.4 mm | Her |
| O | 7.5 | 17.7 mm | 55.7 mm | Her |
| P | 8 | 18.1 mm | 57.0 mm | Her |
| Q | 8.5 | 18.5 mm | 58.3 mm | His |
| R | 9 | 18.9 mm | 59.5 mm | His |
| S | 9.5 | 19.4 mm | 60.8 mm | His |
| T | 10 | 19.8 mm | 62.1 mm | His |
| U | 10.5 | 20.2 mm | 63.4 mm | His |
| V | 11 | 20.6 mm | 64.6 mm | His |
| W | 11.5 | 21.0 mm | 65.9 mm | His |
The ZLINE 687-48 is a 48-inch wall mount range hood designed for efficient ventilation and durable performance. Constructed from 430-grade stainless steel, this ducted range hood provides reliable air circulation for residential kitchens, including outdoor-approved installations.
This model features a 4-speed motor with a maximum airflow capacity of up to 700 CFM, helping to remove smoke, grease, and cooking odors effectively. Built-in LED lighting improves visibility over the cooking surface, while stainless steel baffle filters capture grease and are dishwasher-safe for easy maintenance.

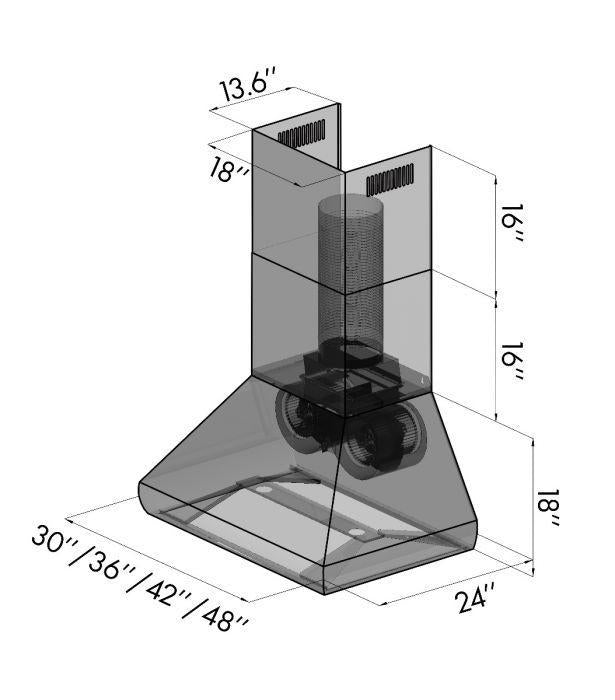

The unit includes telescoping chimney pieces to accommodate standard ceiling heights between 8 ft and 9 ft. Optional extension kits are available for higher or lower ceiling configurations.
Key Features:
- 48-Inch Wall Mount Design – Suitable for large cooking surfaces
- Up to 700 CFM Airflow – High-performance ventilation for heavy cooking
- 4-Speed Fan Control – Adjustable ventilation levels
- 430-Grade Stainless Steel Construction – Durable and corrosion-resistant
- Dishwasher-Safe Baffle Filters – Easy cleaning and maintenance
- Integrated LED Lighting – Enhanced visibility while cooking
- Quiet Operation – Maximum noise level approximately 56 dB
- Ducted Ventilation Only – Designed for external venting (no recirculation option)
- Outdoor Approved – Suitable for covered outdoor kitchen use
- Adjustable Chimney Included – Fits ceilings 8 ft to 9 ft (extensions available)
Additional Information
-
Ceiling Compatibility:
- < 8 ft: Requires Short Kit (SK-687)
- 9 ft – 10 ft: Requires Extension (1PCEXT-687)
- 10 ft – 12 ft: Requires Extension (2PCEXT-687)
- Compatible Crown Moldings: CM1-687, CM2-687, CM3-687, CM4-687, CM5-687
- Also Available Sizes: 30", 36", 42"
