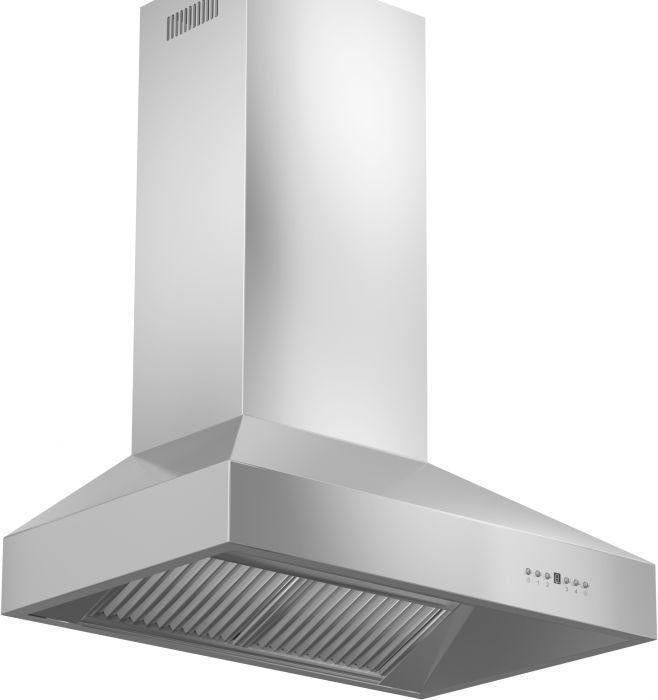

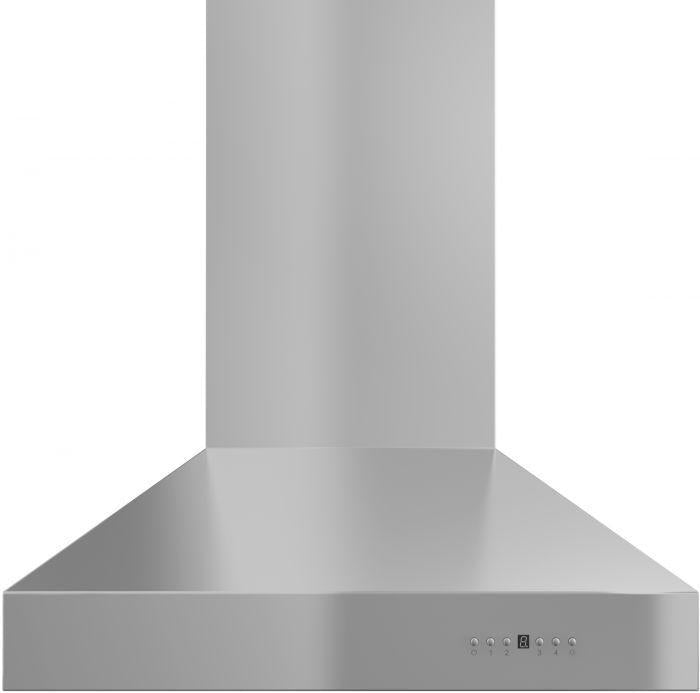

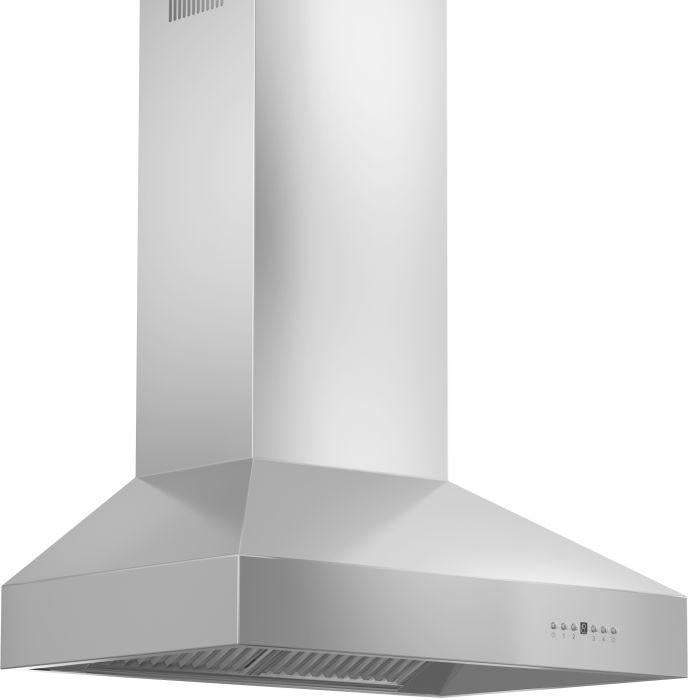

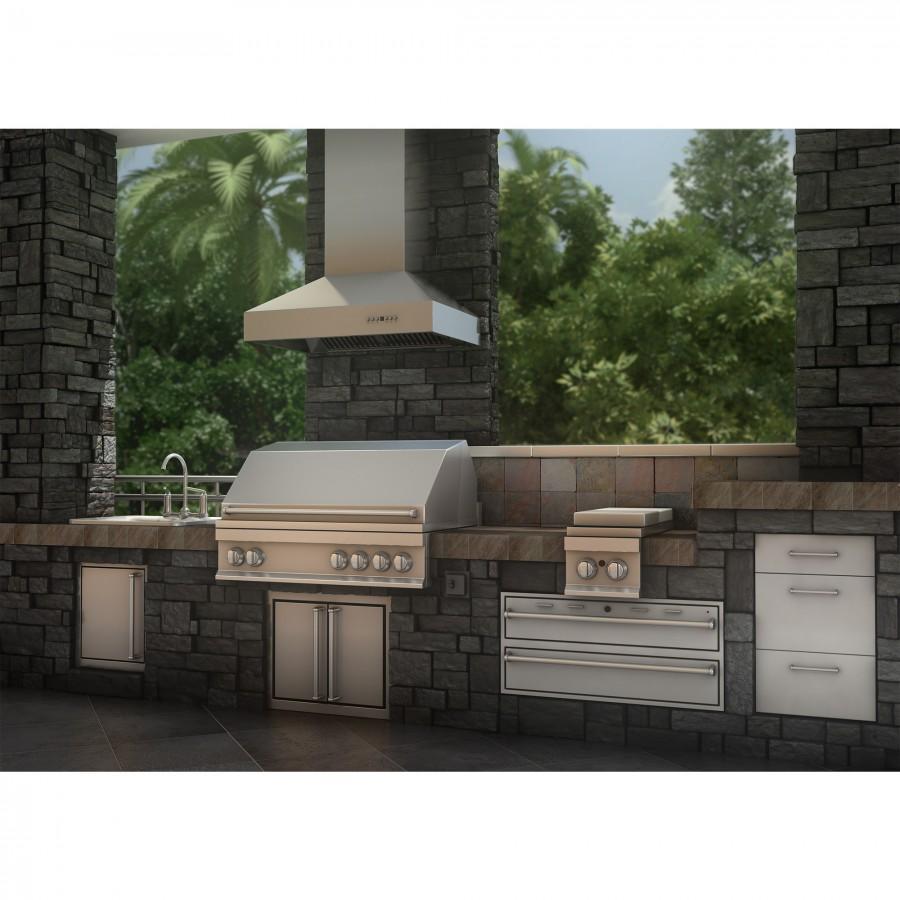

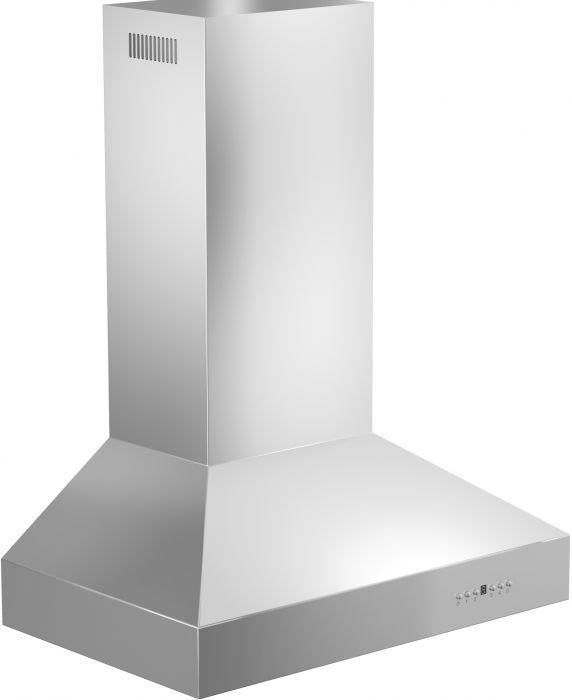

The ZLINE 48-inch Outdoor Wall Mount Range Hood (697-304-48) is designed for high-performance ventilation in outdoor cooking environments. Constructed from durable 304-grade stainless steel, this range hood is built to withstand outdoor conditions while maintaining long-lasting performance and a professional appearance.
This ducted range hood delivers efficient air circulation with a powerful 4-speed motor, offering up to 700 CFM airflow to effectively remove smoke, grease, and odors from outdoor cooking areas. The unit includes stainless steel baffle filters and integrated LED lighting to enhance visibility while cooking.

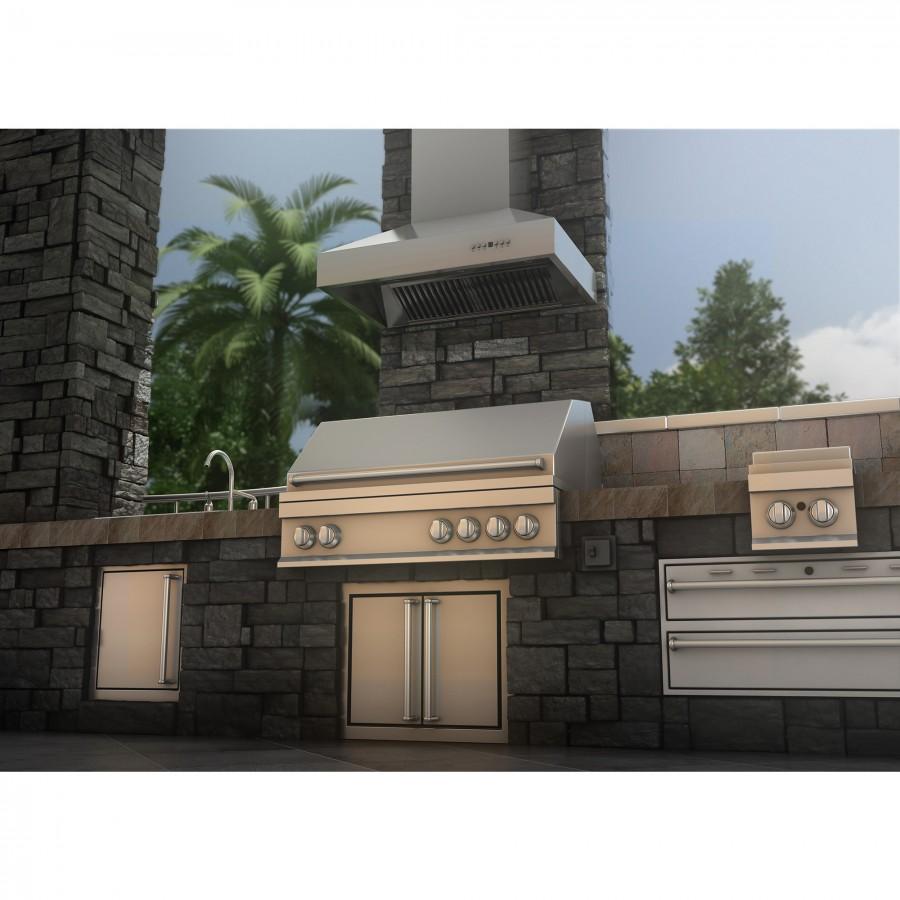

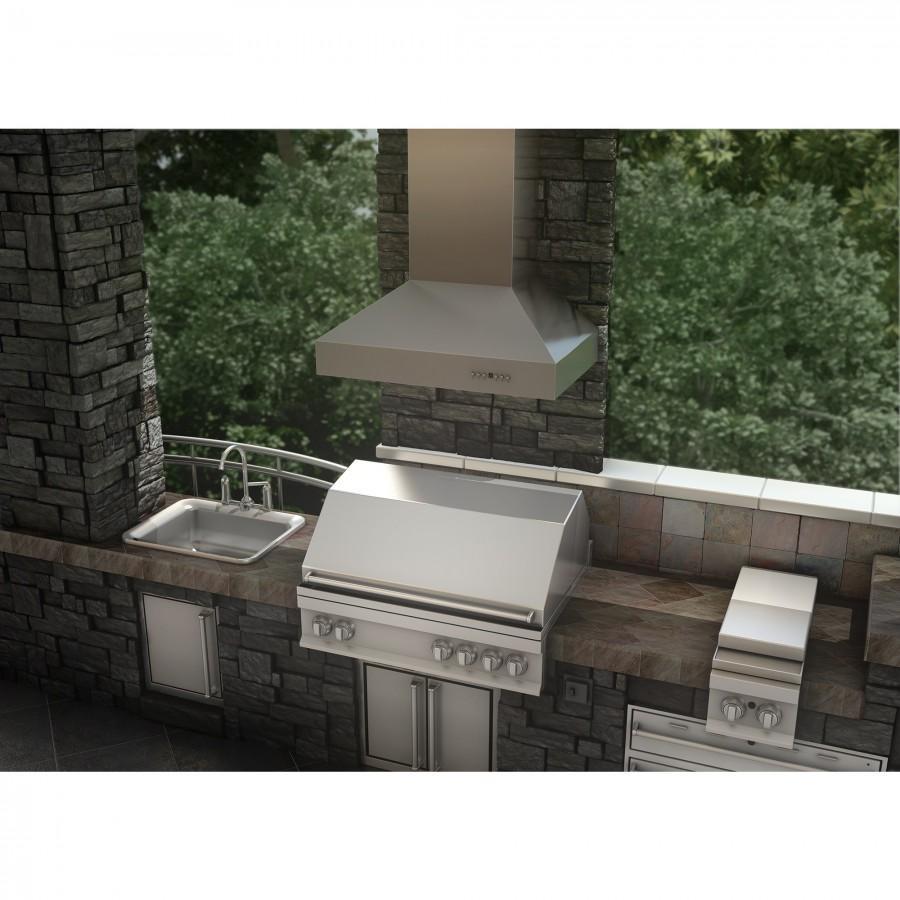

The adjustable chimney system allows installation in a variety of ceiling heights, making it suitable for most outdoor kitchen setups.
Key Features:
-
Outdoor Approved Construction: Made from 304-grade stainless steel for durability in outdoor environments
-
Powerful Ventilation: 4-speed motor with up to 700 CFM airflow
-
Ducted Ventilation Only: Designed for external venting (not compatible with recirculation)
-

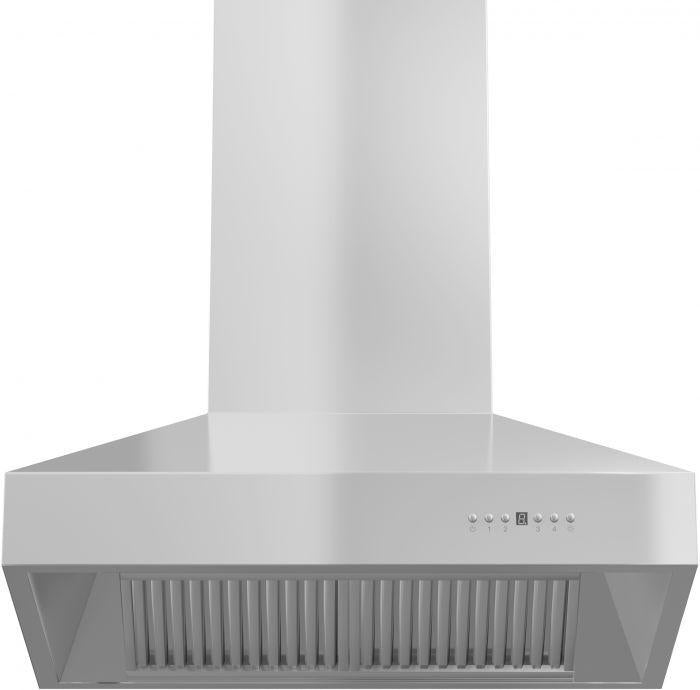

Efficient Filtration: Dishwasher-safe stainless steel baffle filters
-
LED Lighting: Built-in lights for improved cooking visibility
-

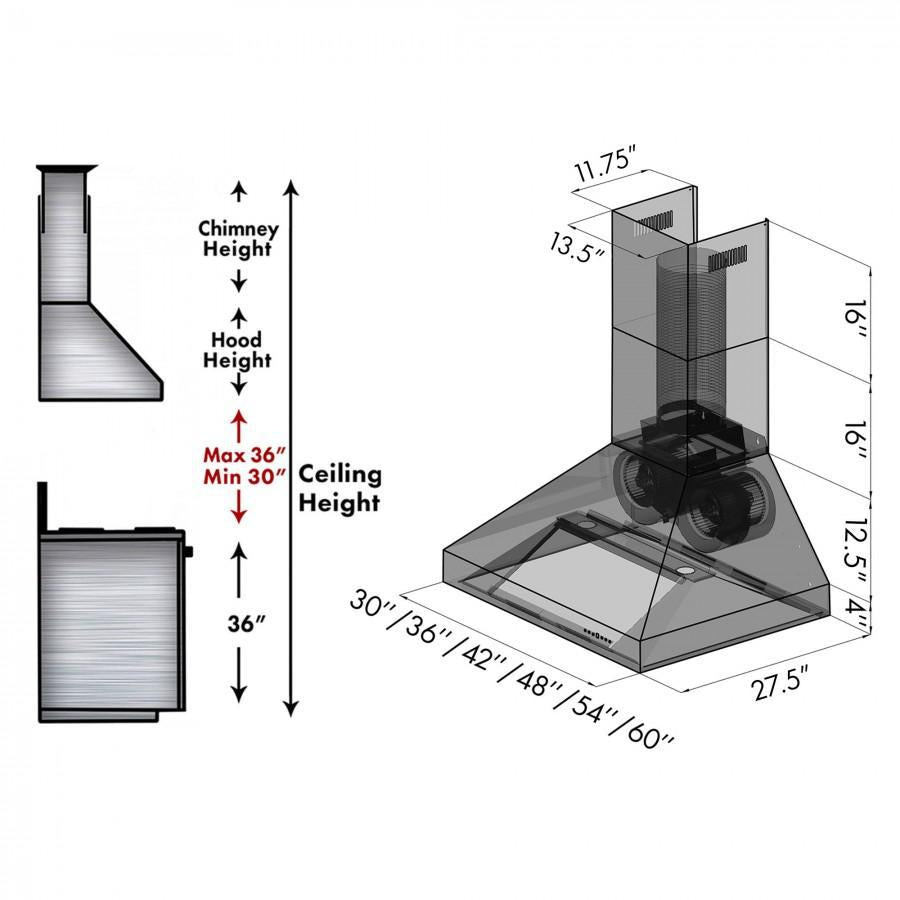

Adjustable Chimney: Includes telescoping chimney pieces for ceilings between 8 ft. and 9 ft.
Installation & Compatibility
-
Suitable for outdoor use (certified)
-

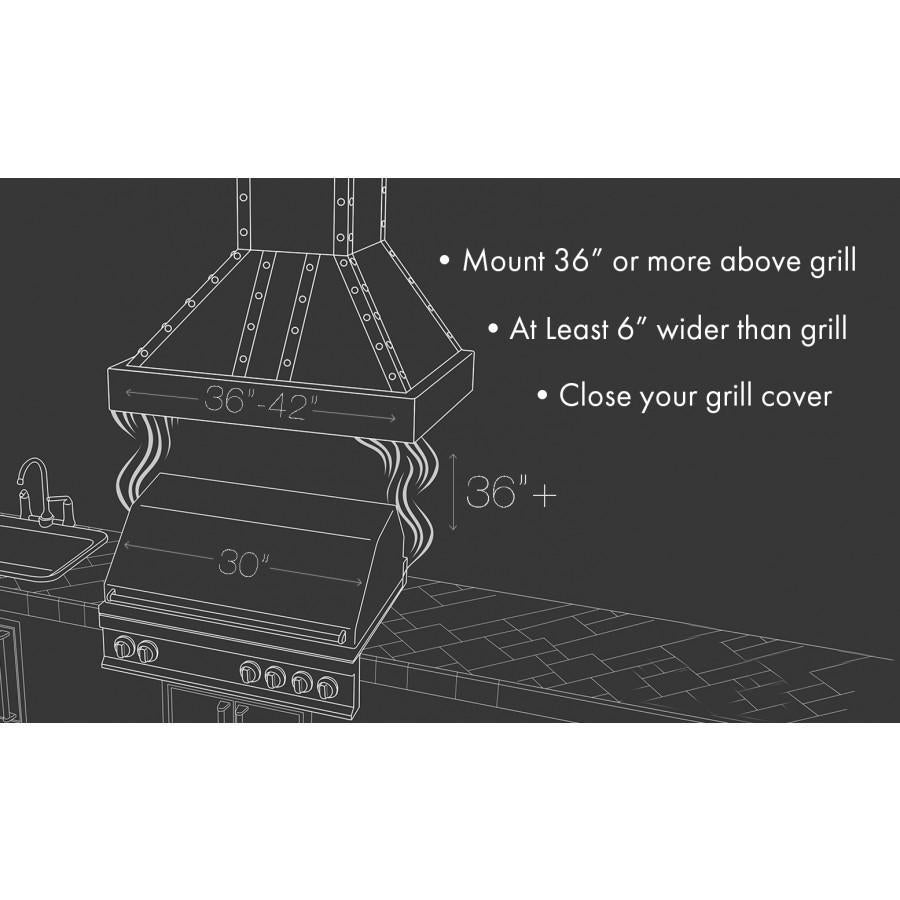

Recommended installation height: minimum 36 inches above cooking surface
-
Compatible with extension kits for ceilings above 9 ft. (sold separately)
-
Short kit required for ceilings below 8 ft. (sold separately)
Available Sizes
Also available in multiple sizes: 30", 36", 42", 54", and 60"
Additional Information
-
Maximum noise level: approximately 56 dB at highest speed
-
Includes required installation components
-
Ships fully assembled and ready for installation
