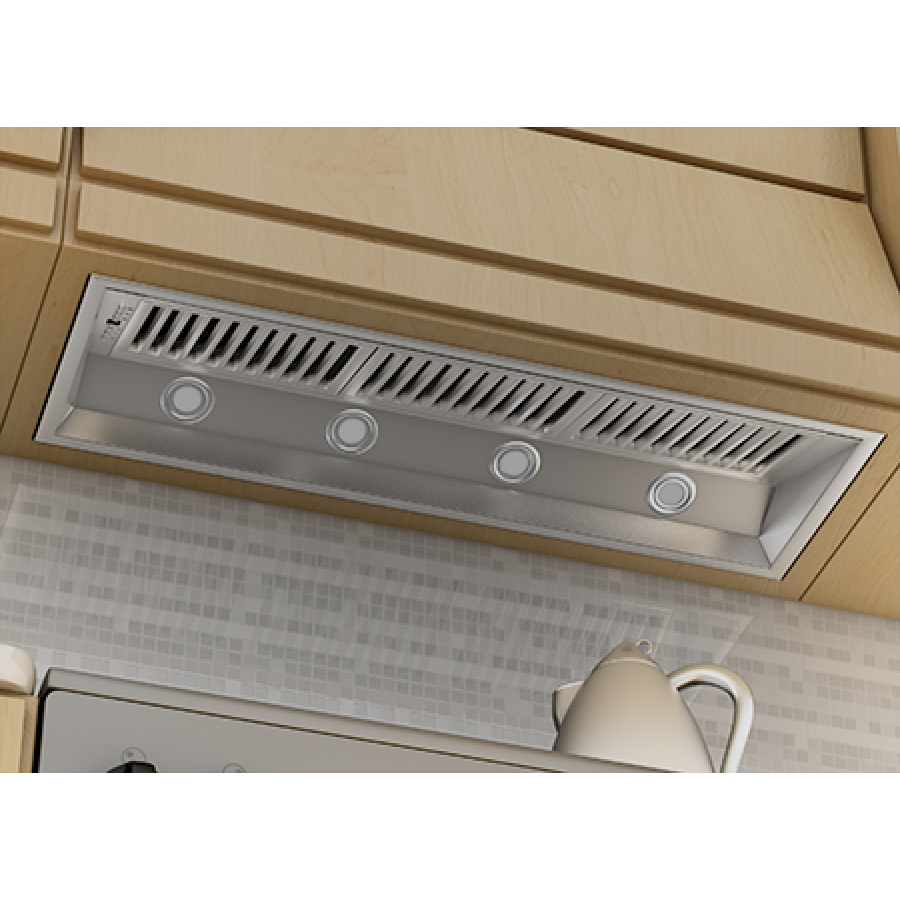

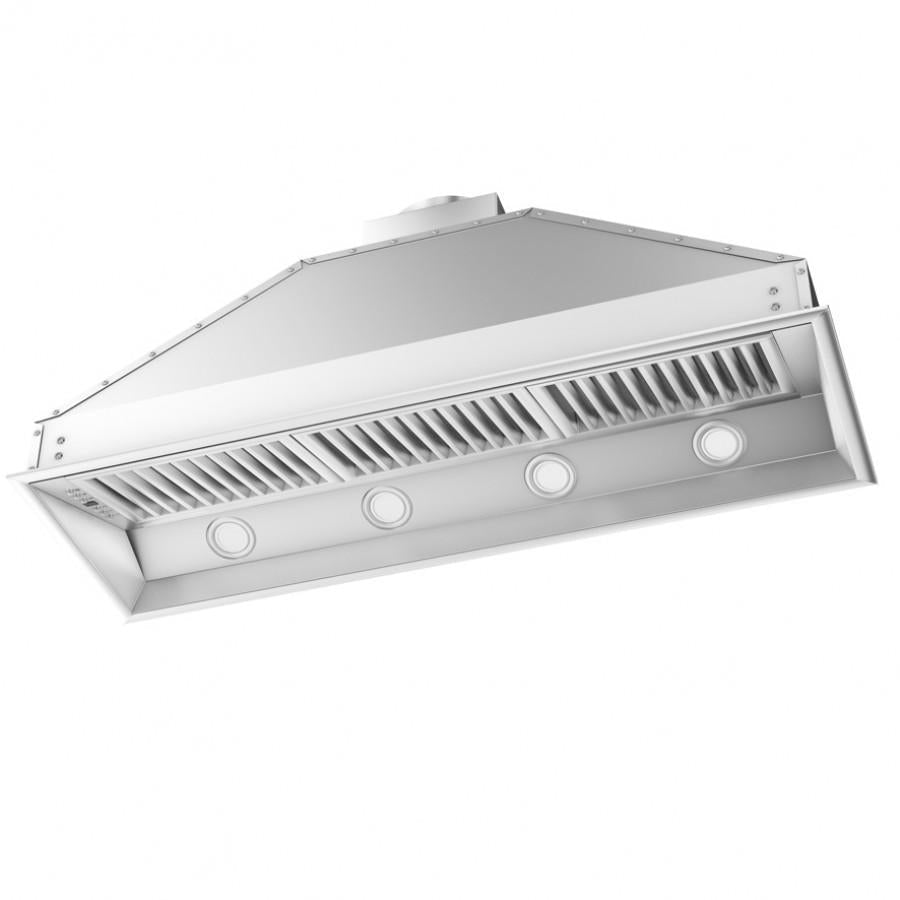

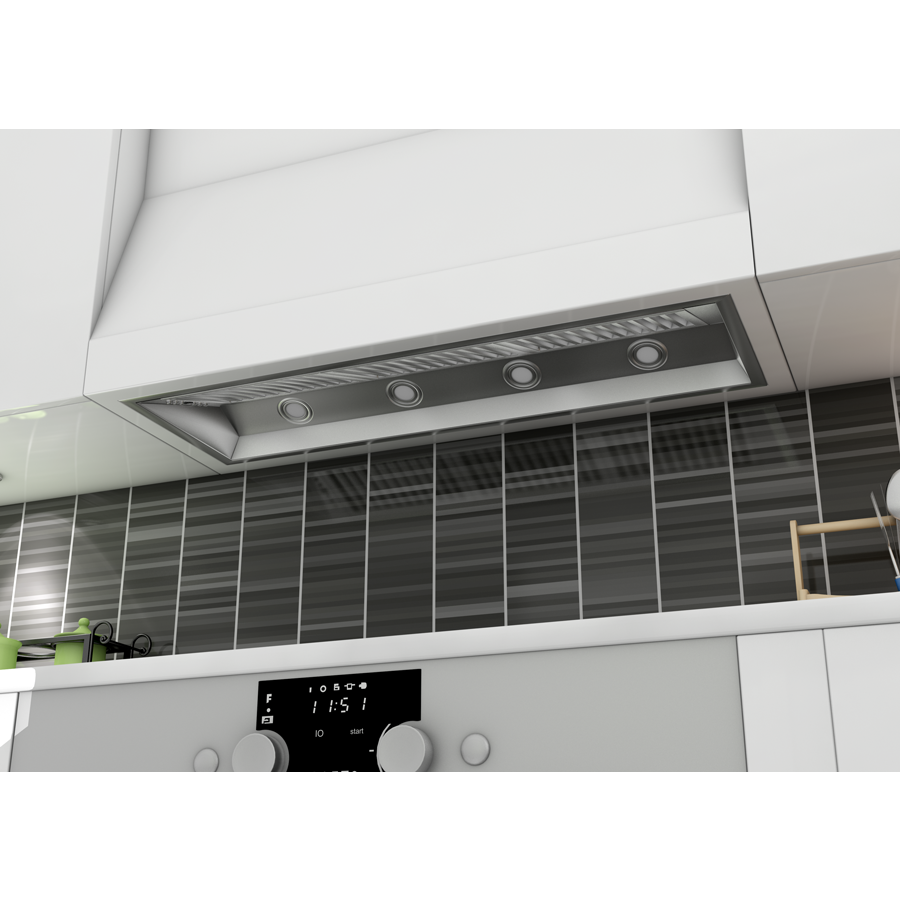

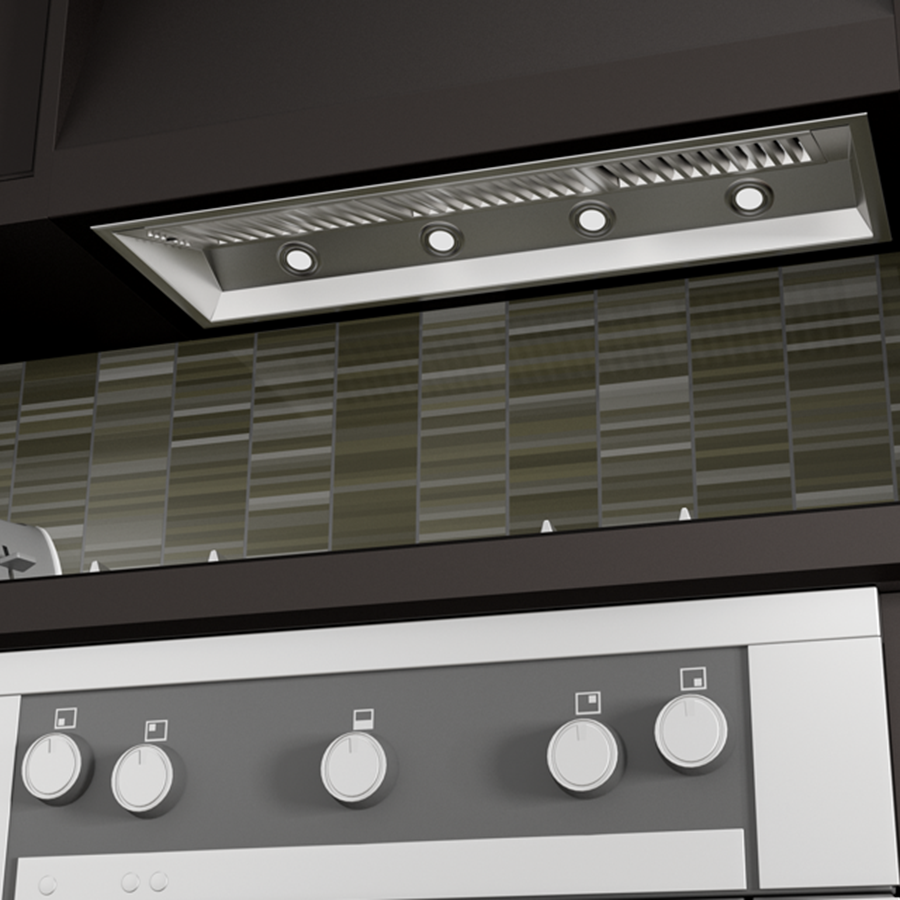

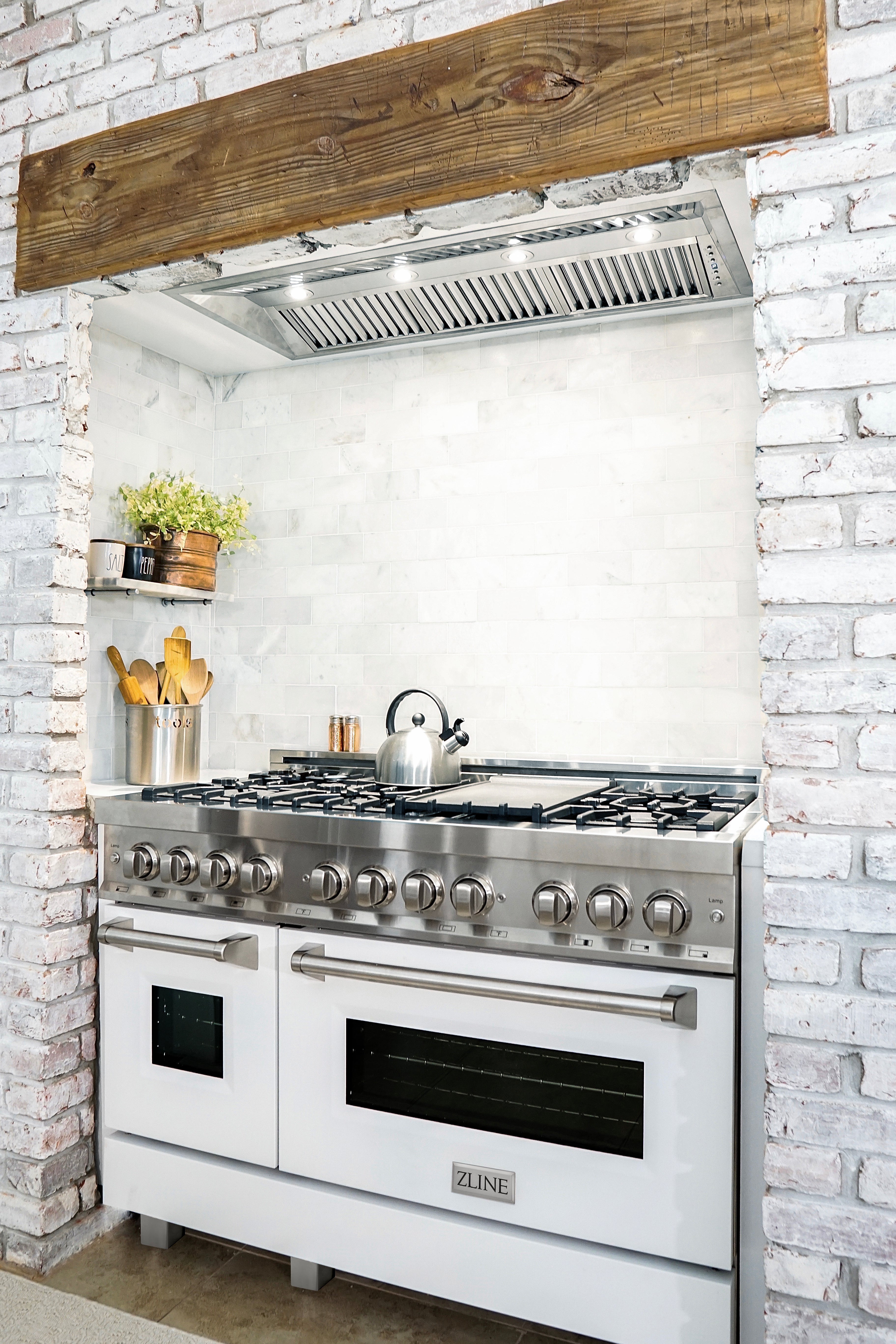

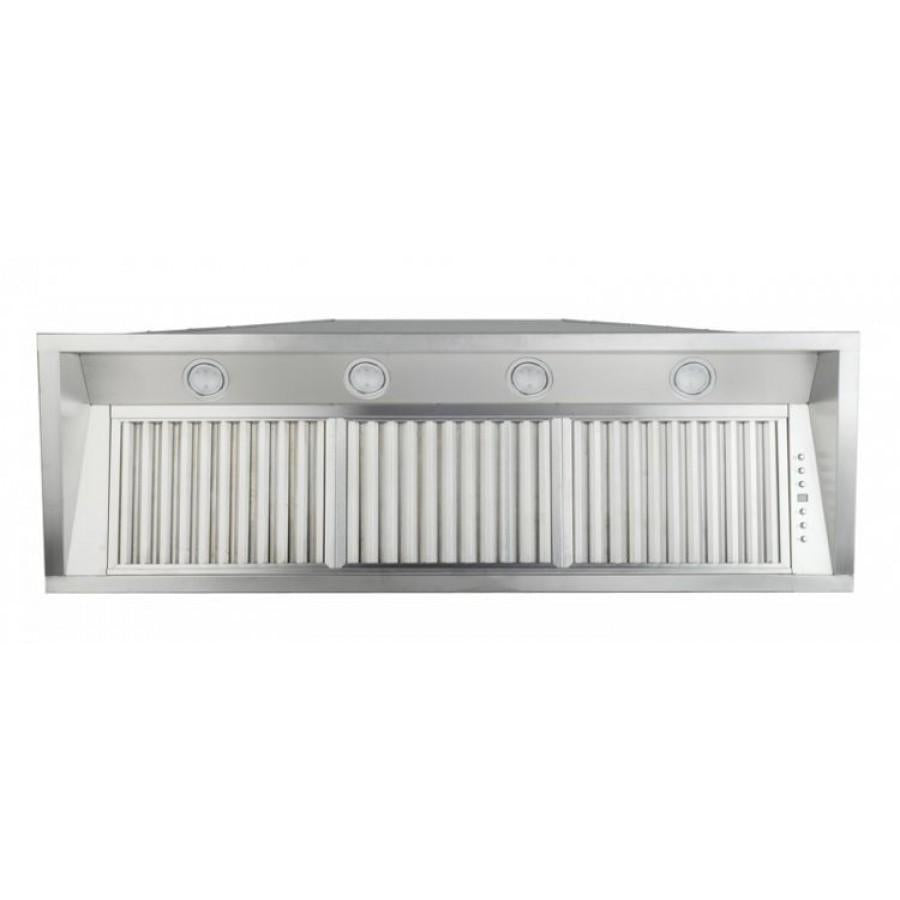

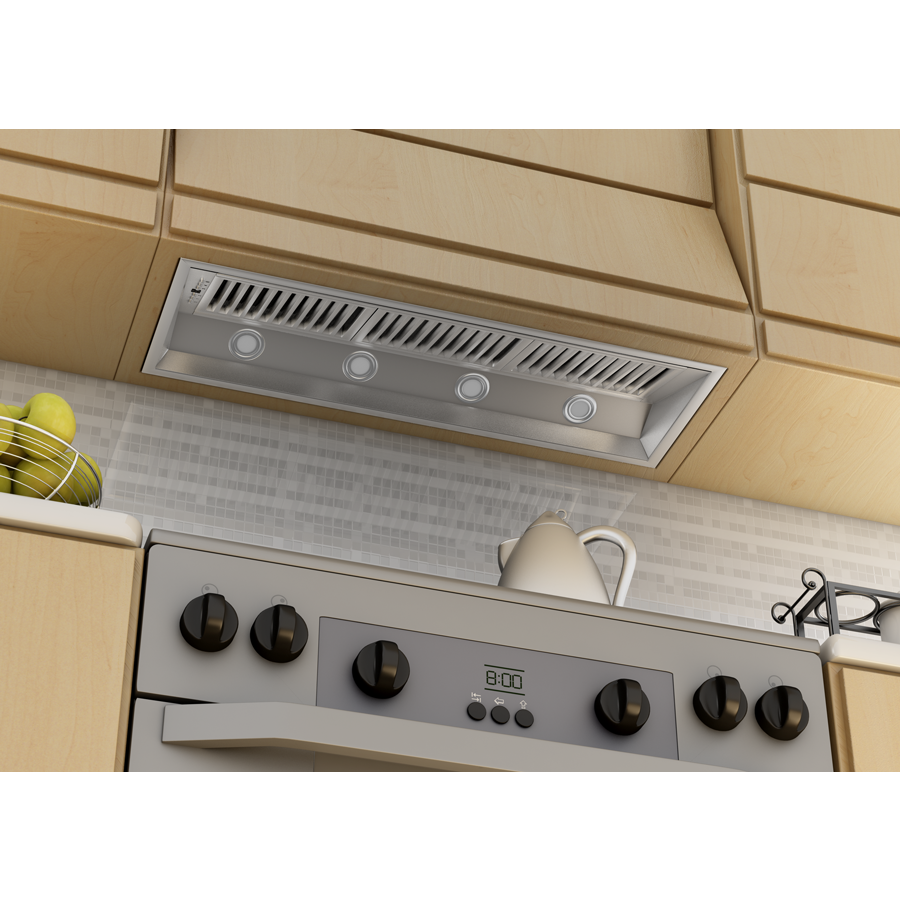

The ZLINE 698-46 Range Hood Insert is a 46-inch built-in ventilation solution designed for wall mount hood installations. Constructed from durable 430-grade stainless steel, this range hood insert offers reliable performance and a clean, professional appearance suitable for modern kitchens.
A high-performance dual motor delivers up to 700 CFM airflow across four adjustable speed settings, effectively removing smoke, grease, and cooking odors. Integrated LED lighting provides clear illumination over the cooking surface, while stainless steel baffle filters help capture grease and are dishwasher-safe for easy maintenance.
This model is designed for ducted installation and is ETL listed for safety and performance compliance.
Key Features:-
700 CFM Dual Motor Ventilation – Efficient airflow for removing smoke, steam, and odors
-
4-Speed Fan Control – Adjustable speeds (280/460/670/700 CFM) for different cooking needs
-
Stainless Steel Construction – Made from 430-grade stainless steel for durability and corrosion resistance
-
Dishwasher-Safe Baffle Filters – Easy-to-clean filters for effective grease capture
-
LED Lighting – Four directional 3W LED lights for improved cooktop visibility
-
Low Noise Operation – Operates between 30–56 dB depending on speed
-
Built-in Control Panel – LCD display with timer and delayed auto shut-off function
-
Ducted Venting Only – Designed for vented installation (no recirculation option)
-
ETL Listed – Certified for safety and performance
-
Brand: ZLINE Kitchen and Bath
-
Model: 698-46
-
Mount Type: Range Hood Insert (Wall Mount Application)
-
Dimensions: 46" W x 18" D x 14.2" H
-
Material: 430 Stainless Steel
-
Airflow: 280 / 460 / 670 / 700 CFM
-
Noise Level: 30 / 42 / 51 / 56 dB
-
Lighting: 4 Directional LED Lights (3W)
-
Control Type: LCD Panel with Timer and Delayed Shutoff
-
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
-
Venting Size: 8" Outlet (Transition Included)
-
Voltage: 110V / 60Hz
-
Warranty: 3-Year Parts Warranty
-
Certifications: ETL Listed
-
Designed for ducted installation only (no recirculation option)
-
Compatible with multiple size options (28", 34", 40", 46")
-
Suitable for residential indoor kitchen use
