ZLINE 36 Inch Under Cabinet Range Hood Stainless Steel 4-Speed 400 CFM (527-36)
ZLINE 36 Inch Under Cabinet Range Hood Stainless Steel 4-Speed 400 CFM (527-36)
Size Chart
| UK Size | US Size | Diameter (mm) | Circumference (mm) | Fit |
|---|---|---|---|---|
| J | 5 | 15.7 mm | 49.3 mm | Her |
| K | 5.5 | 16.1 mm | 50.6 mm | Her |
| L | 6 | 16.5 mm | 51.9 mm | Her |
| M | 6.5 | 16.9 mm | 53.1 mm | Her |
| N | 7 | 17.3 mm | 54.4 mm | Her |
| O | 7.5 | 17.7 mm | 55.7 mm | Her |
| P | 8 | 18.1 mm | 57.0 mm | Her |
| Q | 8.5 | 18.5 mm | 58.3 mm | His |
| R | 9 | 18.9 mm | 59.5 mm | His |
| S | 9.5 | 19.4 mm | 60.8 mm | His |
| T | 10 | 19.8 mm | 62.1 mm | His |
| U | 10.5 | 20.2 mm | 63.4 mm | His |
| V | 11 | 20.6 mm | 64.6 mm | His |
| W | 11.5 | 21.0 mm | 65.9 mm | His |

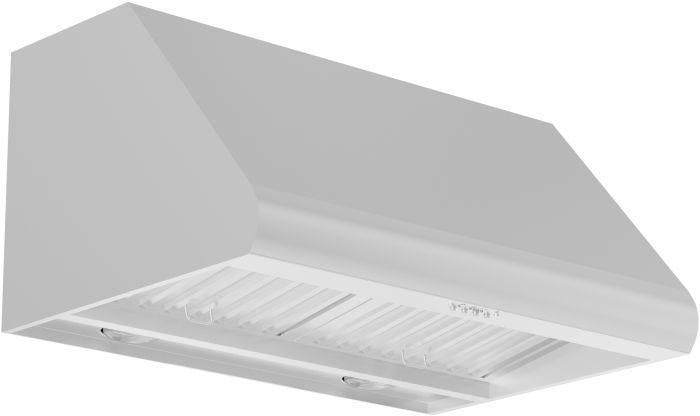

The ZLINE 36 Inch Under Cabinet Range Hood (527-36) is designed to provide efficient ventilation with a durable stainless steel construction. Built from 430-grade stainless steel, this range hood offers long-lasting performance and a modern design suitable for a variety of kitchen styles. The unit features a 4-speed motor with a maximum airflow capacity of up to 700 CFM, helping to remove smoke, grease, and cooking odors effectively.
This model supports both ducted and optional recirculating installation (requires RK-36 kit), along with an optional rear ducting configuration (requires 520/523/527-RDUCT attachment). It is ETL listed and includes the necessary components for standard installation.
Key Features:
- High-Performance Ventilation: 4-speed motor with up to 700 CFM airflow
- Durable Construction: 430-grade stainless steel for long-term use

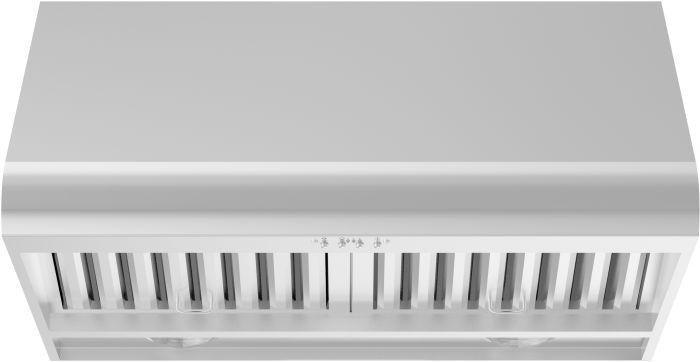

- Efficient Filtration: Dishwasher-safe stainless steel baffle filters
- Integrated Lighting: Built-in LED lights for improved visibility while cooking
- Flexible Installation: Supports ducted or recirculating setup (recirculation kit sold separately)
- Optional Rear Ducting: Compatible with rear venting (attachment required)
- Low Noise Operation: Maximum noise level of approximately 56 dB
Specifications

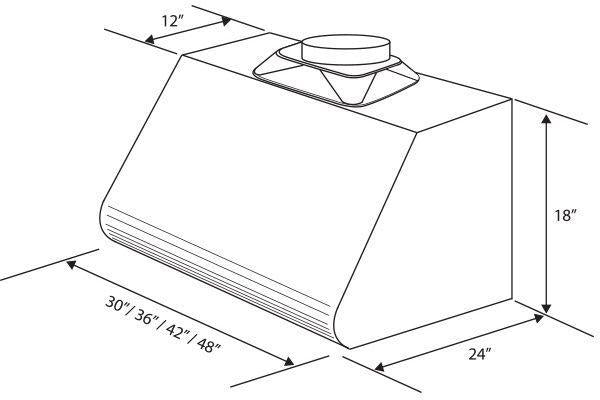

- Size: 36 Inch
- Installation Type: Under Cabinet
- Material: Stainless Steel (430-grade)
- Airflow Capacity: Up to 700 CFM
- Fan Speeds: 4-Speed
- Lighting: LED
- Filter Type: Stainless Steel Baffle Filters (Dishwasher Safe)
- Certification: ETL Listed
- Outdoor Use: Not suitable for outdoor installation
Compatibility & Options
- Ductless/Recirculating Option: Requires RK-36 kit (sold separately)
- Rear Ducting Option: Requires 520/523/527-RDUCT attachment
-
Chimney Extensions (Optional):
- 12" Extension: 520/523/527-36-1FTEXT
- 24" Extension: 520/523/527-36-2FTEXT
- 36" Extension: 520/523/527-36-3FTEXT
Available Sizes
Also available in 30", 42", 48", 54", and 60" models
