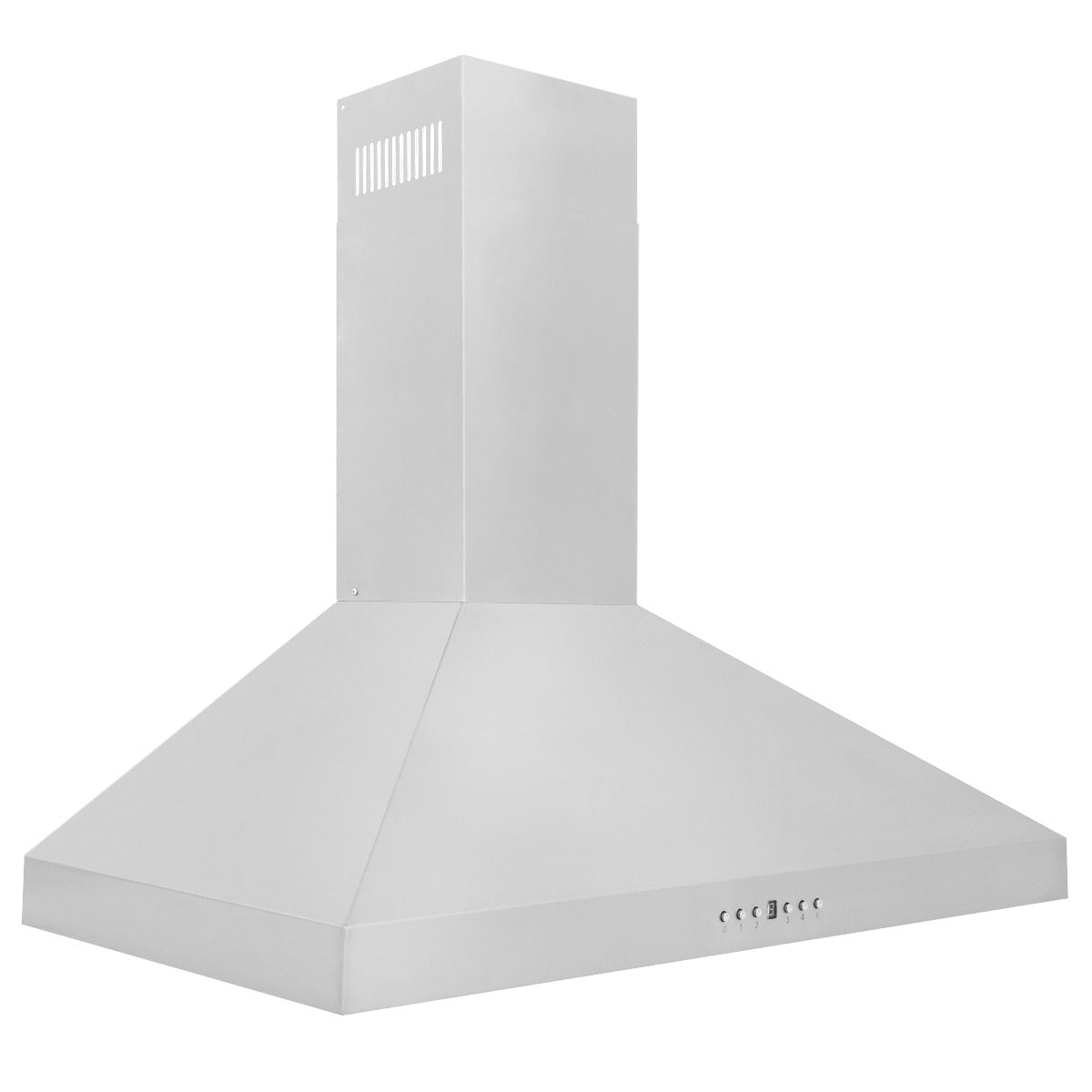

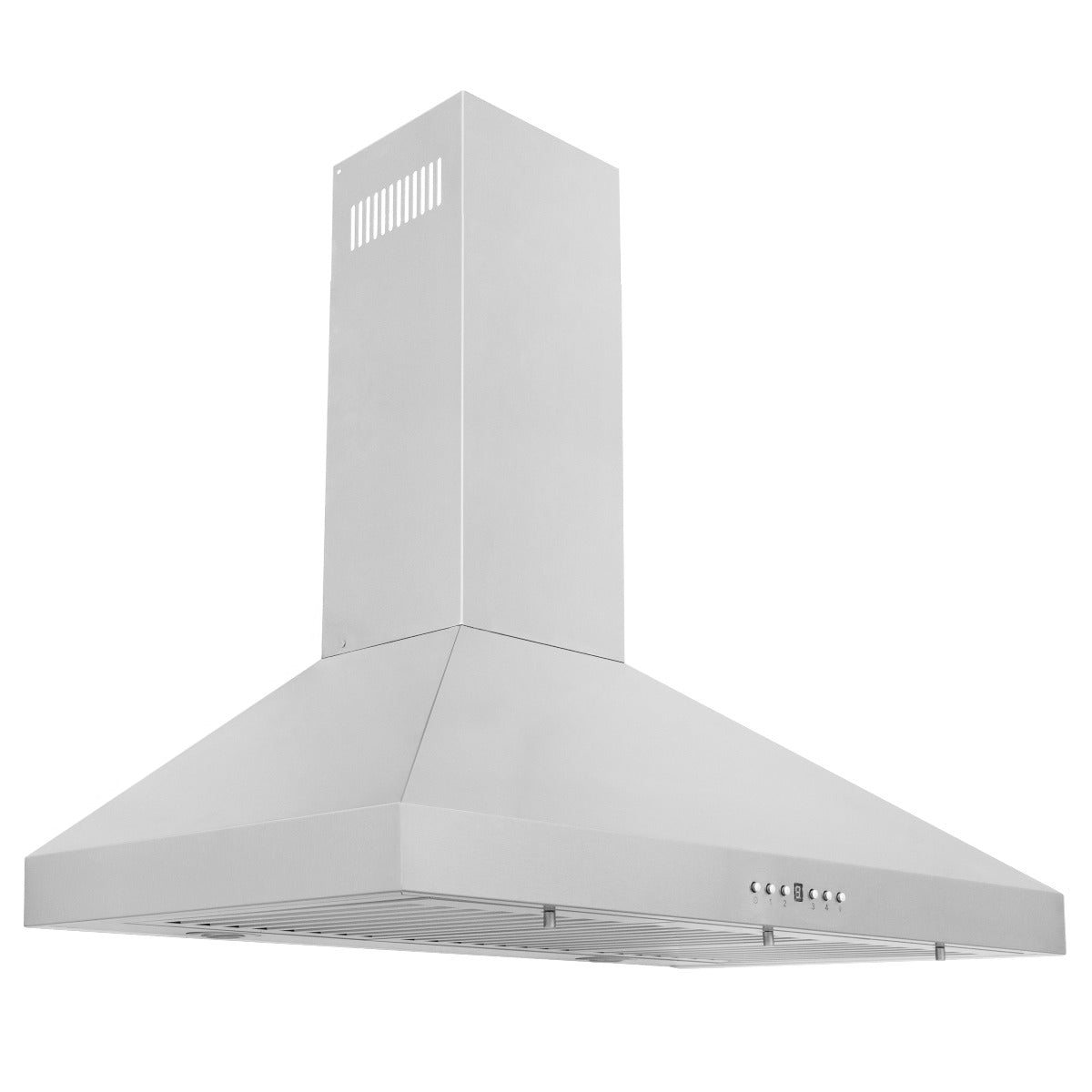

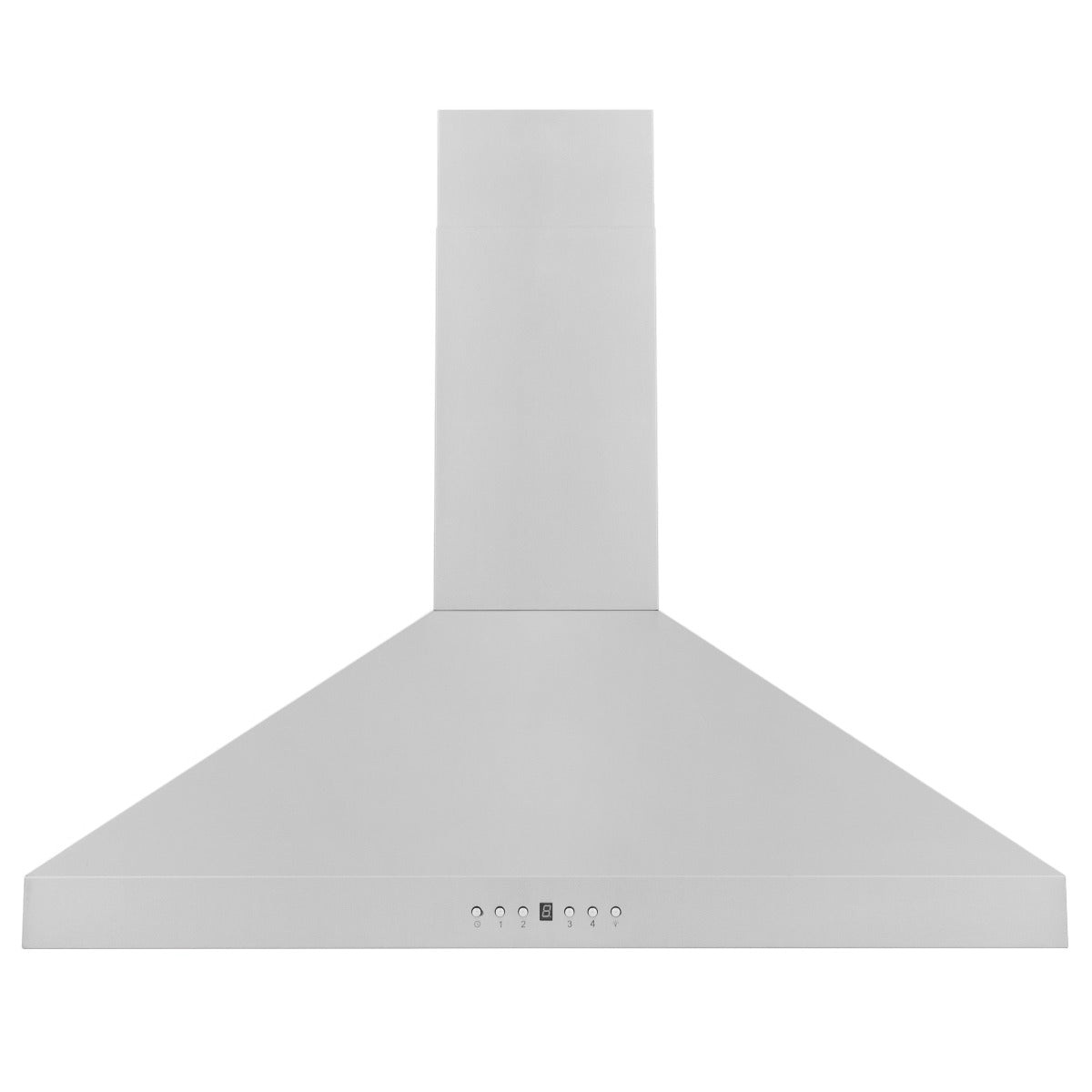

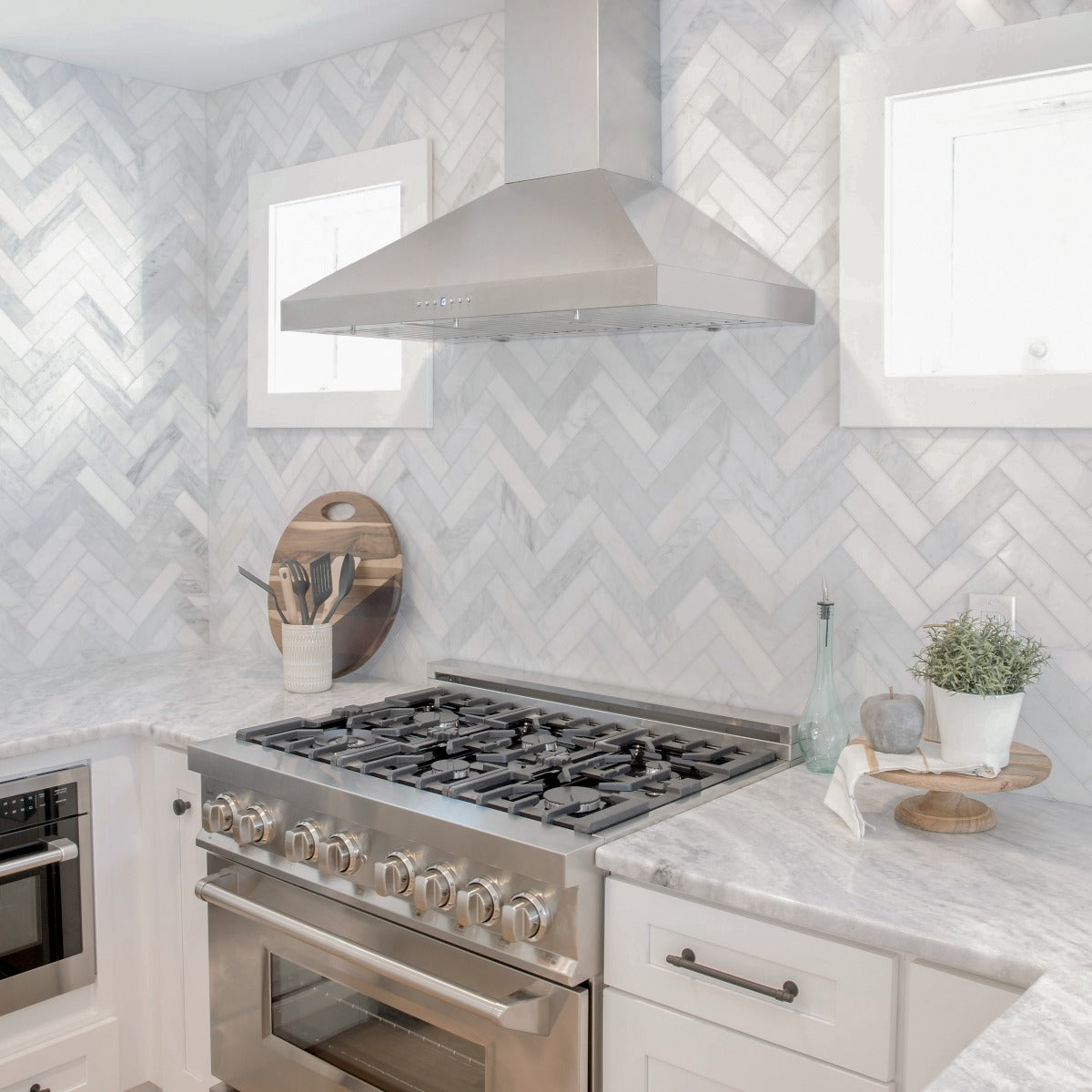

The ZLINE KL3-36 is a 36-inch wall mount range hood constructed from durable 430-grade stainless steel, designed to provide reliable ventilation performance and a modern kitchen appearance. Equipped with a high-performance 4-speed motor delivering up to 400 CFM airflow, this range hood effectively removes smoke, grease, and odors during cooking.
The unit features dishwasher-safe stainless steel baffle filters for easy maintenance, along with built-in LED lighting to improve visibility over the cooking surface. A user-friendly control panel with LCD display and delayed auto shutoff function allows convenient operation.
This model includes two telescoping chimney sections for flexible installation, fitting standard ceiling heights between 8 and 9 feet. Additional extension or short kits are available for varying ceiling heights. The hood also supports ductless/recirculating installation with optional charcoal filters (sold separately).

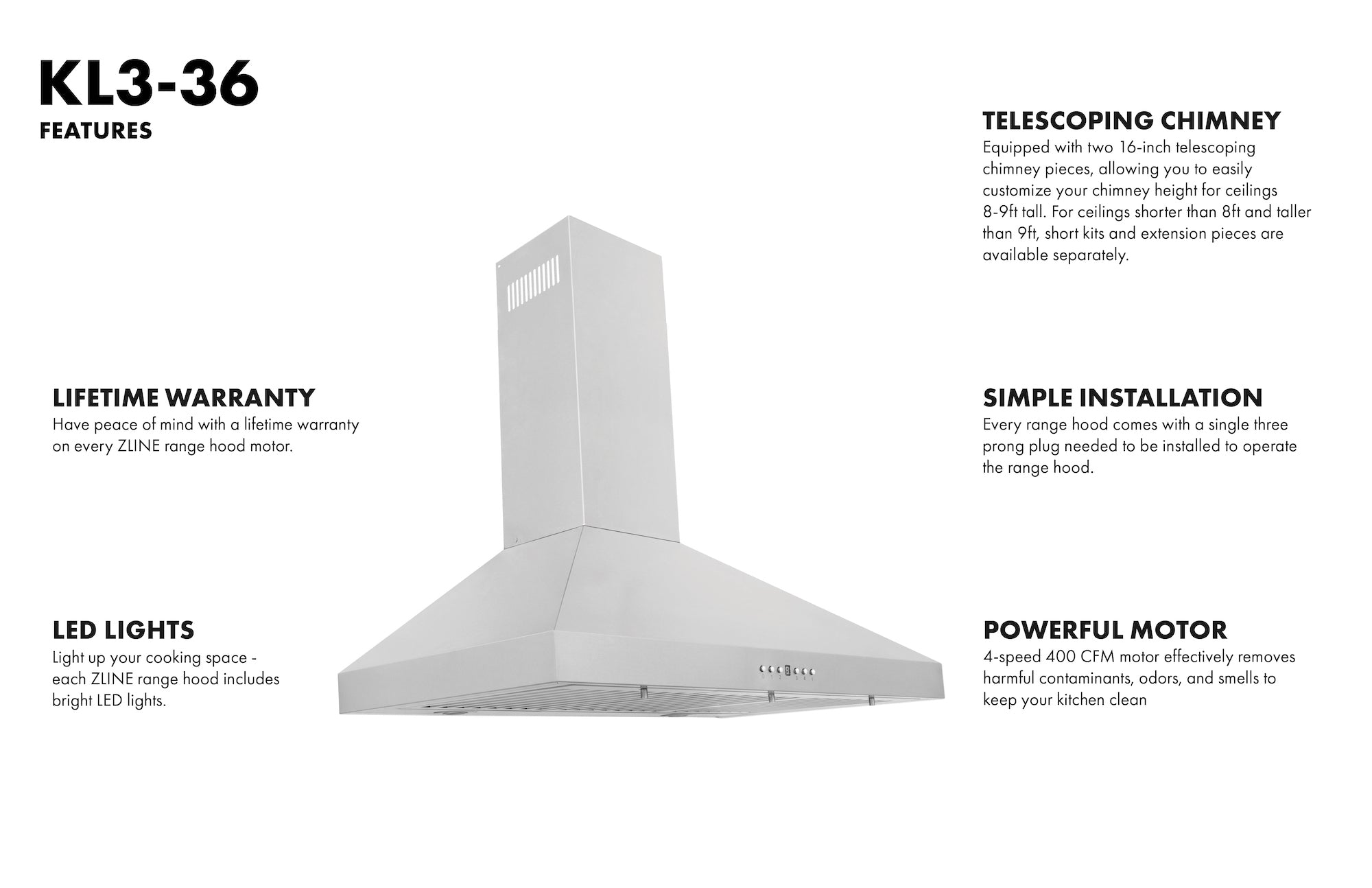

Key Features:
-
36-inch wall mount range hood in stainless steel
-
High-performance 4-speed motor with up to 400 CFM airflow
-

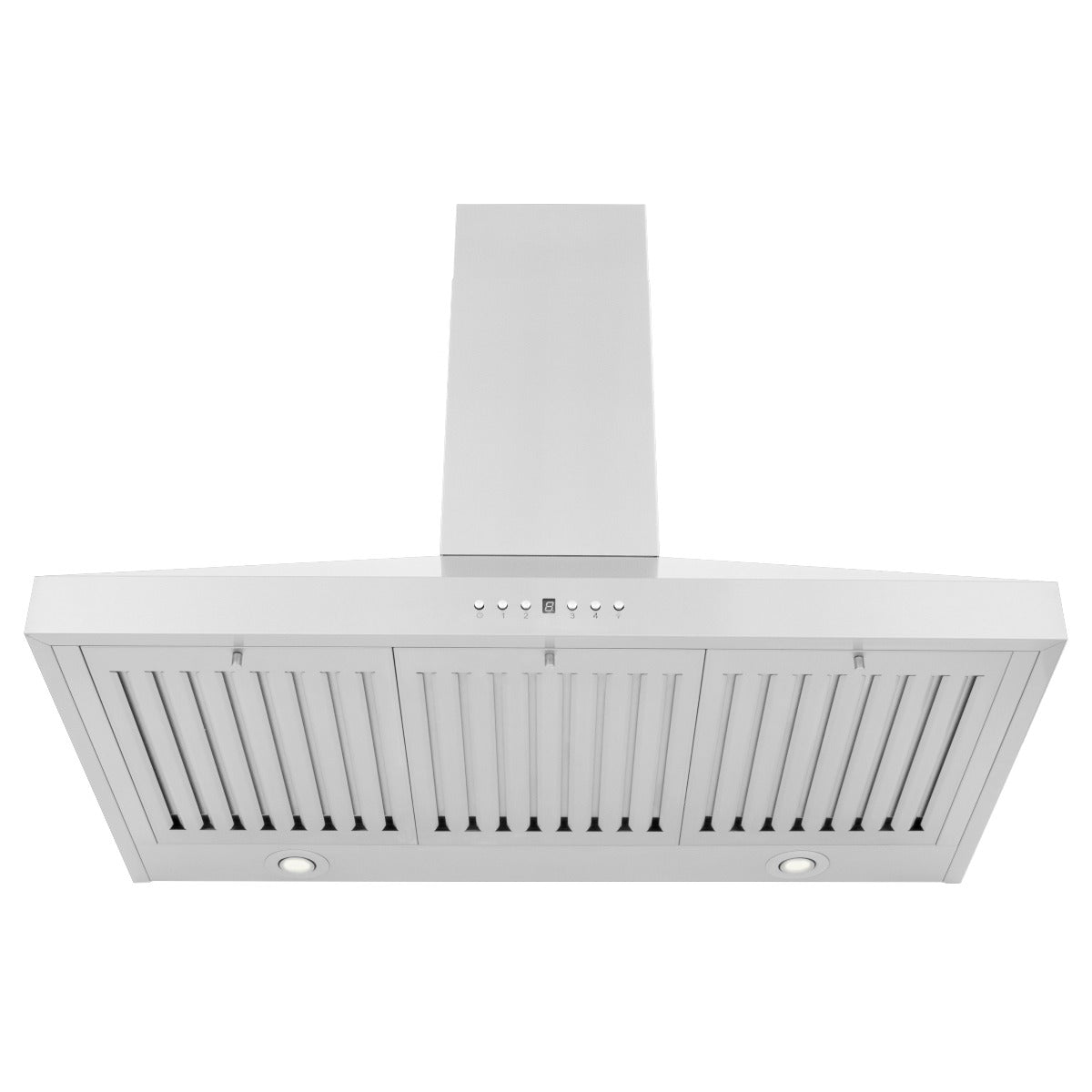

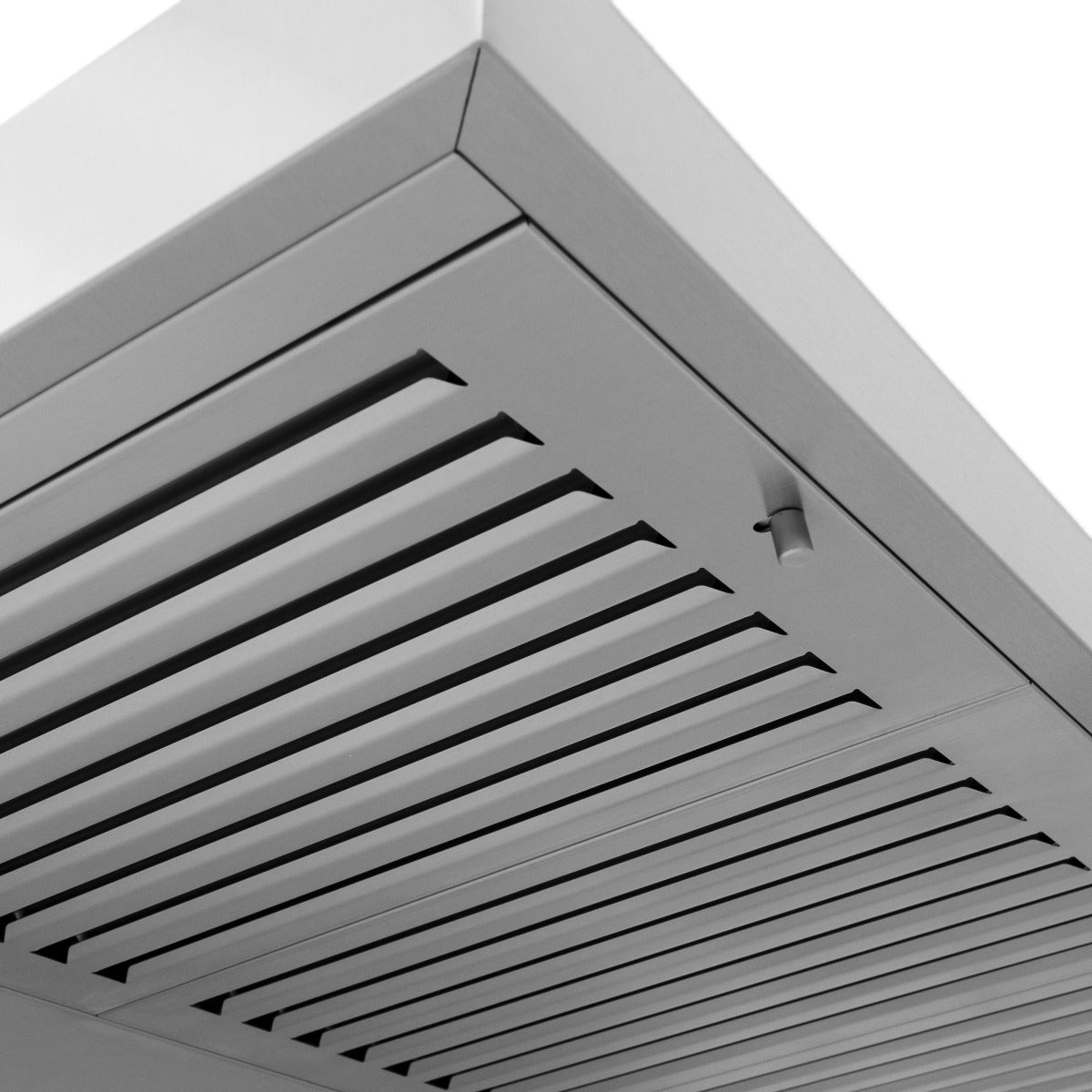

Dishwasher-safe stainless steel baffle filters
-

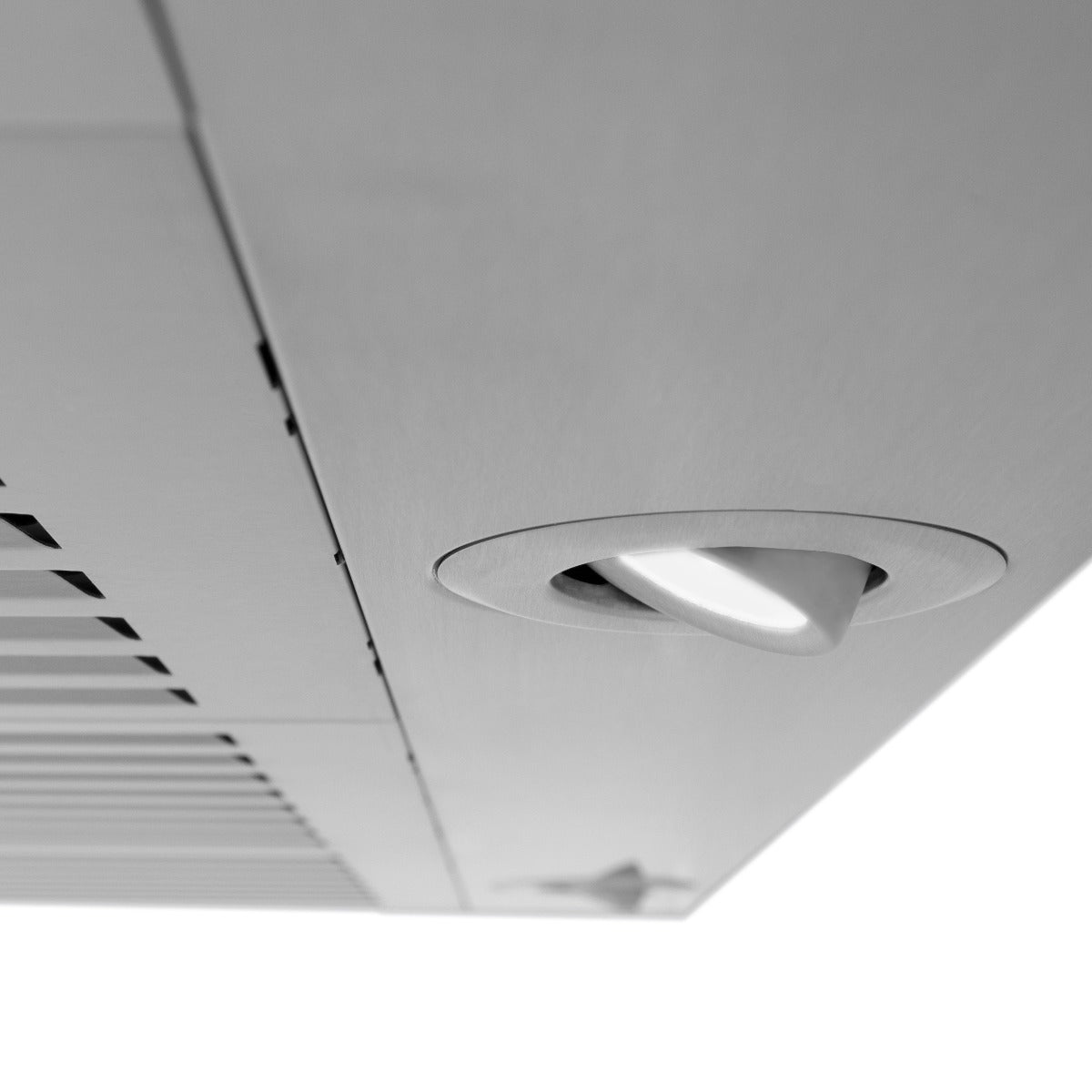

Built-in LED lighting (2 directional lights, 3W each)
-

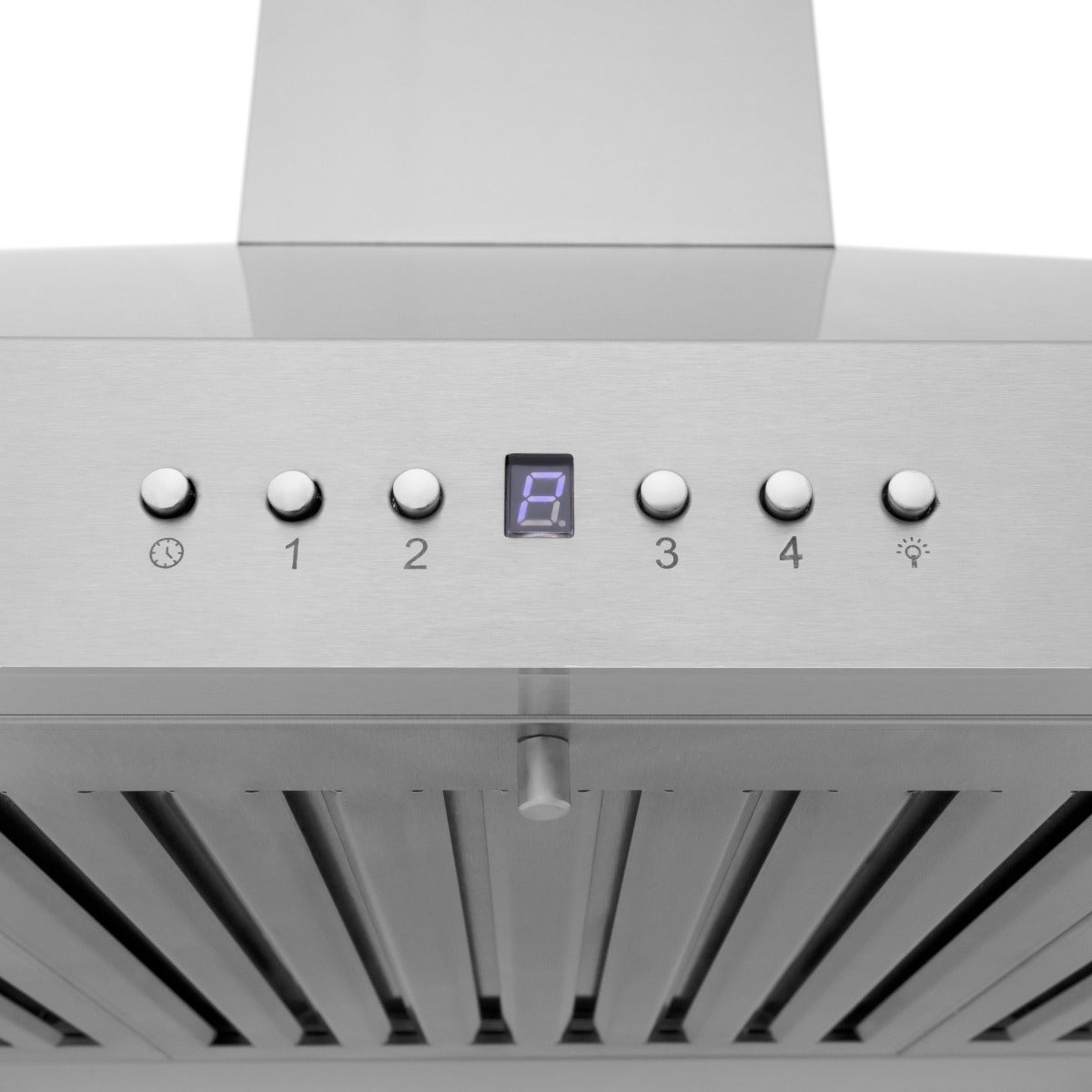

LCD control panel with timer and delayed shutoff function
-
Convertible vent design (ducted or ductless with optional filters)
-
Two telescoping chimney pieces for adjustable installation
-
Quiet operation ranging from 20 to 41 decibels
-
ETL and UL listed for safety compliance
Technical Specifications
-

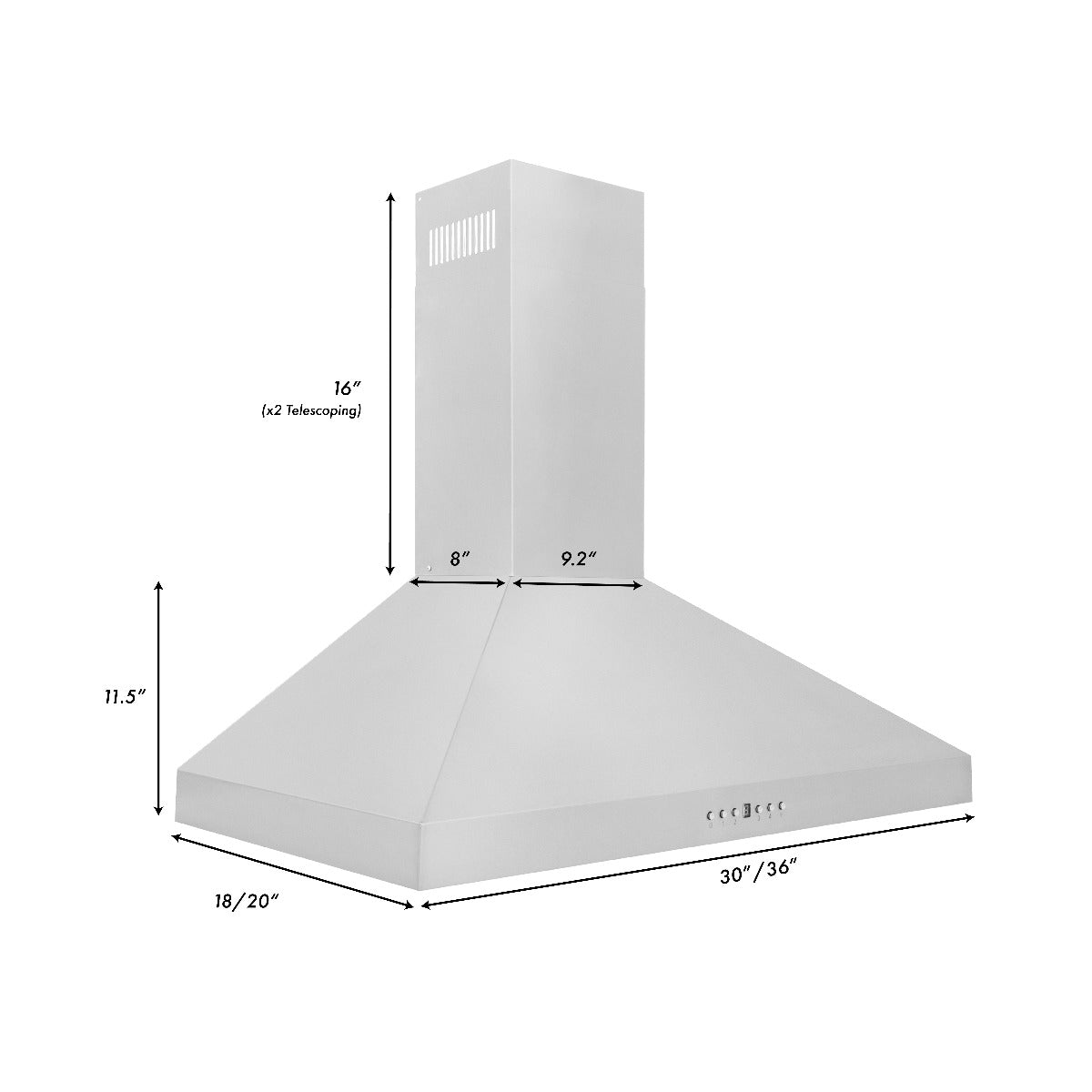

Dimensions: 36" W x 19.25" D x 11.5" H
-
Chimney Dimensions: 9.2" W x 8" D x 16" H (x2)
-
Airflow: 120 / 240 / 320 / 400 CFM
-
Noise Level: 20 / 29 / 34 / 41 dB
-
Venting Size: 6-inch outlet
-
Voltage: 110V / 60Hz
-
Material: 21-gauge #430 stainless steel
-
Mount Type: Wall mounted
-
Control Type: LCD panel with timer
-
Warranty: 3-year parts warranty
-
Certification: ETL and UL listed
Installation & Compatibility
-
Fits ceiling heights:
-
8–9 ft (standard installation)
-
<8 ft (requires short kit SK-KB/KL2/KL3)
-
9–10 ft (requires 1-piece extension)
-
10–12 ft (requires 2-piece extension)
-
-
Compatible with optional crown molding kits (sold separately)
-
Ductless conversion available with CF1 charcoal filters (not included)
