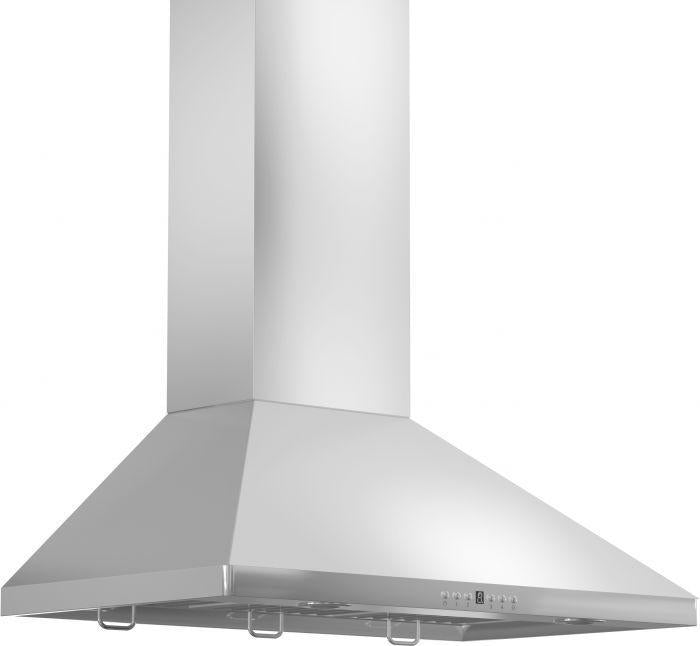

The ZLINE KF1-36 is a 36-inch wall mount range hood designed for indoor use, combining durable stainless steel construction with efficient ventilation performance. Built from 430-grade stainless steel, this range hood offers long-lasting durability and a modern appearance suitable for a variety of kitchen styles.
Equipped with a 4-speed motor, the KF1-36 delivers airflow up to 400 CFM, helping to effectively remove smoke, grease, and cooking odors. Integrated LED lighting provides clear illumination over the cooking surface, while stainless steel baffle filters are dishwasher-safe for easy maintenance.
This model supports both ducted and ductless operation (ductless conversion requires CF1 carbon filters, sold separately). The adjustable chimney system fits standard ceiling heights, with optional extension or short kits available for customized installation.
Key Features:
- 36-inch wall mount range hood for indoor kitchens
- Constructed from 430-grade stainless steel for durability
- 4-speed fan control with airflow up to 400 CFM
- Built-in LED lighting for enhanced cooking visibility

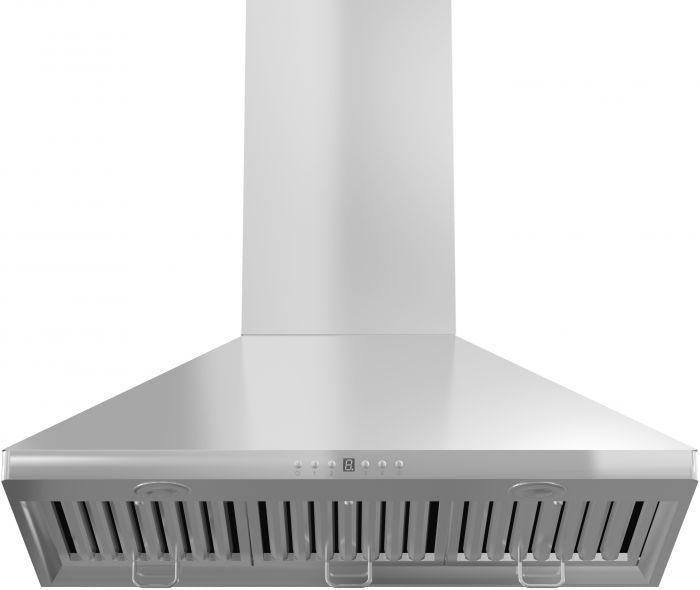

- Dishwasher-safe stainless steel baffle filters
- Compatible with ducted or ductless installation (CF1 filters required for recirculation)
- Includes telescoping chimney for standard 8–9 ft ceilings
- ETL listed for safety and performance
Installation & Compatibility
- Standard ceiling fit: 8 ft to 9 ft (no kit required)
- Below 8 ft: requires Short Kit (SK-KF1)
- 9 ft to 10 ft: requires Extension Kit (1PCEXT-KF1)
- 10 ft to 12 ft: requires Extension Kit (2PCEXT-KF1)
Additional Information
- Not certified for outdoor use
- Compatible model sizes: 30-inch (KF1-30)
- Carbon filters and extension kits sold separately
