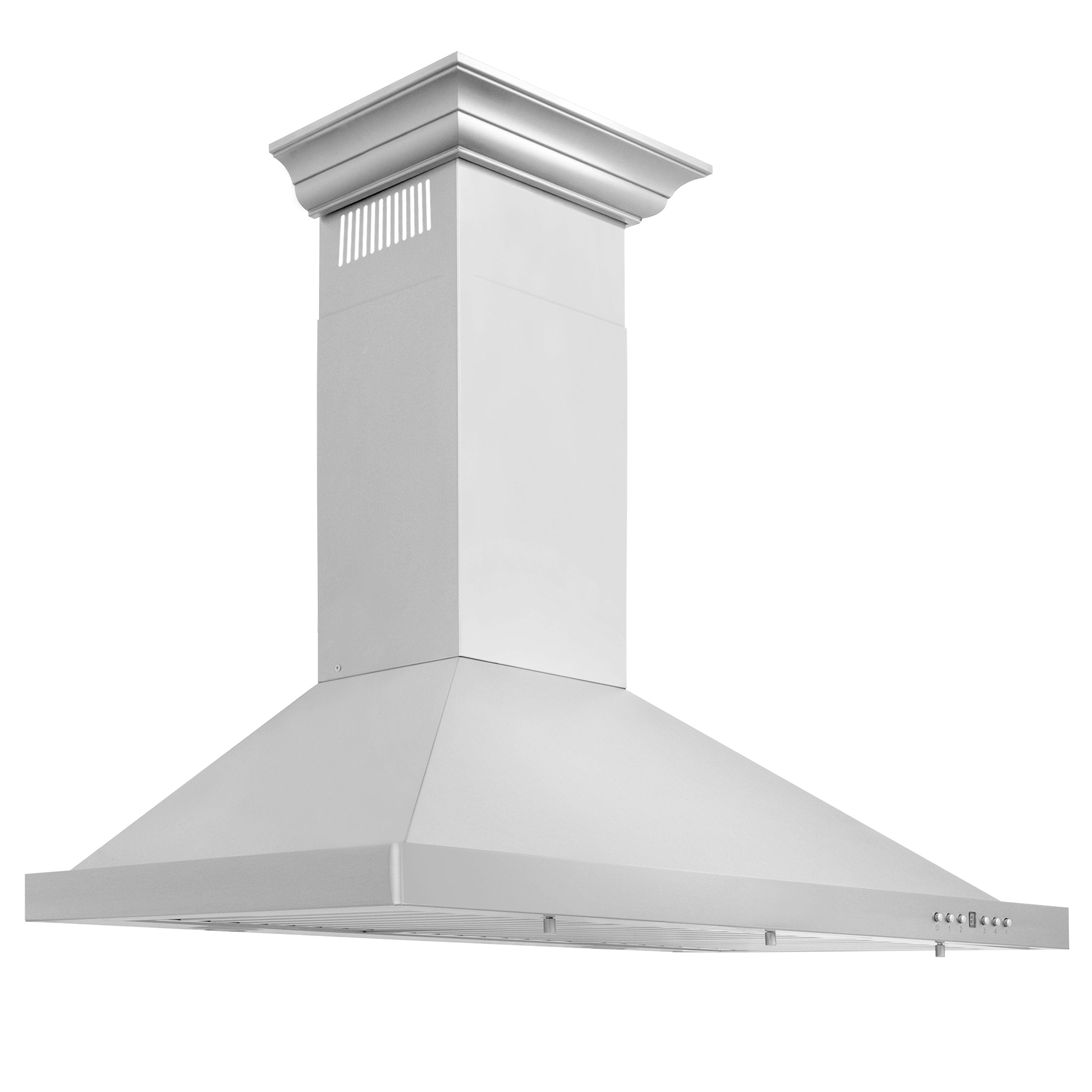

ZLINE 36 in Wall Mount Range Hood Convertible Vent Stainless Steel with Crown Molding (KBCRN-36)
ZLINE 36 in Wall Mount Range Hood Convertible Vent Stainless Steel with Crown Molding (KBCRN-36)
Size Chart
| UK Size | US Size | Diameter (mm) | Circumference (mm) | Fit |
|---|---|---|---|---|
| J | 5 | 15.7 mm | 49.3 mm | Her |
| K | 5.5 | 16.1 mm | 50.6 mm | Her |
| L | 6 | 16.5 mm | 51.9 mm | Her |
| M | 6.5 | 16.9 mm | 53.1 mm | Her |
| N | 7 | 17.3 mm | 54.4 mm | Her |
| O | 7.5 | 17.7 mm | 55.7 mm | Her |
| P | 8 | 18.1 mm | 57.0 mm | Her |
| Q | 8.5 | 18.5 mm | 58.3 mm | His |
| R | 9 | 18.9 mm | 59.5 mm | His |
| S | 9.5 | 19.4 mm | 60.8 mm | His |
| T | 10 | 19.8 mm | 62.1 mm | His |
| U | 10.5 | 20.2 mm | 63.4 mm | His |
| V | 11 | 20.6 mm | 64.6 mm | His |
| W | 11.5 | 21.0 mm | 65.9 mm | His |
The ZLINE KBCRN-36 is a 36-inch wall mount range hood designed for efficient ventilation and modern kitchen styling. Constructed from durable 430-grade stainless steel, this range hood offers reliable performance and long-lasting use. It features a 4-speed motor with airflow up to 400 CFM, helping to remove smoke, grease, and odors effectively during cooking.
The unit includes integrated crown molding for an enhanced finished appearance and built-in LED lighting to improve visibility over the cooktop. Stainless steel baffle filters are dishwasher safe for easy cleaning and maintenance. The hood supports both ducted and ductless (recirculating) installation with optional charcoal filters (sold separately).
Designed for flexibility, the included telescoping chimney fits standard ceiling heights, with optional extensions available for higher or lower ceilings.
Key Features:-

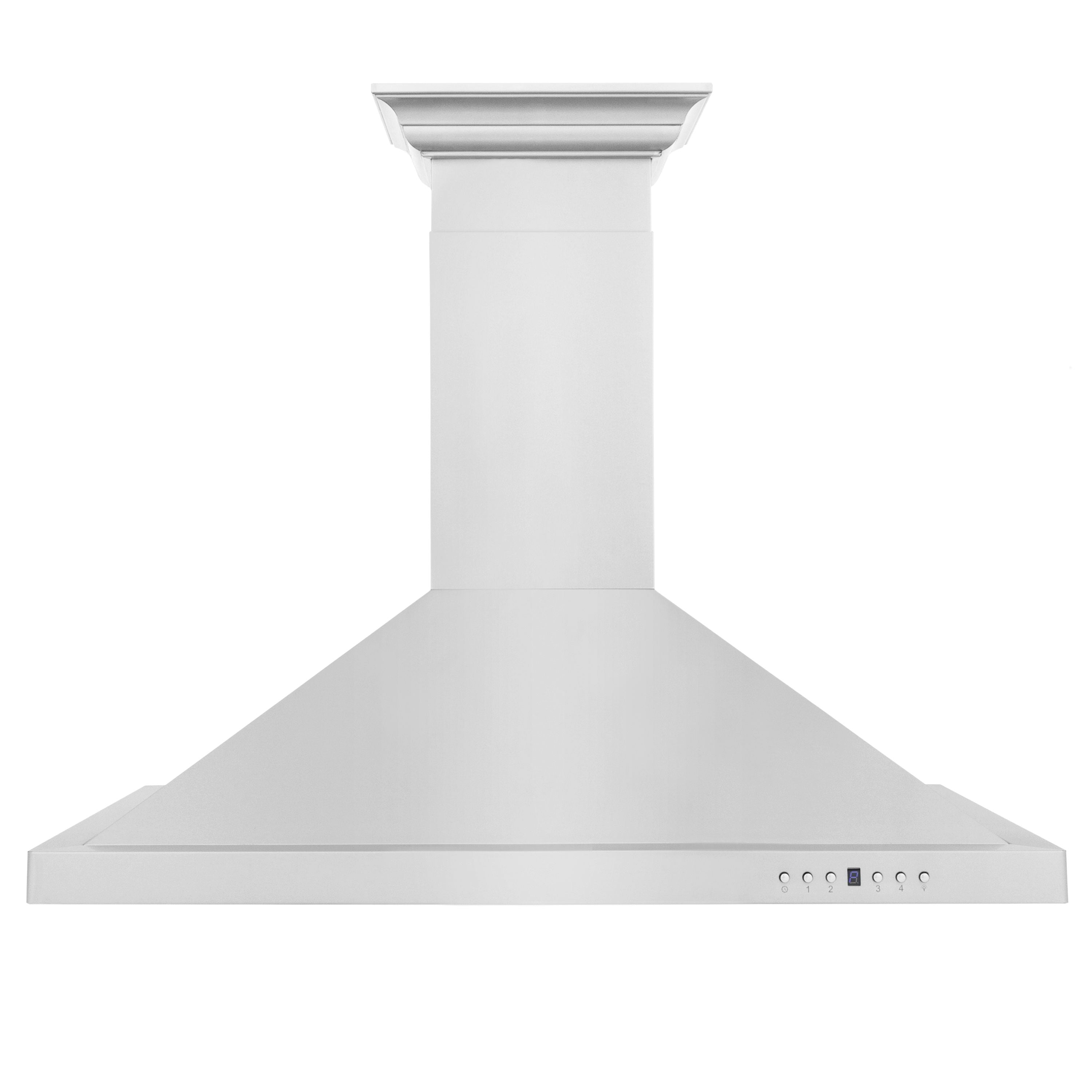

36-inch wall mount range hood in stainless steel
-
Convertible ventilation (ducted or ductless with optional CF1 charcoal filters)
-
4-speed motor with airflow up to 400 CFM
-

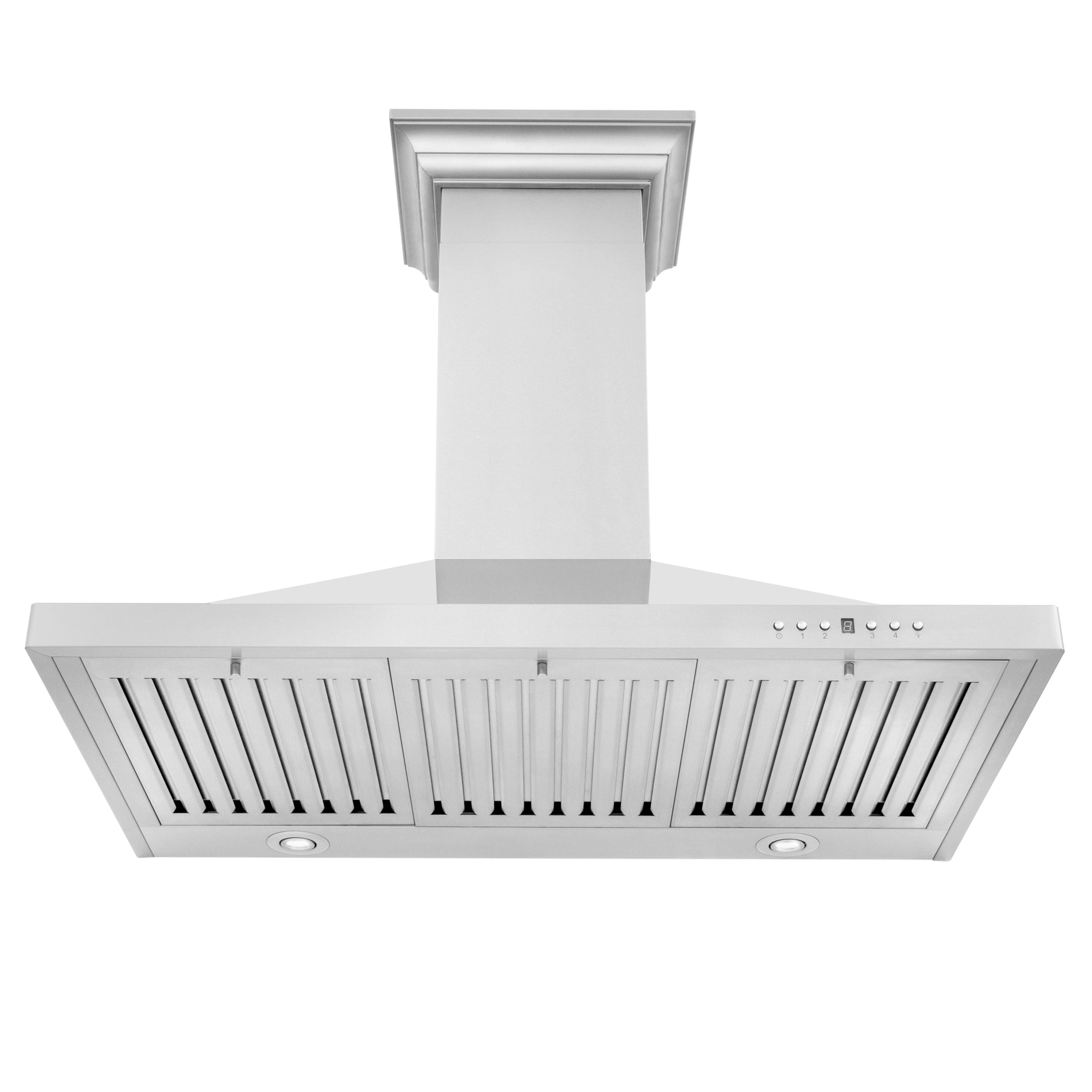

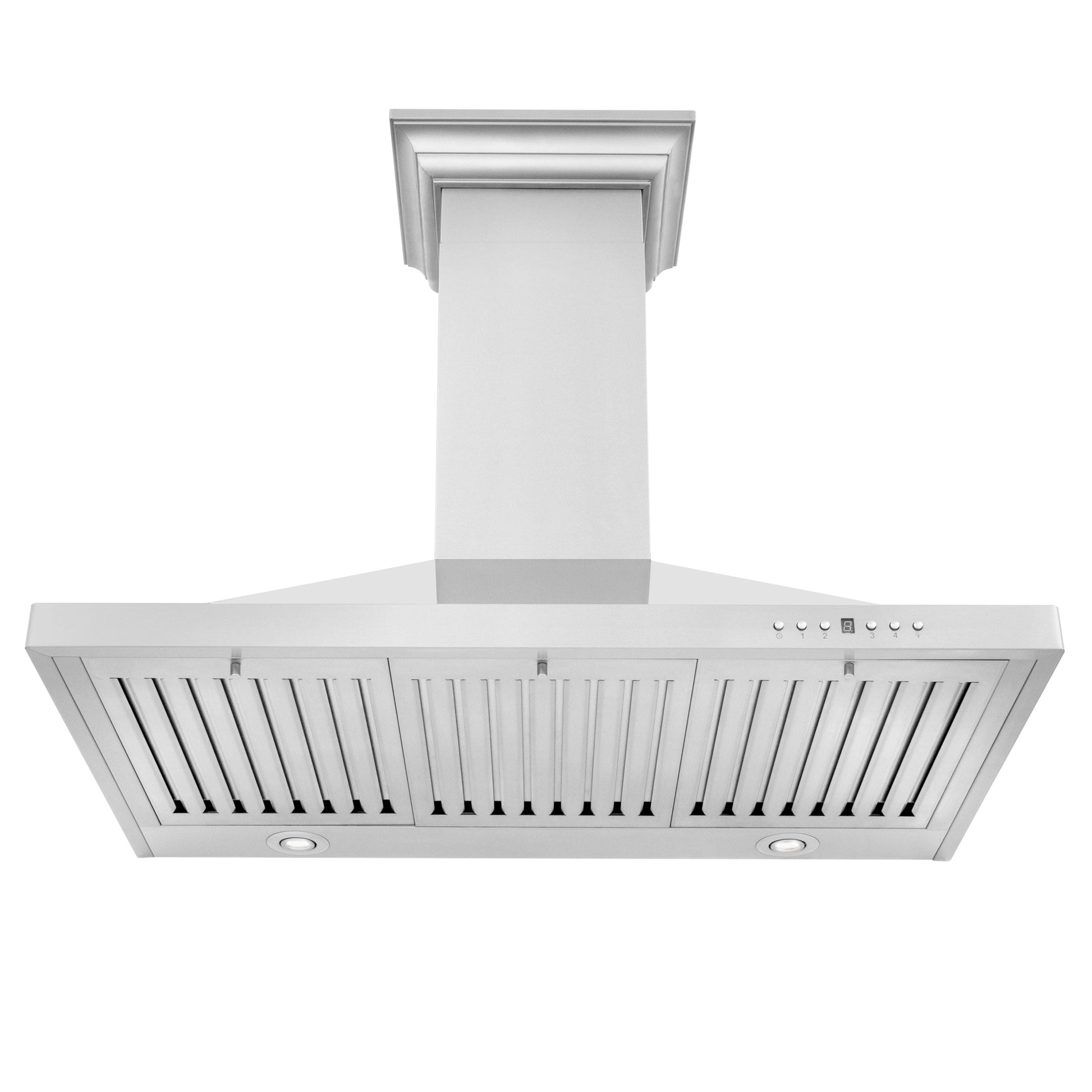

Dishwasher-safe stainless steel baffle filters
-
Built-in LED lighting for improved cooktop visibility
-

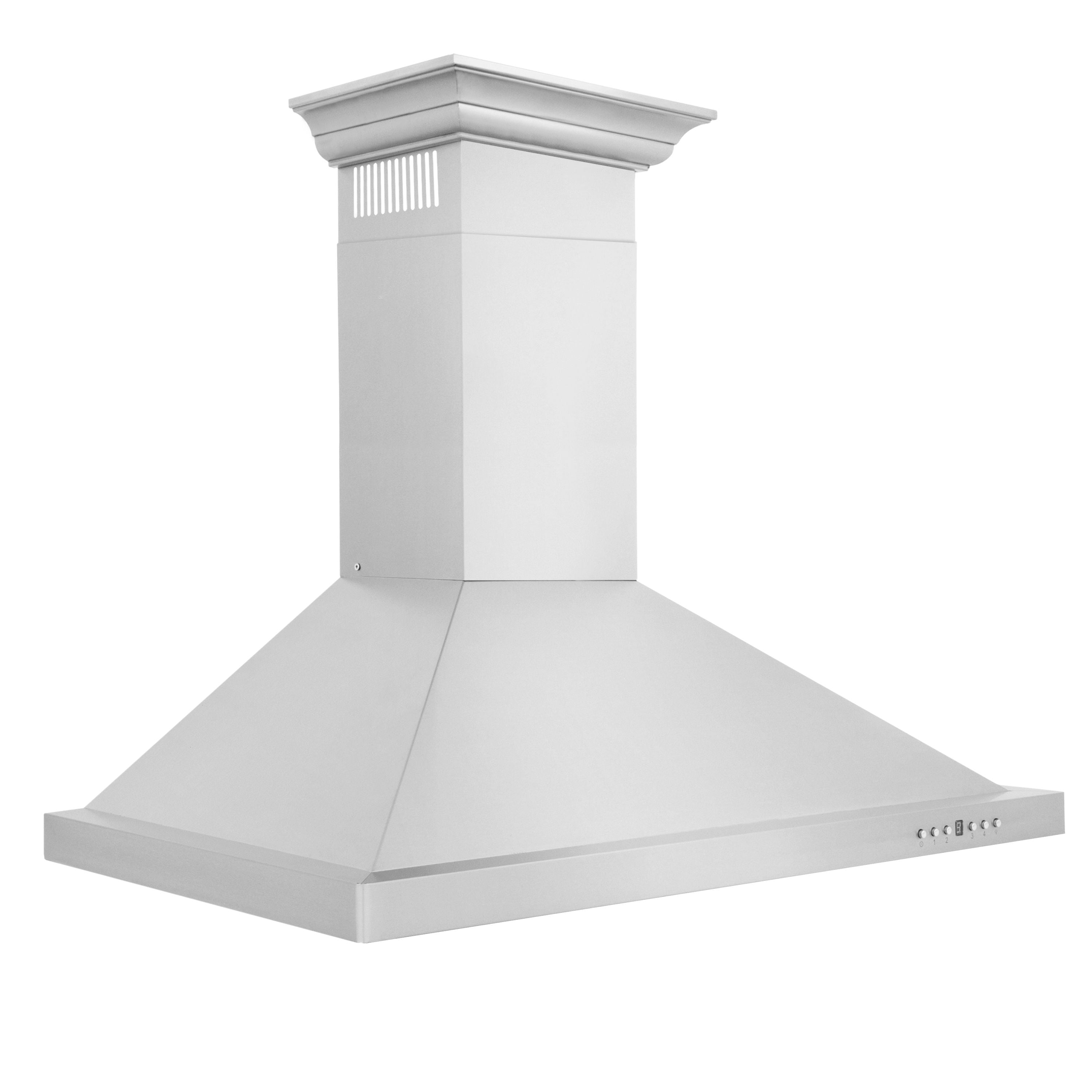

Crown molding included for a finished design
-

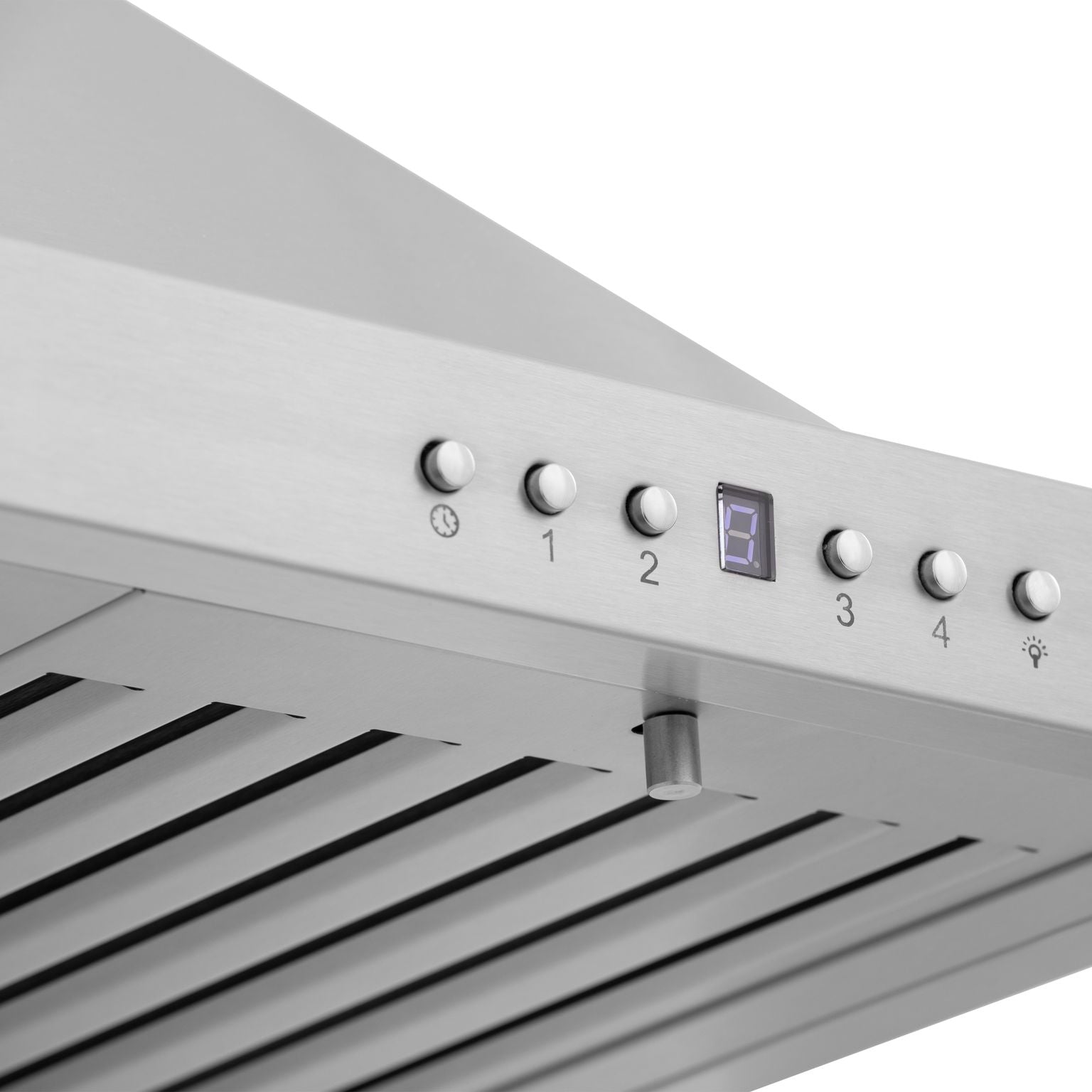

Push button control panel with timer and delayed shutoff
-
Telescoping chimney fits most 8–9 ft ceilings
-
ETL certified for safety and performance
-
Brand: ZLINE Kitchen and Bath
-
Model: KBCRN-36
-

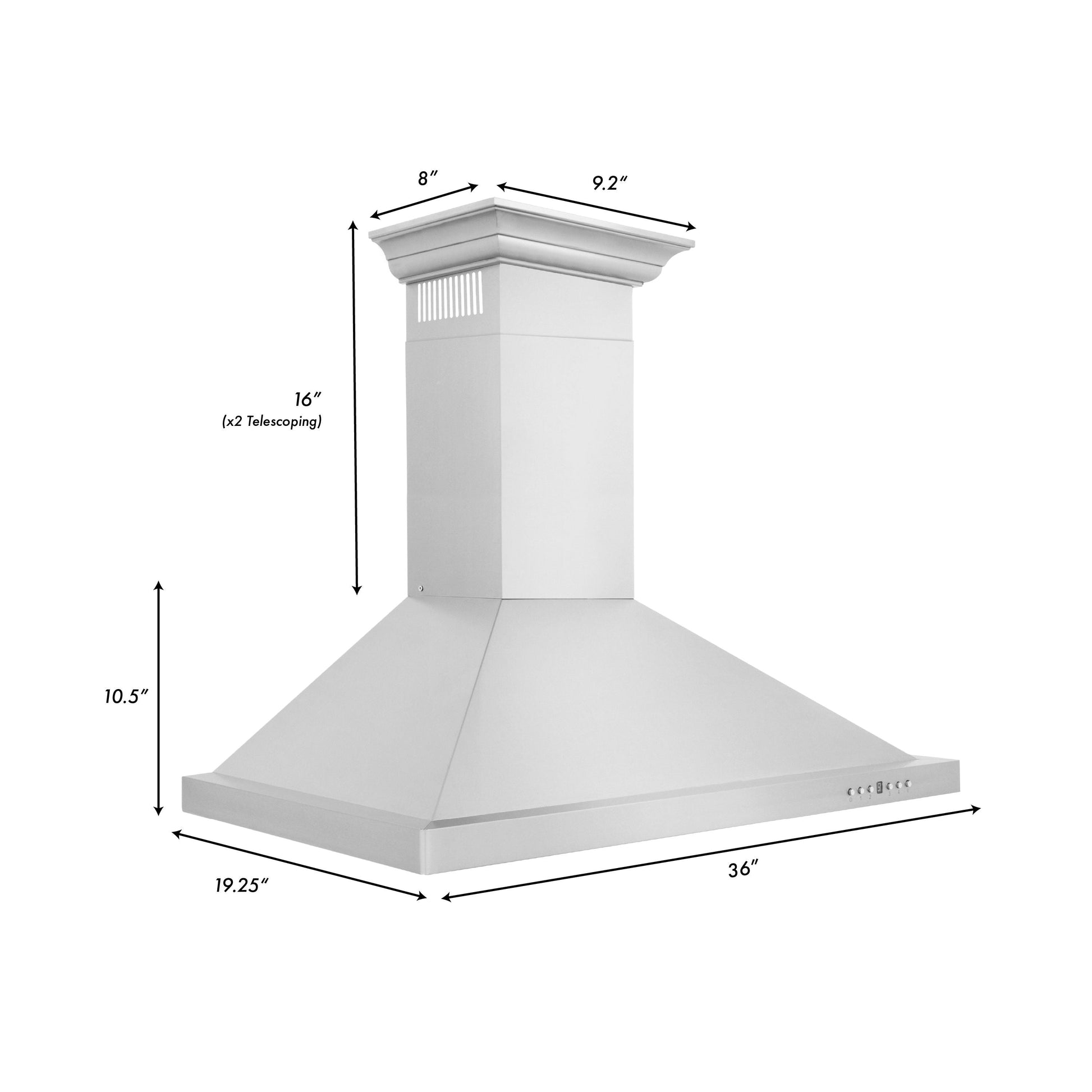

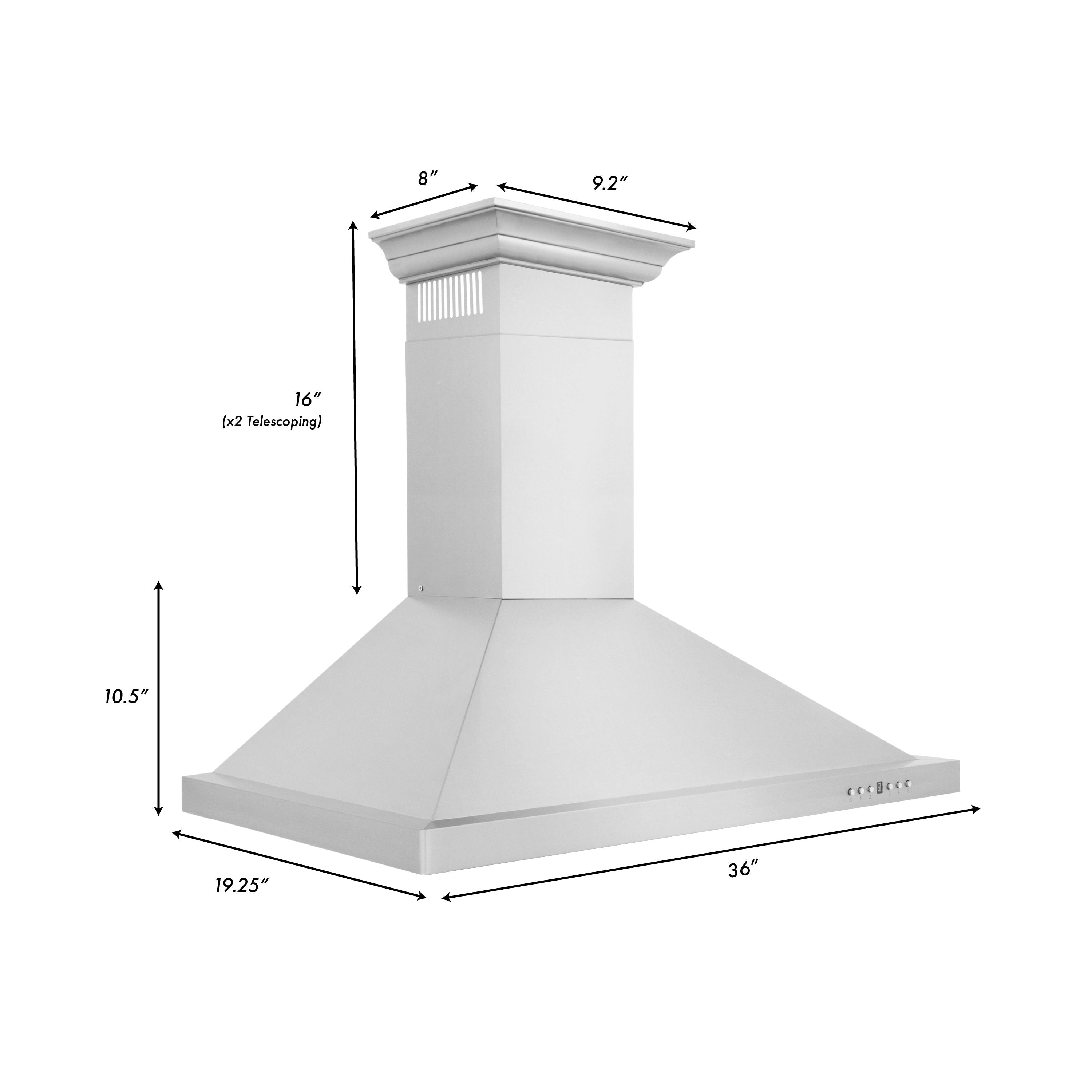

Dimensions: 36" W x 19.7" D x 10.5" H
-
Mount Type: Wall Mounted
-
Material: 430 Stainless Steel
-
Motor: 400 CFM, 4-Speed
-
Airflow: 120 / 240 / 320 / 400 CFM
-
Noise Level: 20 / 29 / 34 / 41 dB
-
Lighting: 2 LED Lights (3W each)
-
Control Type: Push Button Panel with Timer
-
Venting Size: 6-inch duct outlet
-
Voltage: 110V / 60Hz
-
Certifications: ETL Listed
-
Warranty: 3-Year Parts Warranty
-
Fits standard 8–9 ft ceilings with included chimney
-
Optional kits available:
-
Short Kit for ceilings under 8 ft
-
Extension kits for ceilings up to 12 ft
-
-
Compatible with ductless conversion using charcoal filters (sold separately)
-
Not approved for outdoor use
-
Includes crown molding (CM6-KB/KL2/KL3)
-
Available in multiple sizes: 30", 42", and 48"
-
Ships fully equipped for standard installation
