Product description

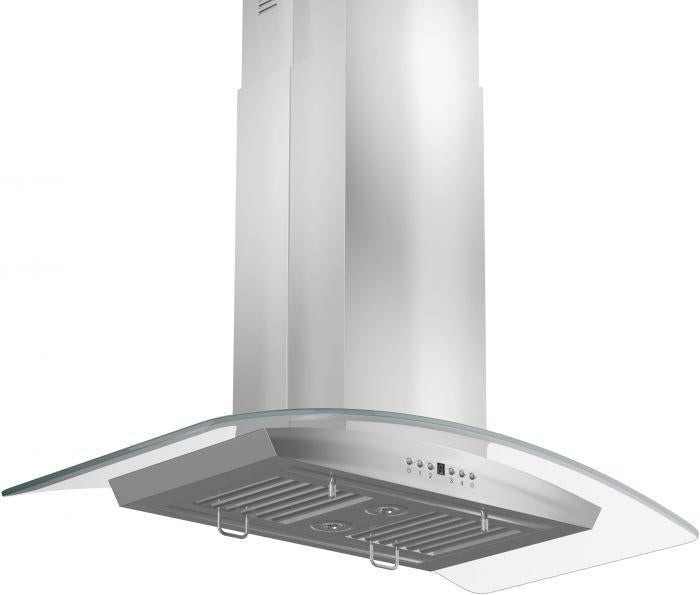

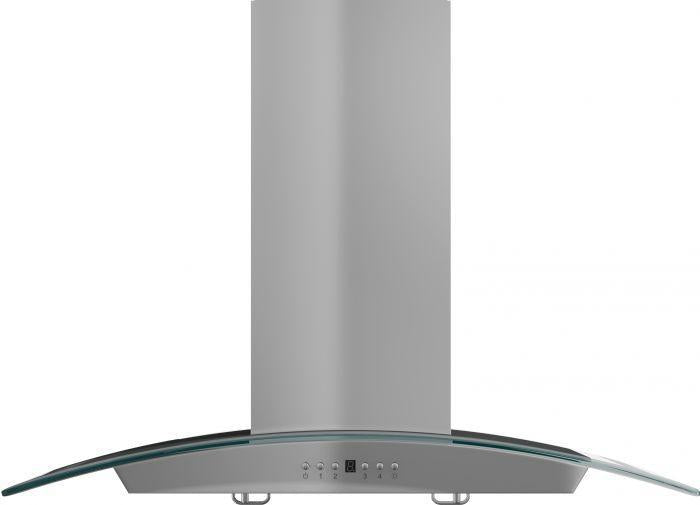

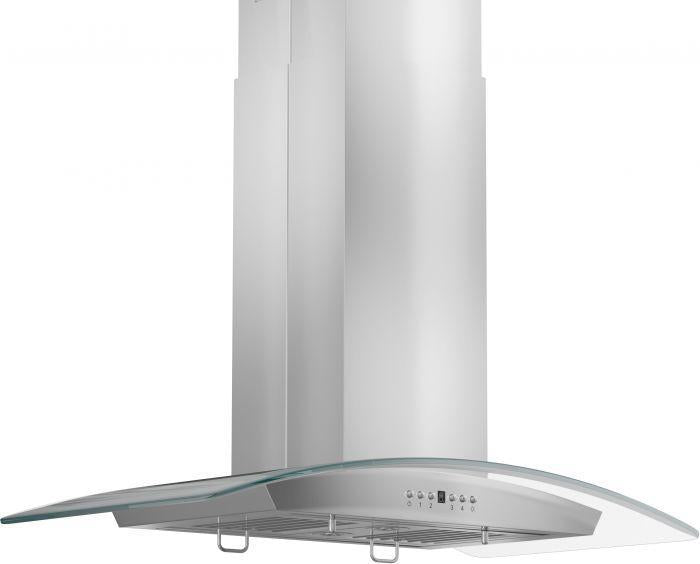

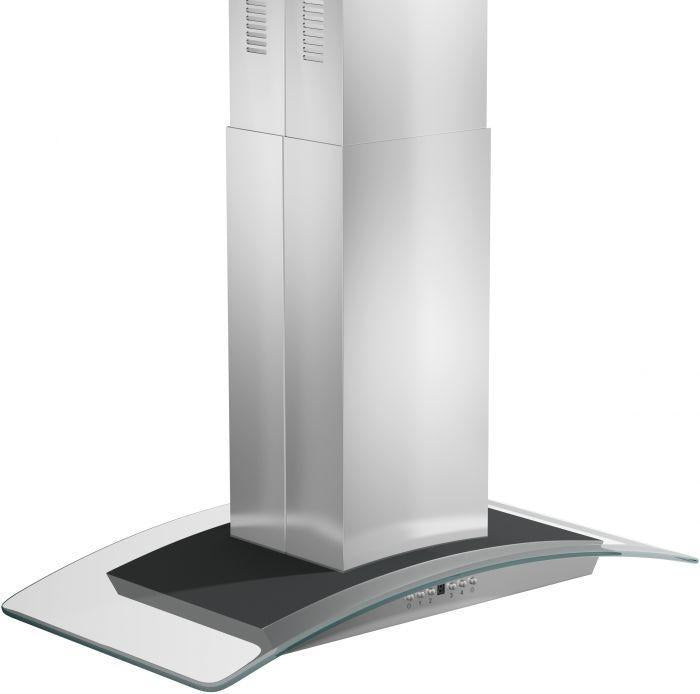

The ZLINE GL5i-36 is a 36-inch island mount range hood constructed from 430-grade stainless steel with a glass canopy. It is designed for efficient ventilation and modern kitchen integration, featuring a 4-speed motor with a maximum airflow of up to 400 CFM.
This model supports both ducted and recirculating installation (requires CF1 charcoal filters, sold separately). The included telescoping chimney pieces allow compatibility with standard ceiling heights, with optional extensions available for higher or lower ceilings.
Key Features:
- Airflow Capacity: Up to 400 CFM for effective smoke and odor removal
- Fan Speeds: 4-speed motor for adjustable ventilation control
- Construction: 430-grade stainless steel with glass canopy

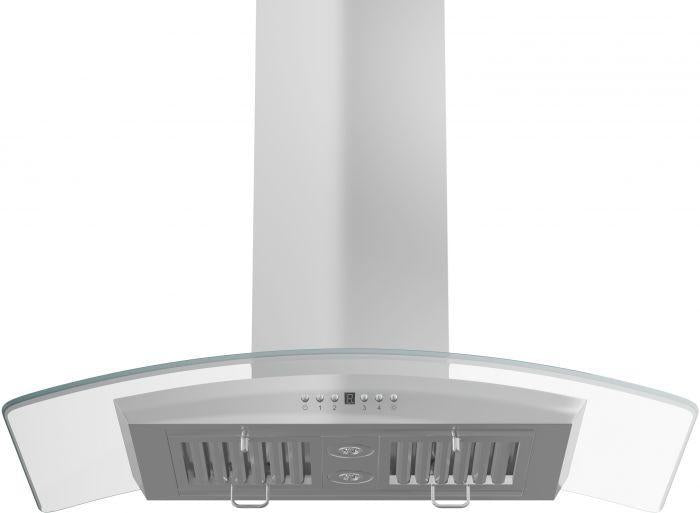

- Filters: Dishwasher-safe stainless steel baffle filters
- Lighting: Integrated LED lighting for clear cooktop visibility
- Noise Level: Maximum noise level of approximately 56 dB
- Installation Type: Island mount (ceiling-mounted)
- Venting Options: Convertible (ducted or recirculating with CF1 filters)
Installation & Compatibility

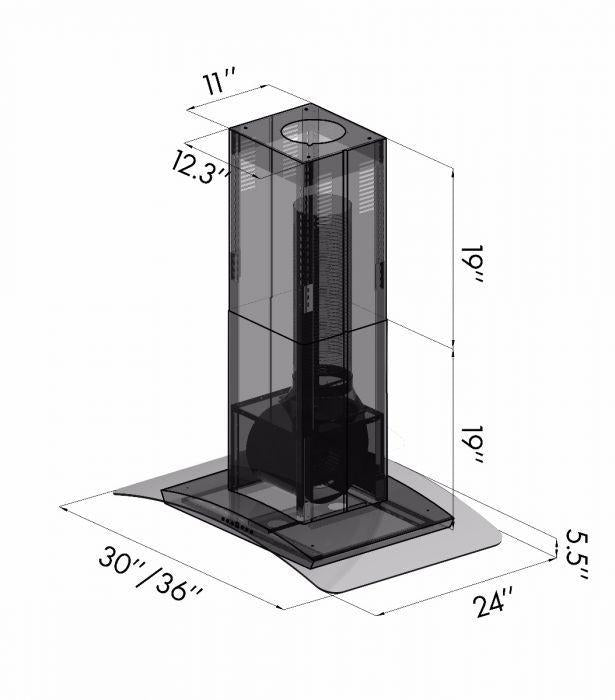

- Standard Fit: Designed for ceiling heights between 8 ft and 9 ft (includes telescoping chimney)
- Below 8 ft: Requires Short Kit (SK-GL5i)
- 9 ft to 10 ft: No extension required
- 10 ft to 12 ft: Requires Extension Kit (2PCEXT-GL5i)
- Crown Molding Compatibility: CM6-GL5i (sold separately)
Additional Information
- Outdoor Use: Not certified for outdoor installation
- Available Size: Also available in 30-inch model (GL5i-30)
- Included Components: Chimney pieces and standard installation hardware
