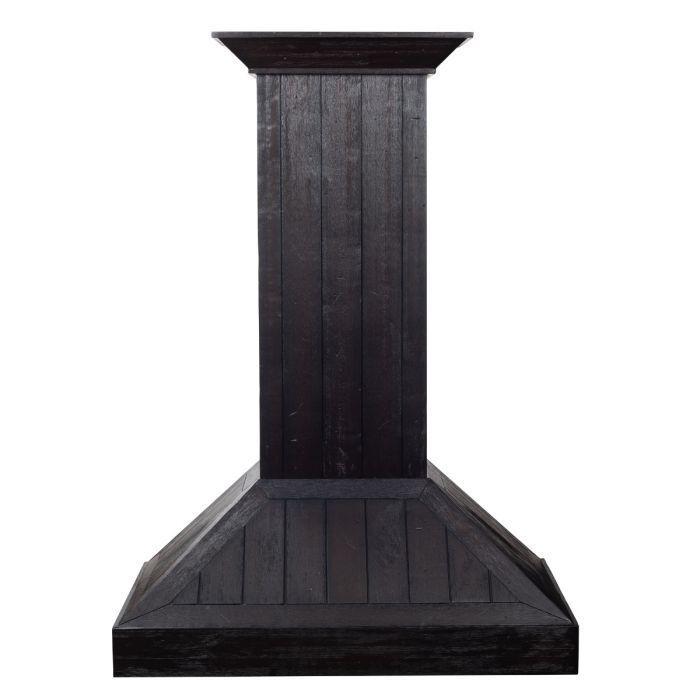

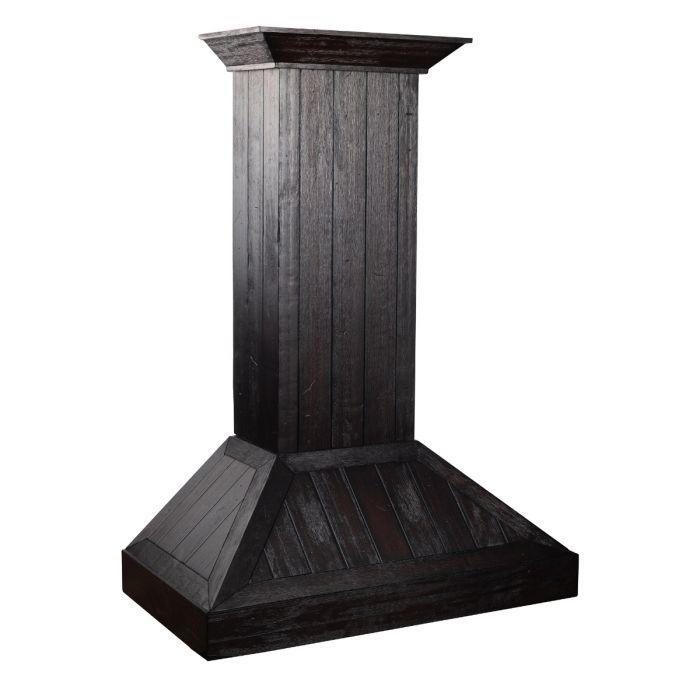

The ZLINE KPDD-30 is a 30-inch wall mount range hood featuring a hand-finished rustic dark wood exterior and durable stainless steel interior construction. Designed for reliable kitchen ventilation, this model delivers up to 400 CFM airflow with a 4-speed motor to effectively remove smoke, grease, and cooking odors.
Constructed from solid pine wood with a stainless steel insert, this range hood combines durability with a traditional design. Integrated LED lighting and dishwasher-safe baffle filters provide added functionality for everyday cooking use.
This unit includes a 24-inch chimney with crown molding and is designed to fit ceilings up to 9.5 feet. For taller ceilings (up to 12.5 feet), an optional chimney extension (KPDD-E) is available.
Key Features:- 400 CFM Ventilation Performance – Efficiently removes smoke, grease, and odors from the cooking area
- 4-Speed Fan Control – Adjustable airflow levels (120/240/320/400 CFM) for different cooking needs
- Solid Wood Construction – Hand-finished rustic dark pine wood exterior with stainless steel inner frame

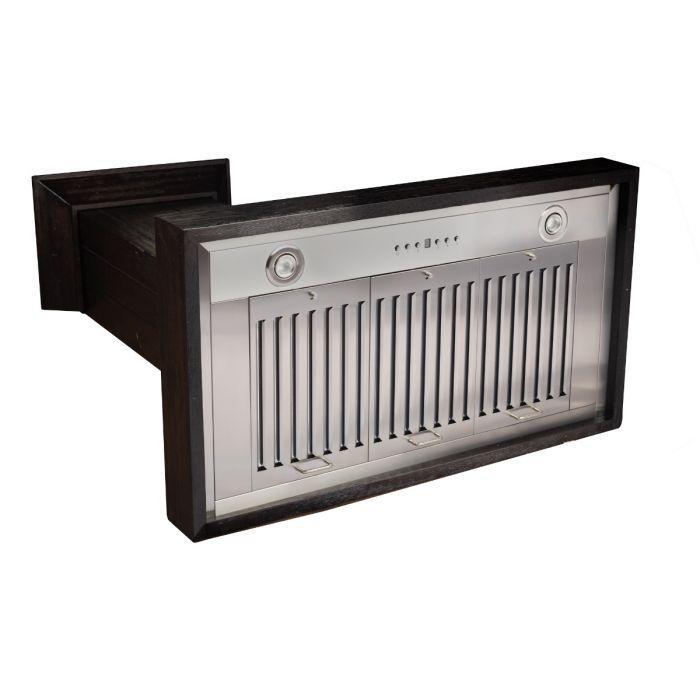

- Stainless Steel Baffle Filters – Durable and dishwasher-safe for easy maintenance
- Built-in LED Lighting – Two 3-watt directional lights for improved cooktop visibility
- Wall Mount Installation – Designed for wall-mounted kitchen setups
- LCD Control Panel with Timer – Includes 3-minute auto timer with delayed shut-off
- 6-Inch Duct Outlet – Compatible with standard ducting systems (transition piece included)
- Crown Molding Included – Enhances the overall installation appearance
- Brand: ZLINE Kitchen and Bath
- Model: KPDD-30
- Product Type: Wall Mount Range Hood
- Width: 30 Inches

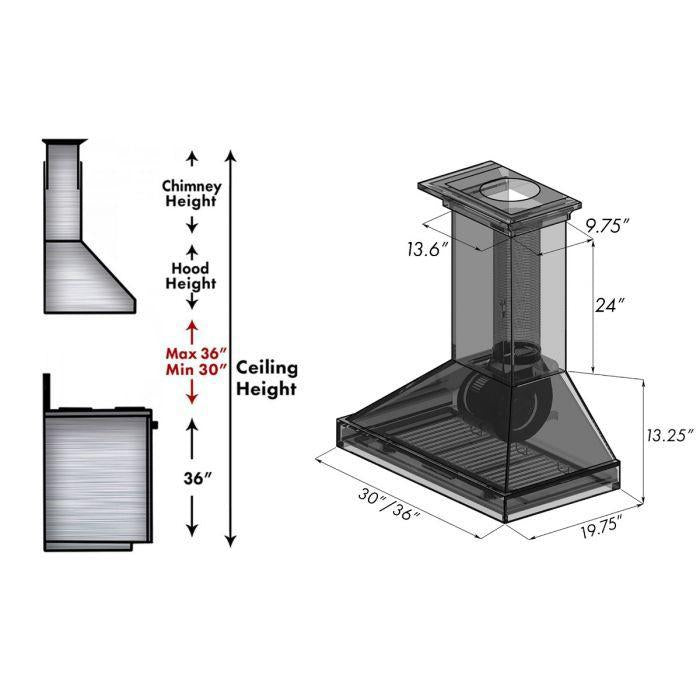

- Dimensions: 30" W x 19.75" D x 13.25" H
- Chimney Dimensions: 13.6" W x 9.75" D x 24" H
- Ceiling Compatibility: Up to 9.5 ft (up to 12.5 ft with extension KPDD-E)
- Airflow: 120 / 240 / 320 / 400 CFM
- Noise Level: 20 / 29 / 34 / 41 dB
- Lighting: 2 x 3W LED Lights
- Voltage: 110V / 60Hz
- Motor: 4-Speed High Performance Motor
- Control Type: LCD Panel with Timer
- Filter Type: Stainless Steel Baffle Filters (Dishwasher Safe)
- Venting Type: Ducted Only (No Recirculation Option)
- Material: Solid Wood Exterior with Stainless Steel Insert
- Certifications: ETL Listed
- Warranty: 3-Year Parts Warranty
- UPC: 817299029182
- Suitable for ducted installation only (recirculation not supported)
- Includes chimney and crown molding for standard installations
- Optional extension (KPDD-E) required for ceilings above 9.5 feet
