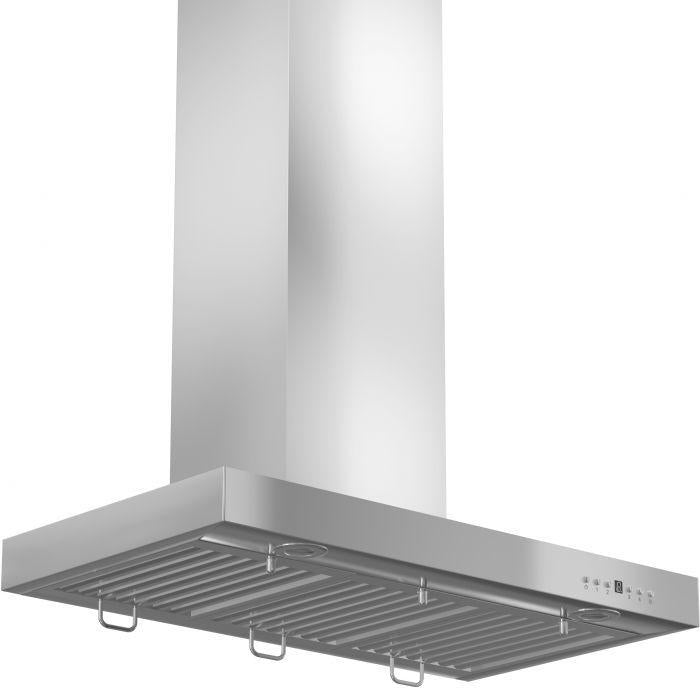

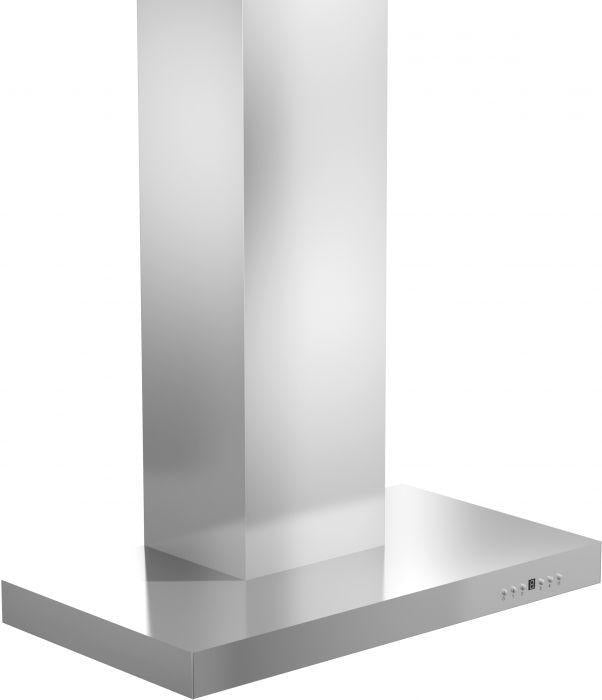

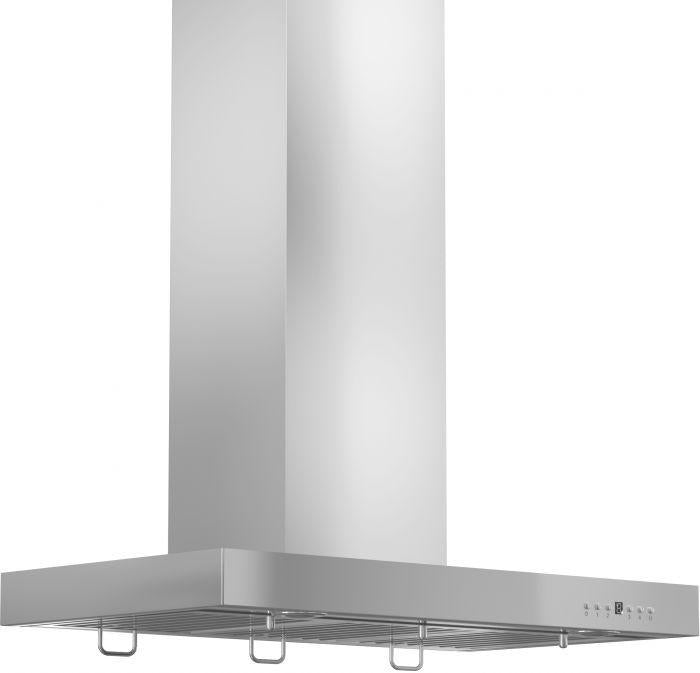

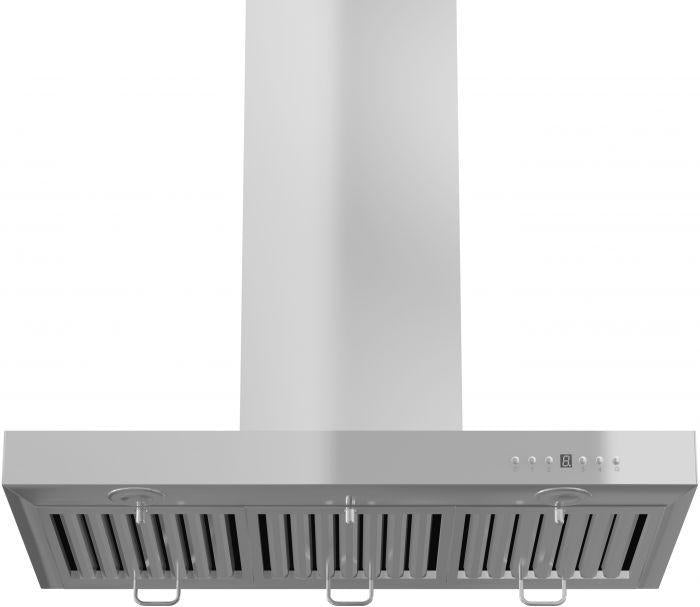

The ZLINE KECRN-30 is a 30-inch wall mount range hood designed for indoor use, combining durable stainless steel construction with efficient ventilation performance. Finished in 430-grade stainless steel, this model offers a modern appearance suitable for a variety of kitchen styles. It includes crown molding for an enhanced built-in look.
This range hood features a 4-speed motor with a maximum airflow capacity of up to 760 CFM, helping to remove smoke, grease, and cooking odors. Built-in LED lighting provides clear illumination of the cooking surface, while stainless steel baffle filters are dishwasher-safe for easy maintenance.

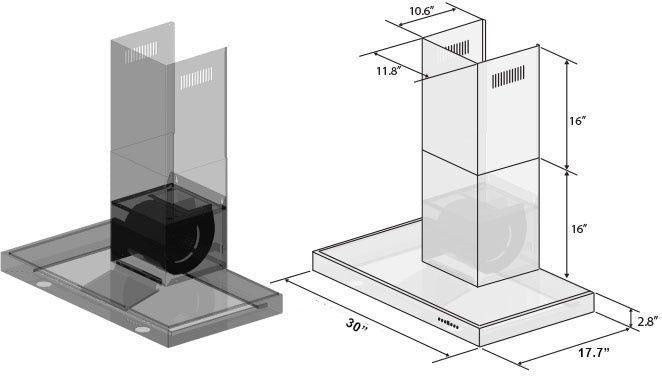

The unit includes two telescoping chimney sections to accommodate standard ceiling heights between 8 and 9 feet. Additional extension or short kits are available for alternative ceiling heights.
Key Features:
- Airflow Performance: Up to 760 CFM with 4-speed fan control
- Construction: 430-grade stainless steel for durability and corrosion resistance
- Ventilation Type: Convertible (ducted or recirculating with optional CF1 charcoal filters)
- Filters: Dishwasher-safe stainless steel baffle filters
- Lighting: Integrated LED lighting for enhanced visibility
- Design: Wall mount installation with included crown molding
- Noise Level: Maximum sound level of approximately 56 dB
- Chimney Fit: Adjustable telescoping chimney for 8–9 ft ceilings
Installation & Compatibility
-
Ceiling Height Options:
- Less than 8 ft: Requires Short Kit (SK-KE/KECOM-30)
- 8 ft to 9 ft: No additional kit required
- 9 ft to 10 ft: Requires 1-piece extension (1PCEXT-KE/KECOM-30)
- 10 ft to 12 ft: Requires 2-piece extension (2PCEXT-KE/KECOM-30)
- Recirculation Option: Requires CF1 charcoal filters (sold separately)
- Outdoor Use: Not approved for outdoor installation
Additional Information

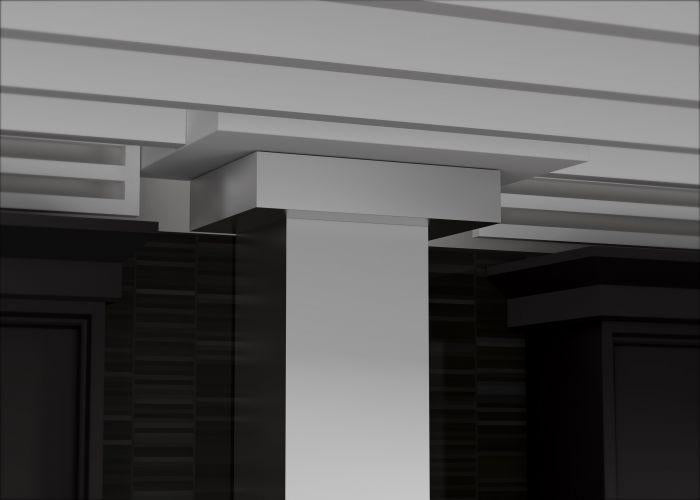

- Includes crown molding (CM5-587/597/KE/KECOM-30/KZ)
- Available in multiple sizes: 30", 36", 42", and 48"
- Designed for standard residential kitchen use
