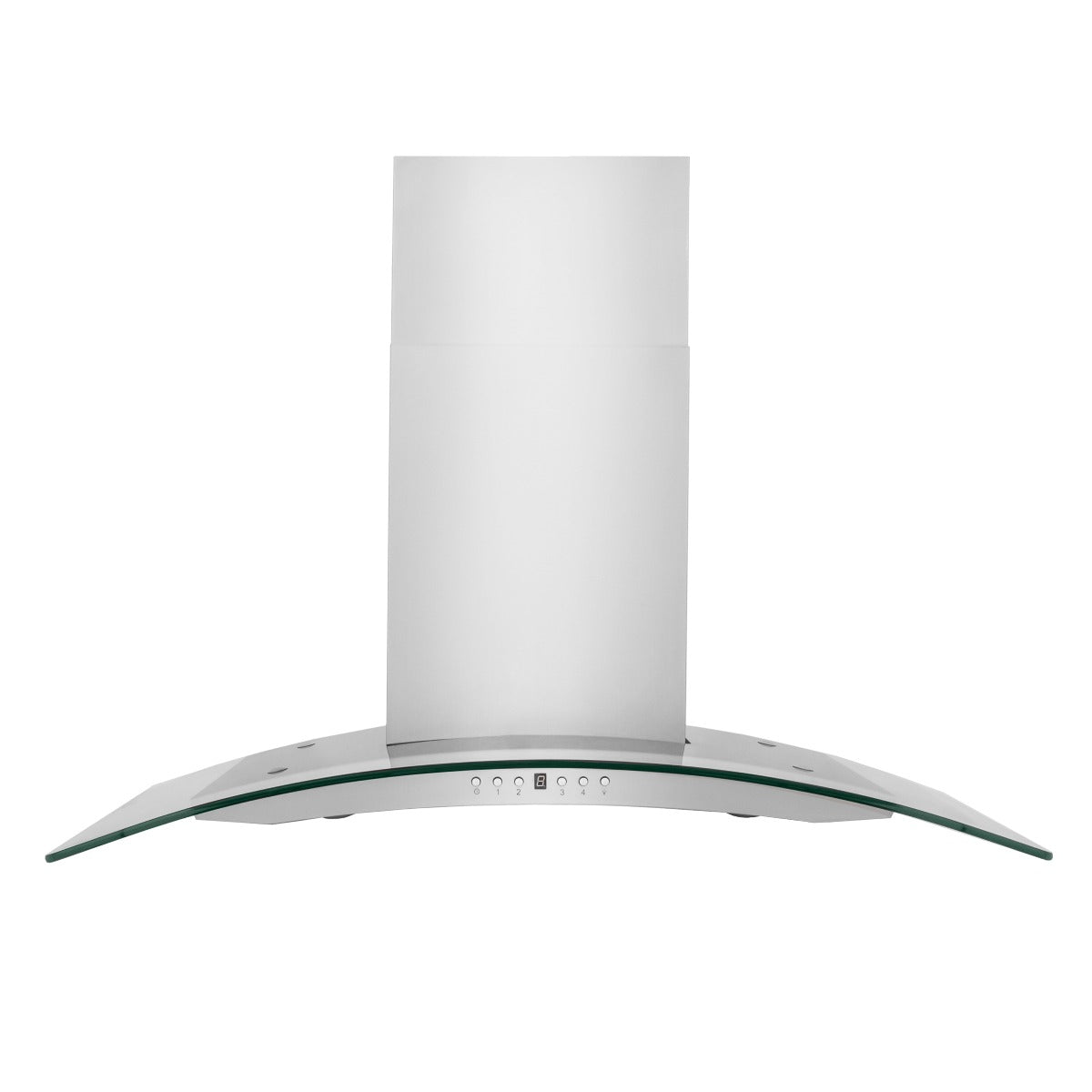

ZLINE 30 in. Wall Mount Range Hood Convertible Vent Stainless Steel & Glass (KN4-30)
ZLINE 30 in. Wall Mount Range Hood Convertible Vent Stainless Steel & Glass (KN4-30)
Size Chart
| UK Size | US Size | Diameter (mm) | Circumference (mm) | Fit |
|---|---|---|---|---|
| J | 5 | 15.7 mm | 49.3 mm | Her |
| K | 5.5 | 16.1 mm | 50.6 mm | Her |
| L | 6 | 16.5 mm | 51.9 mm | Her |
| M | 6.5 | 16.9 mm | 53.1 mm | Her |
| N | 7 | 17.3 mm | 54.4 mm | Her |
| O | 7.5 | 17.7 mm | 55.7 mm | Her |
| P | 8 | 18.1 mm | 57.0 mm | Her |
| Q | 8.5 | 18.5 mm | 58.3 mm | His |
| R | 9 | 18.9 mm | 59.5 mm | His |
| S | 9.5 | 19.4 mm | 60.8 mm | His |
| T | 10 | 19.8 mm | 62.1 mm | His |
| U | 10.5 | 20.2 mm | 63.4 mm | His |
| V | 11 | 20.6 mm | 64.6 mm | His |
| W | 11.5 | 21.0 mm | 65.9 mm | His |

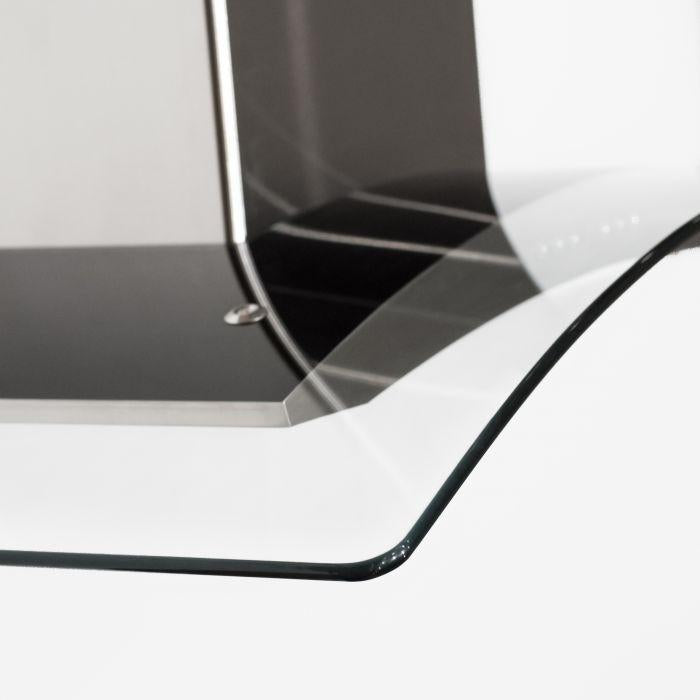

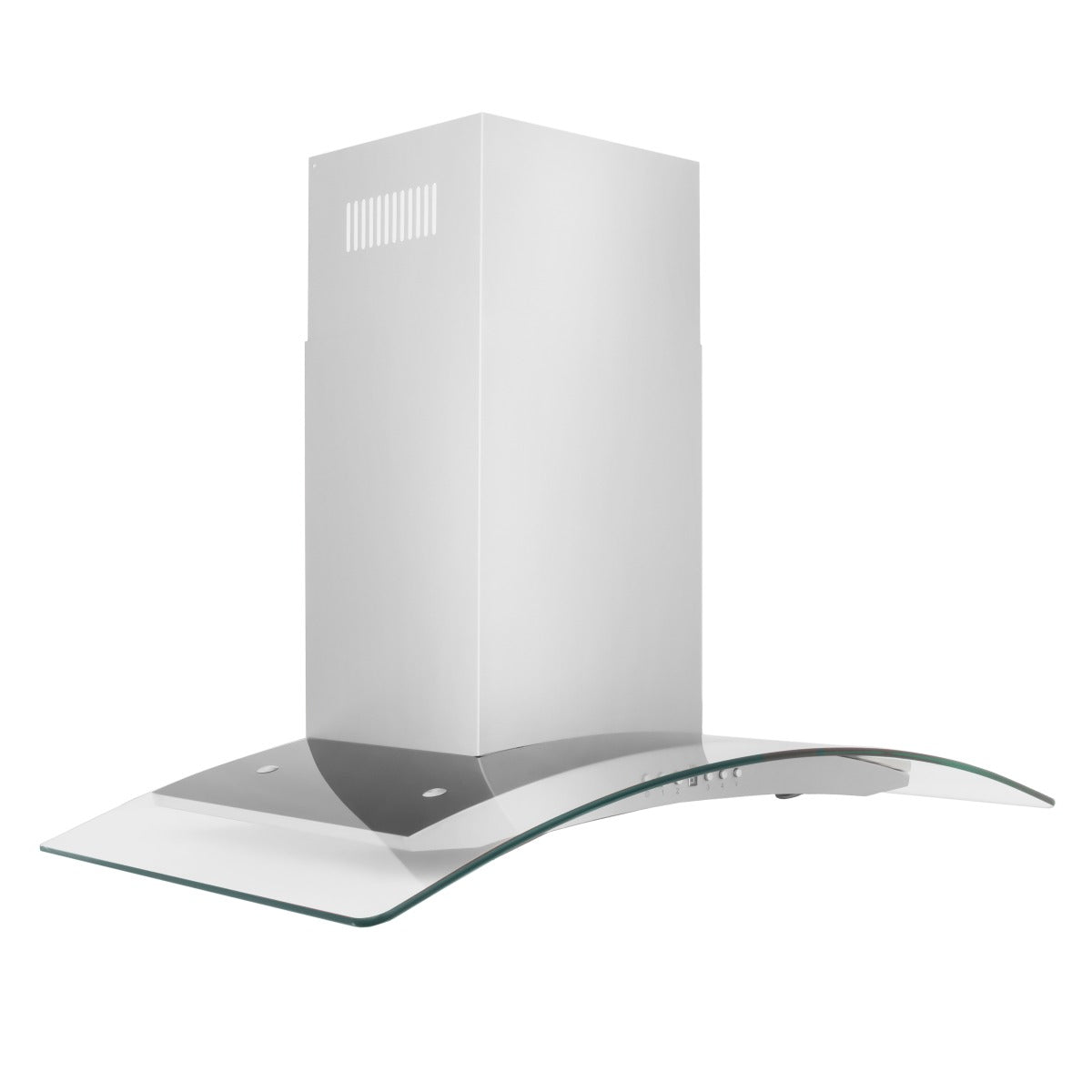

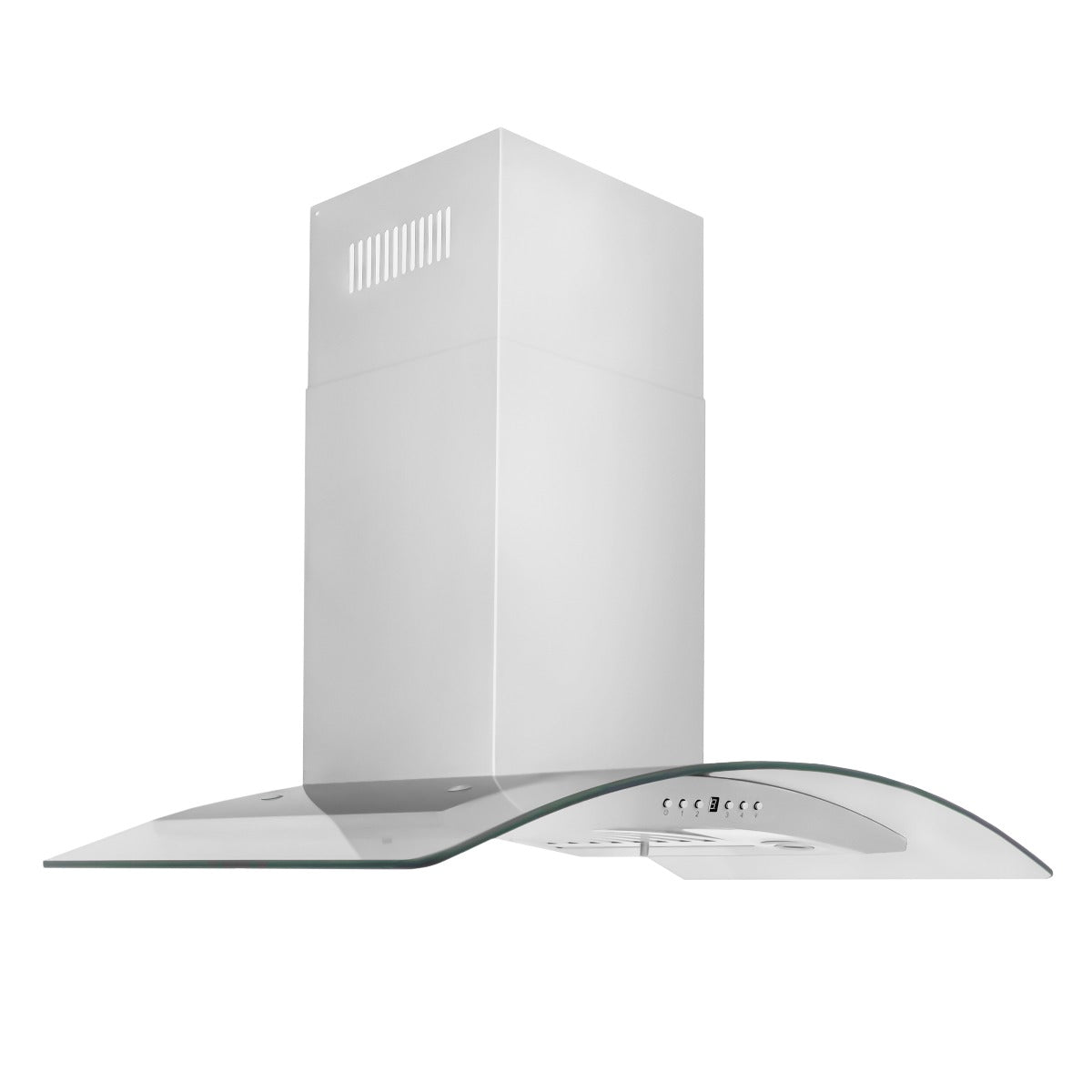

The ZLINE 30 in. Wall Mount Range Hood (KN4-30) is constructed from 430-grade stainless steel with a glass canopy, designed for indoor kitchen ventilation. This model features a 4-speed motor with a maximum airflow of 400 CFM, suitable for removing smoke, grease, and cooking odors. Built-in LED lighting and dishwasher-safe stainless steel baffle filters support everyday use and maintenance.
The unit includes two telescoping chimney pieces to accommodate standard ceiling heights, with optional extension kits available for higher or lower ceilings. This range hood can be installed as ducted or converted to ductless operation with optional charcoal filters (sold separately).
Key Features:
-
30 in. wall mount range hood with stainless steel and glass construction
-
Convertible venting: ducted or ductless (requires CF1 charcoal filters, sold separately)
-
4-speed motor with airflow up to 400 CFM
-

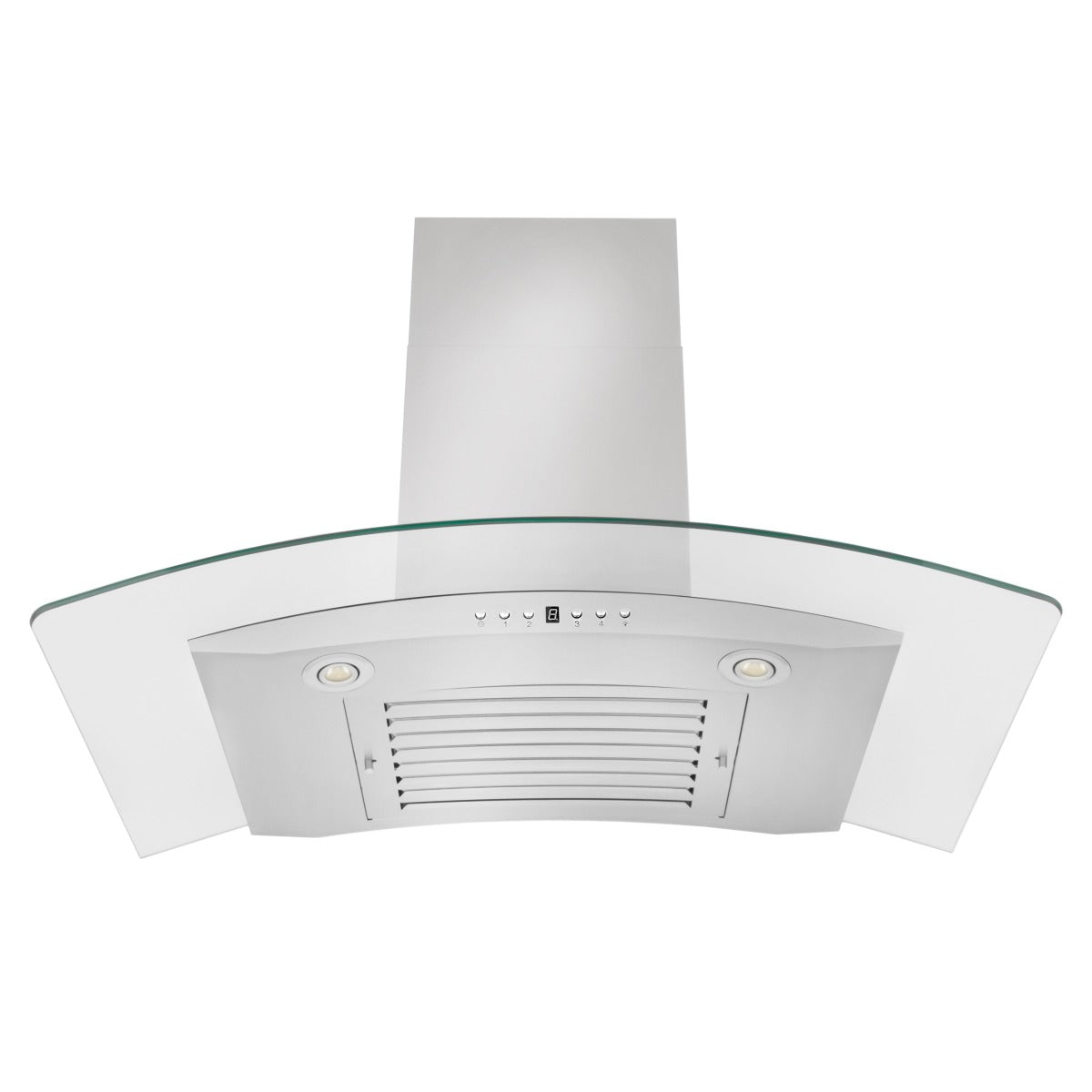

Dishwasher-safe stainless steel baffle filters
-

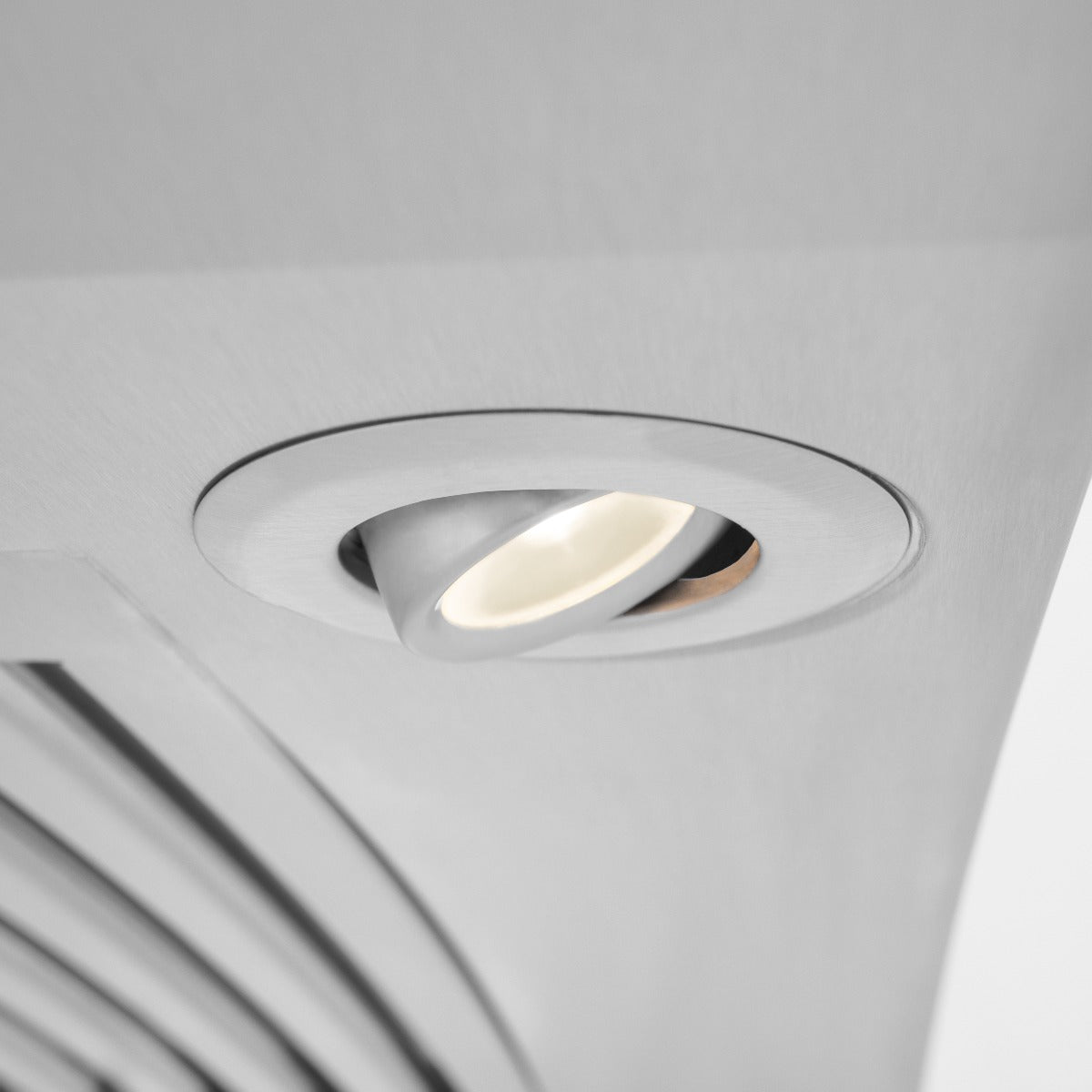

Dual directional LED lights (3W each)
-

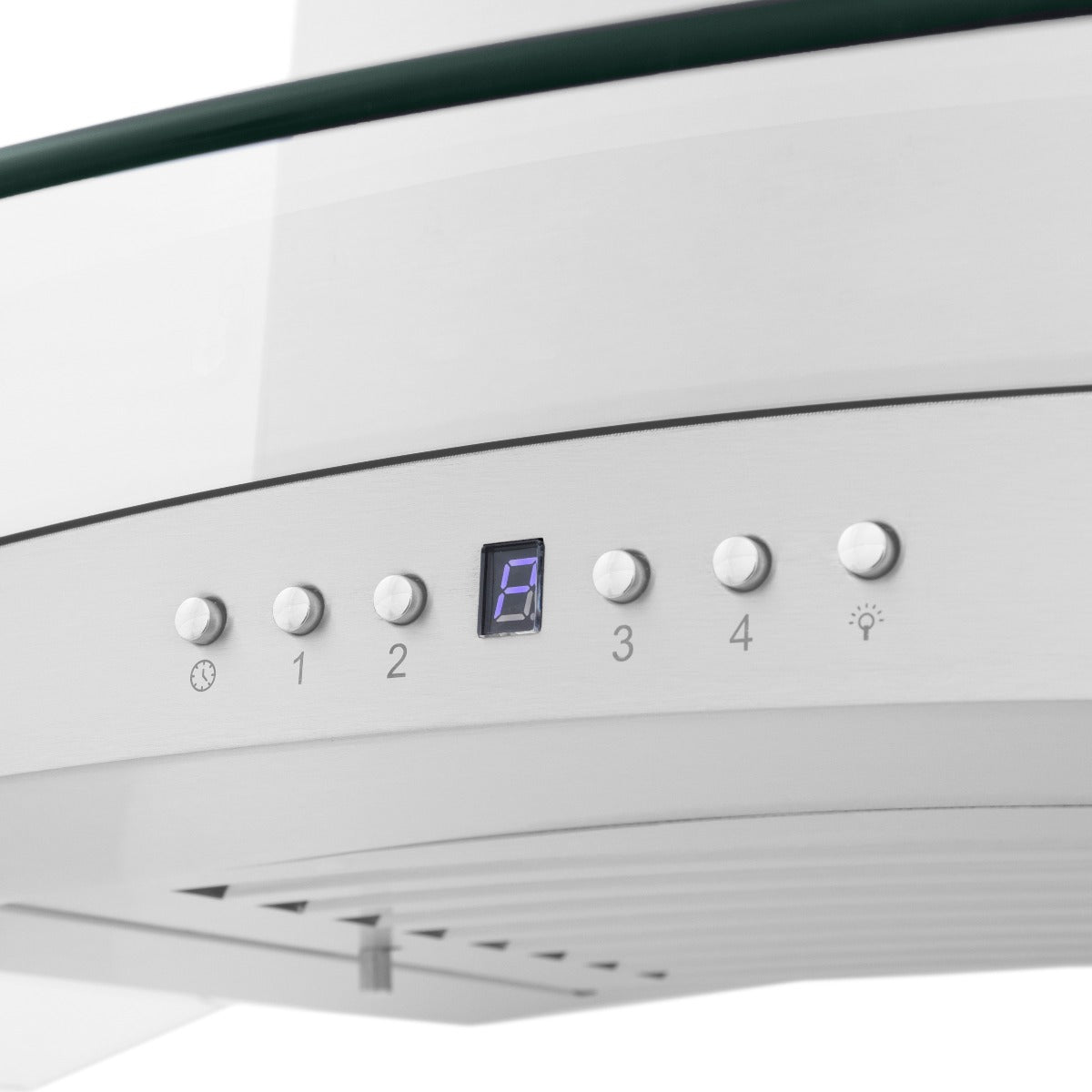

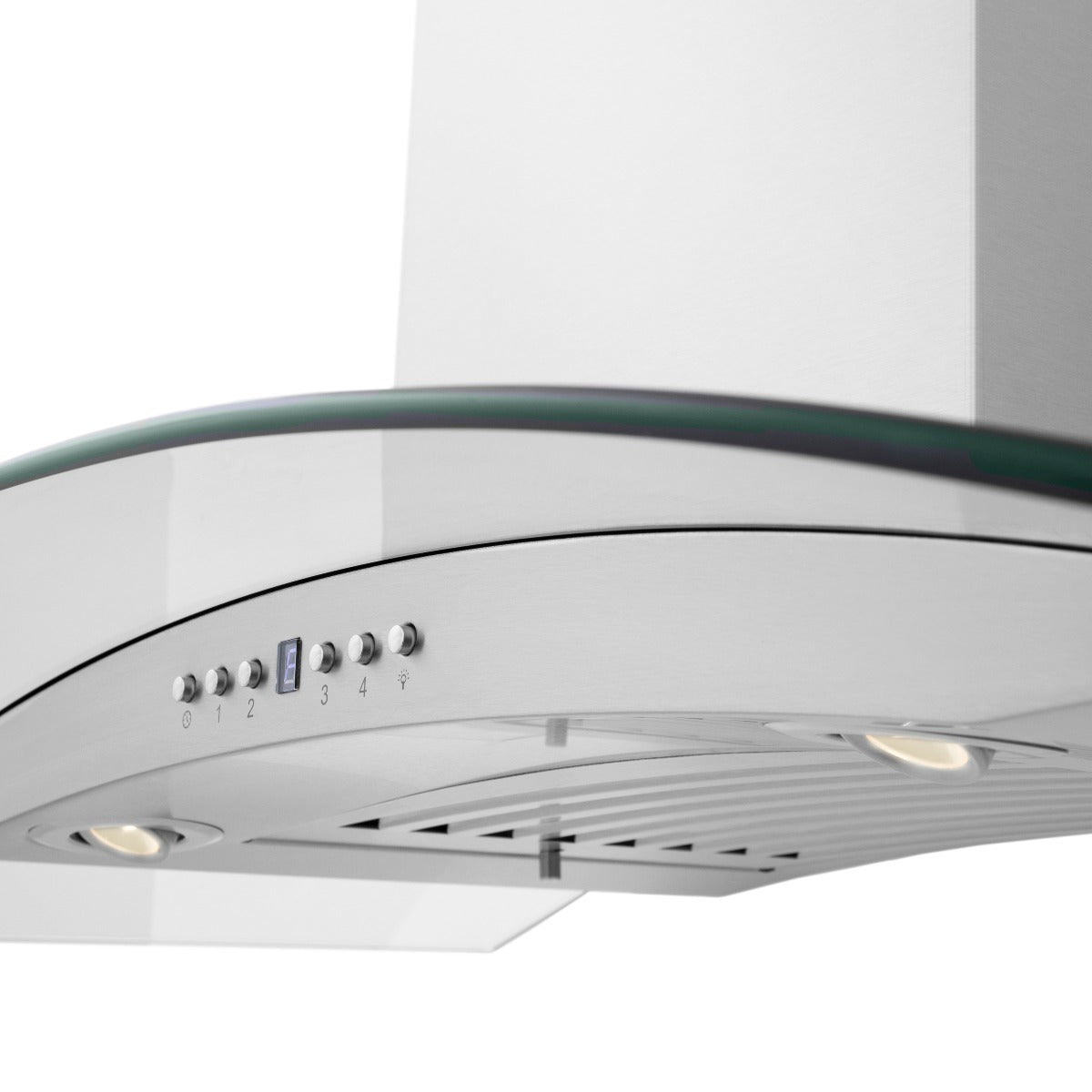

LCD control panel with timer and delayed shutoff function
-
Noise level range: 20–41 dBA (varies by speed)
-
Includes two telescoping chimney sections for 8–9 ft. ceilings
-
Compatible with extension kits for 7–12 ft. ceiling heights (sold separately)
-
6 in. round duct outlet with backdraft damper included
-
ETL and UL listed for safety compliance
Specifications
-

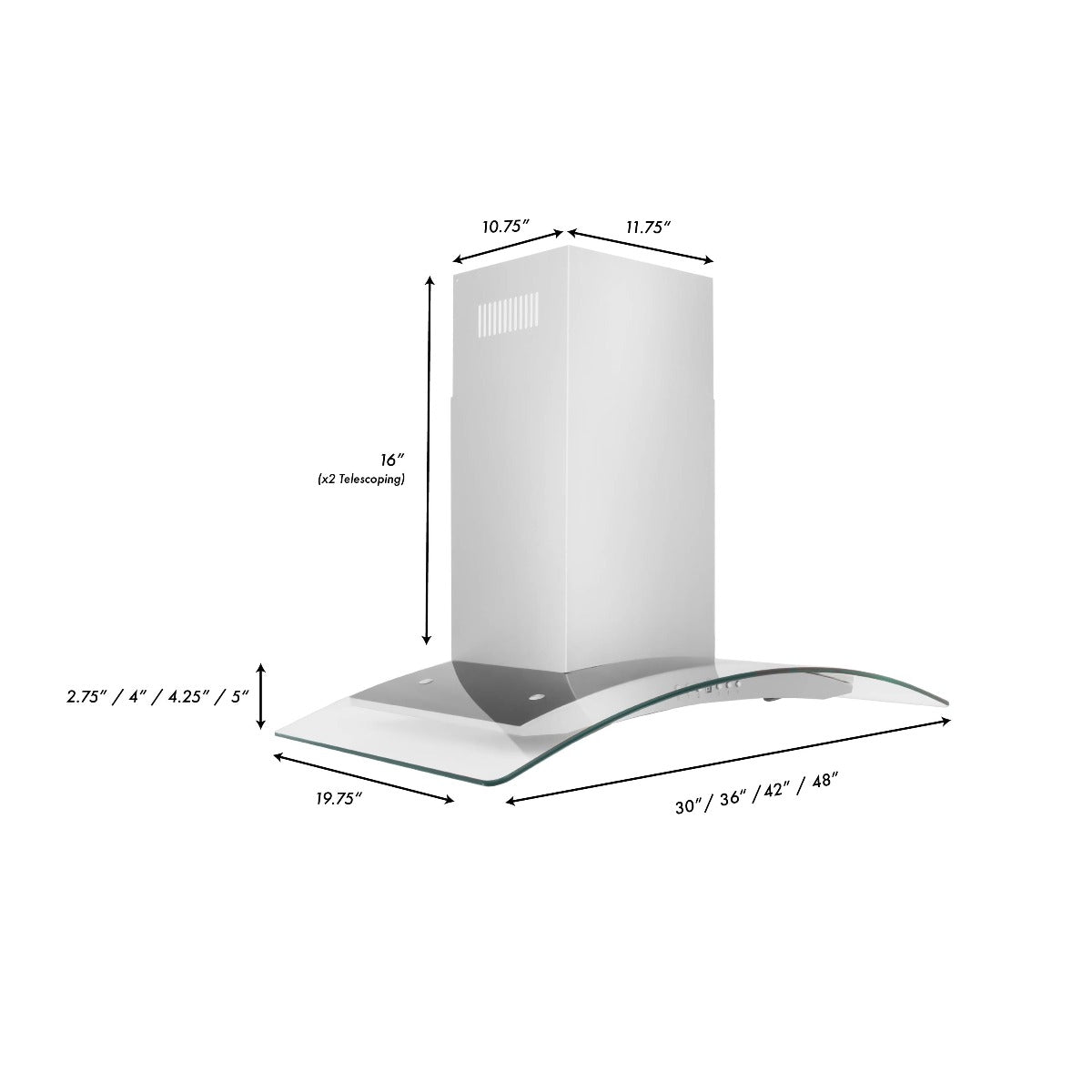

Dimensions: 30 in. W x 19.5 in. D x 2.75 in. H
-
Chimney Dimensions: 11.75 in. W x 10.75 in. D x 16 in. H (each, telescoping)
-
Material: 430 stainless steel (21-gauge) with glass
-
Motor: 400 CFM, 4-speed
-
Voltage: 110V / 60Hz
-
Mount Type: Wall mount
-
Control Type: LCD panel with speed and timer controls
-
Lighting: 2 LED lights (3W each)
-
Vent Size: 6 in. outlet
Installation & Compatibility
-
Standard fit: 8–9 ft. ceilings (included chimneys)
-
Short kit required for ceilings under 8 ft. (sold separately)
-
Extension kits required for ceilings above 9 ft. (sold separately)
-
Crown moldings available for purchase (sold separately)
-
Not certified for outdoor use
Additional Information
-
Model Number: KN4-30
-
UPC: 814118023017
-
Certifications: ETL Listed, UL Listed
-
Warranty: 3-year parts warranty
