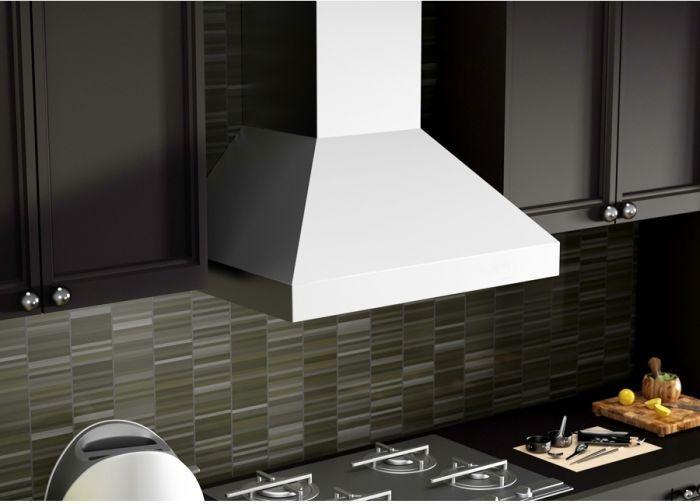

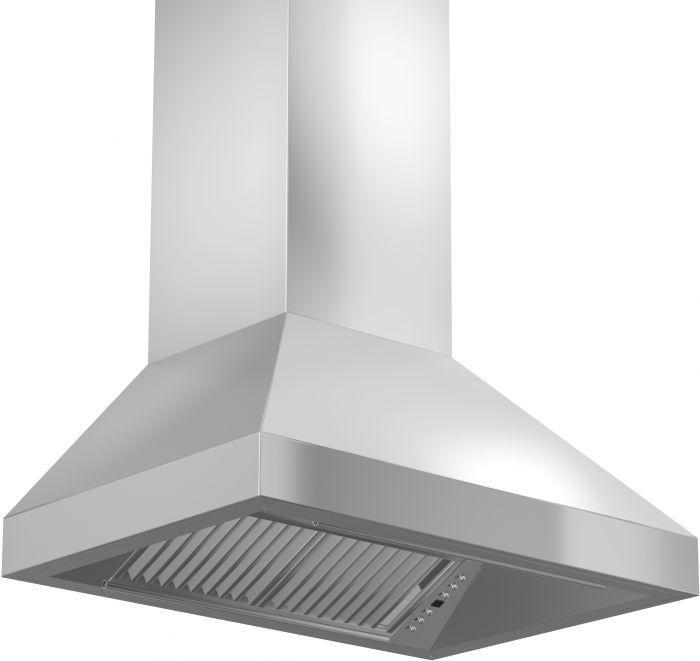

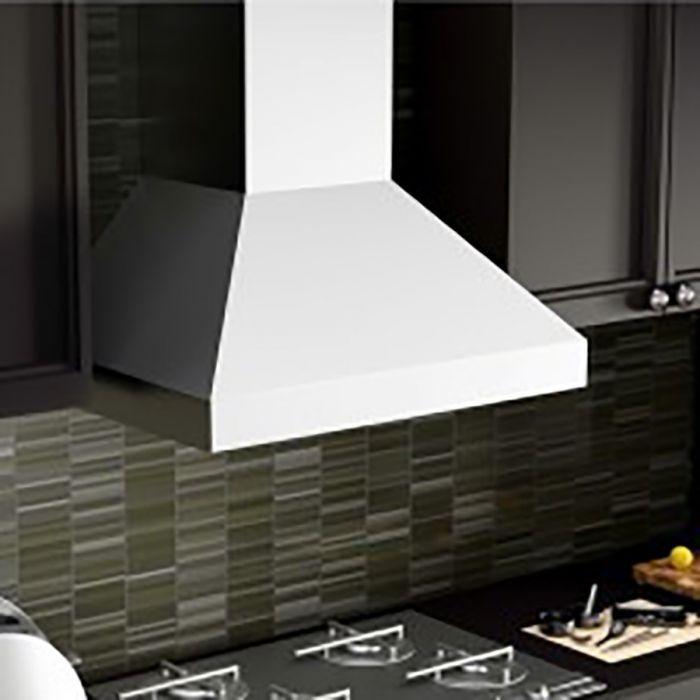

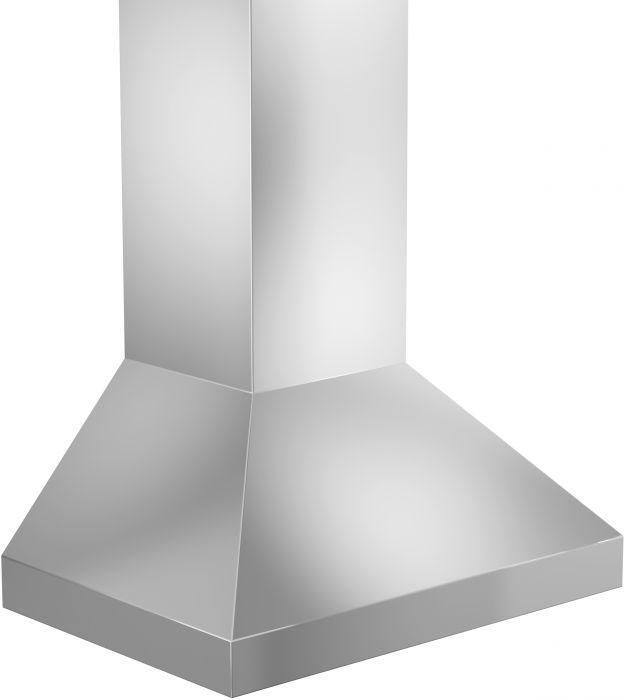

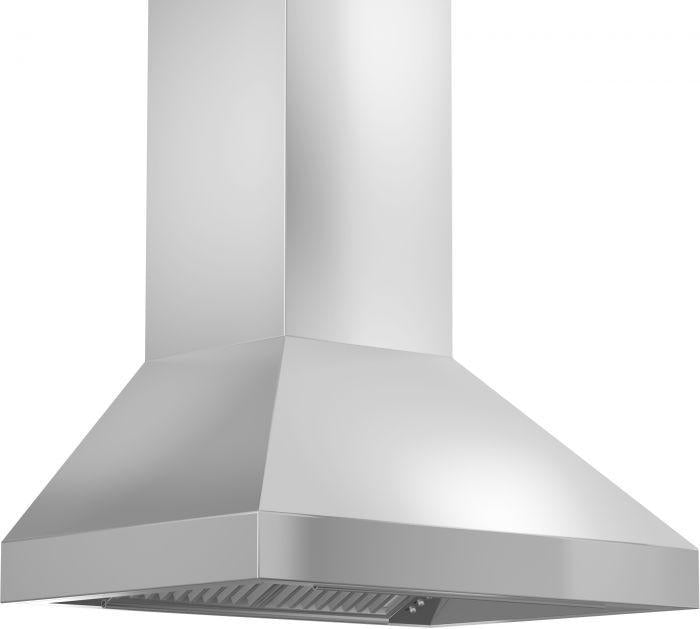

The ZLINE 597-RD-30 is a 30-inch wall mount range hood constructed from 430-grade stainless steel, designed for efficient ventilation and durability. This model features a remote dual blower system that helps reduce noise levels inside the kitchen while maintaining strong airflow performance.
The range hood includes dishwasher-safe stainless steel baffle filters that capture grease and debris for easy maintenance. Built-in LED lighting provides clear illumination of the cooking surface, while the 4-speed fan control allows you to adjust airflow based on your cooking needs, with a maximum airflow capacity of up to 700 CFM.
This unit is designed for ducted (external venting) installation only and is not compatible with recirculating configurations.

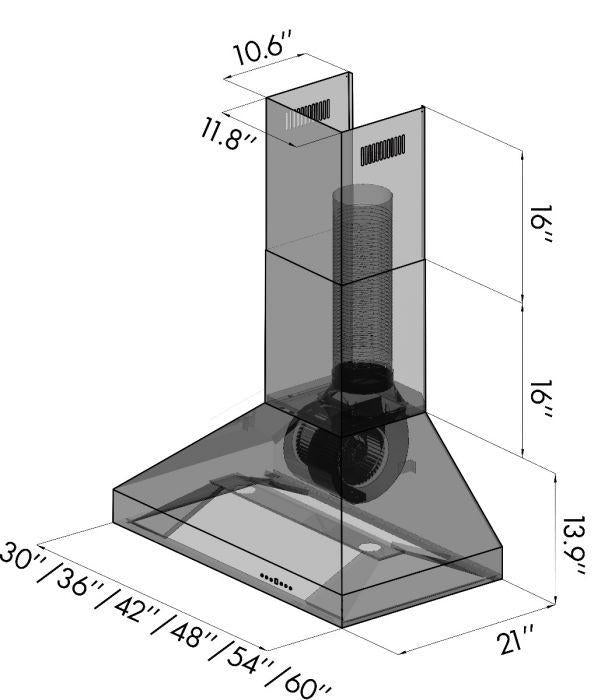

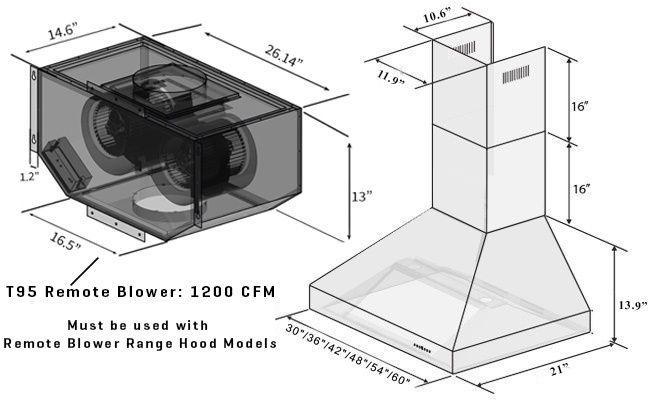

The package includes two 16-inch telescoping chimney pieces to accommodate standard ceiling heights between 8 ft and 9 ft. Optional extension or short kits are available for ceilings outside this range.
Key Features:
- 30-inch wall mount range hood
- Constructed from 430-grade stainless steel

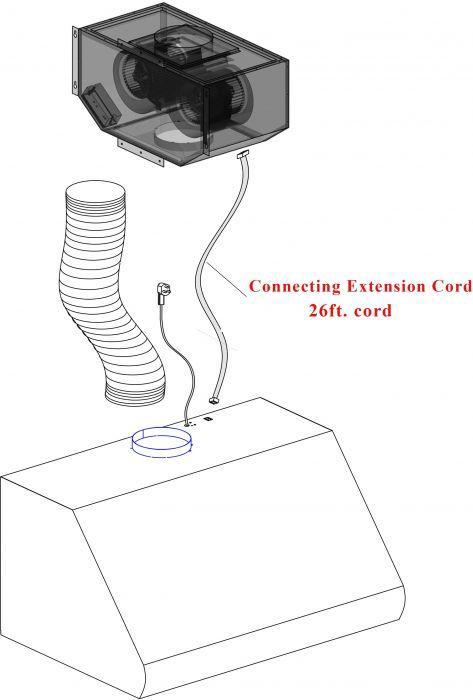

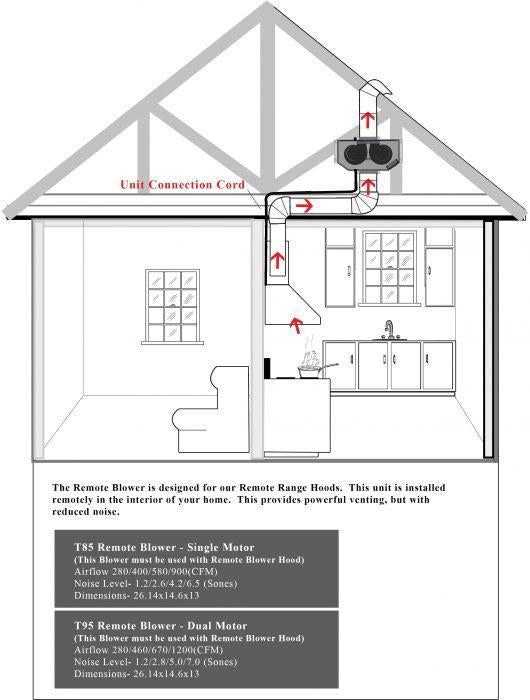

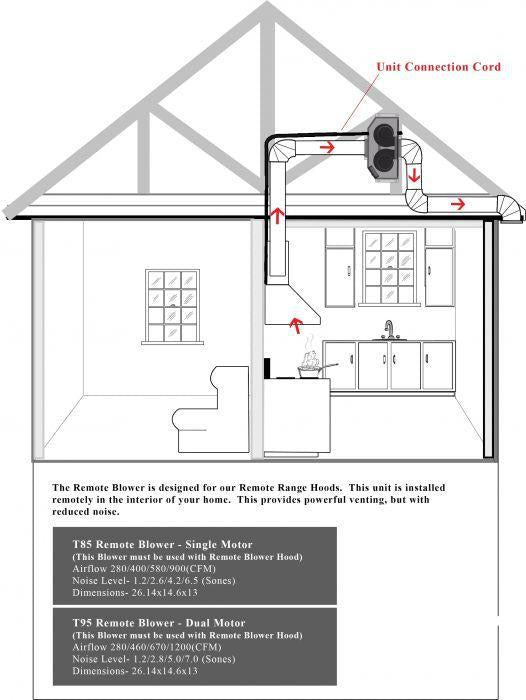

- Remote dual blower system for reduced in-kitchen noise
- 4-speed fan control for adjustable ventilation
- Maximum airflow up to 700 CFM

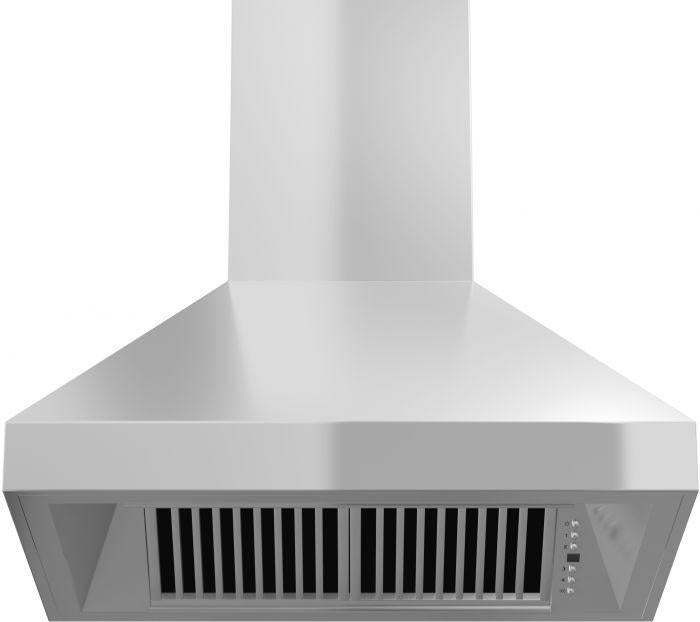

- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting for cooktop visibility
- Ducted (external venting only) installation
- Includes telescoping chimney for 8 ft to 9 ft ceilings
Installation & Compatibility
- Ductless/Recirculation: Not supported
-
Ceiling Height Compatibility:
- Less than 8 ft: Requires Short Kit (SK-587/597)
- 8 ft – 9 ft: Standard installation (no kit required)
- 9 ft – 10 ft: Requires Extension Kit (1PCEXT-587/597)
- 10 ft – 12 ft: Requires Extension Kit (2PCEXT-587/597)
-
Crown Molding Options (sold separately):
CM2, CM3, CM4, CM5, CM6 compatible with 587/597/KE/KECOM-30/KZ series - Outdoor Use: Not certified for outdoor installation
Available Sizes
- 30 inch (597-RD-30)
- 36 inch (597-RD-36)
- 42 inch (597-RD-42)
- 48 inch (597-RD-48)
