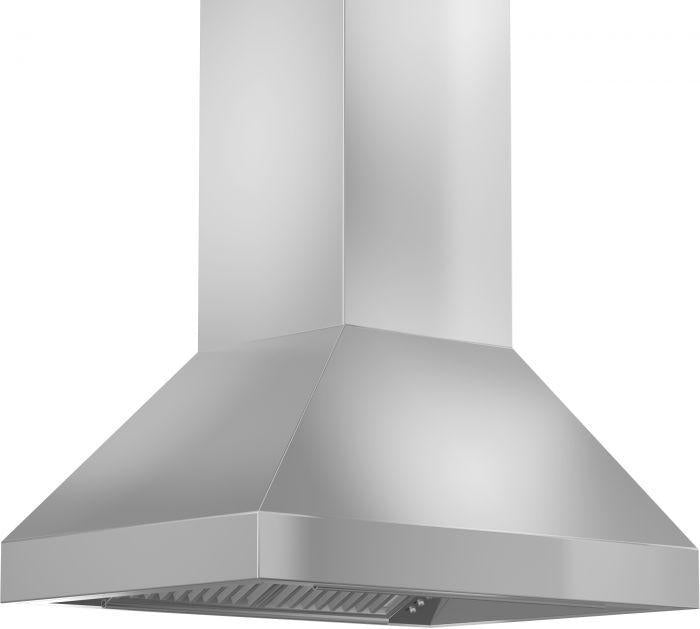

The ZLINE 597i-30 is a 30-inch island mount range hood constructed from 430-grade stainless steel, designed for efficient ventilation and modern kitchen applications. This model features a ducted design and is suitable for standard residential use.
The range hood includes a 4-speed motor with a maximum airflow capacity of up to 500 CFM, helping to remove smoke, grease, and odors from the cooking area. Dishwasher-safe stainless steel baffle filters allow for easy maintenance, while integrated LED lighting provides clear visibility over the cooktop.

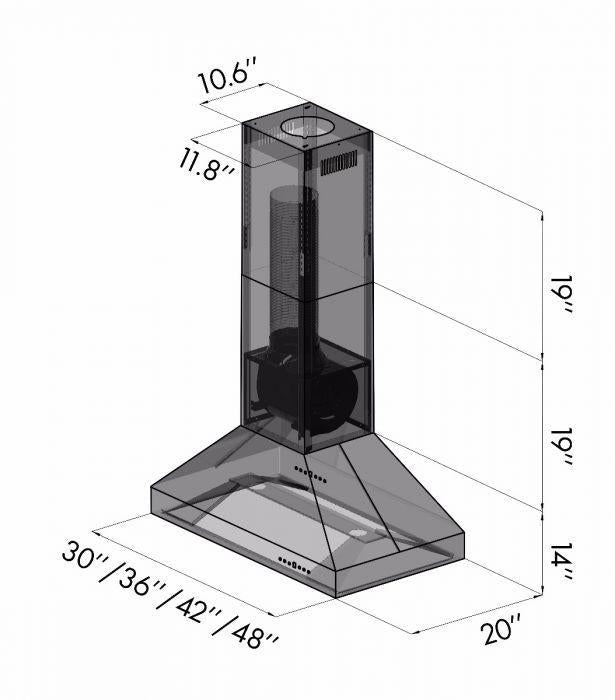

The unit comes with two 19-inch telescoping chimney pieces, designed to fit ceiling heights between 8 and 9 feet. Additional extension kits or short kits are required for ceilings outside this range.
Key Features:
- 30-inch island mount range hood
- 430-grade stainless steel construction
- 4-speed fan control with up to 500 CFM airflow

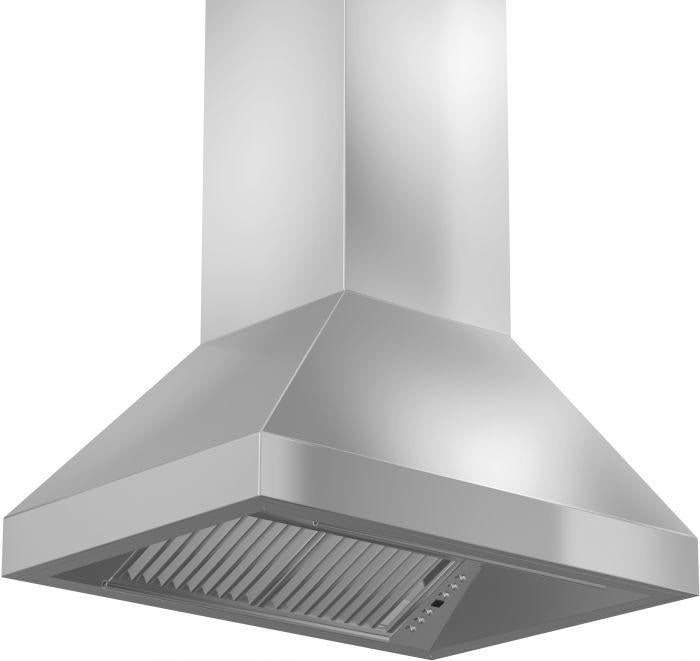

- Dishwasher-safe stainless steel baffle filters
- Built-in LED lighting
- Ducted ventilation system (non-recirculating)
- Includes telescoping chimney for 8 ft to 9 ft ceilings
Additional Information:
- Not compatible with ductless/recirculating installation
- Not certified for outdoor use
- Optional chimney extensions and short kits available for varying ceiling heights
- Available in additional sizes: 36-inch (597i-36), 42-inch (597i-42), and 48-inch (597i-48)
