Forno Maderno 60-Inch Convertible Refrigerator and Freezer Combo, 27.2 Cu. Ft., Black with Antique Brass Handles, Trim Kit Included (Model FFFFD1722-60MG-BLK)
Forno Maderno 60-Inch Convertible Refrigerator and Freezer Combo, 27.2 Cu. Ft., Black with Antique Brass Handles, Trim Kit Included (Model FFFFD1722-60MG-BLK)
Size Chart
| UK Size | US Size | Diameter (mm) | Circumference (mm) | Fit |
|---|---|---|---|---|
| J | 5 | 15.7 mm | 49.3 mm | Her |
| K | 5.5 | 16.1 mm | 50.6 mm | Her |
| L | 6 | 16.5 mm | 51.9 mm | Her |
| M | 6.5 | 16.9 mm | 53.1 mm | Her |
| N | 7 | 17.3 mm | 54.4 mm | Her |
| O | 7.5 | 17.7 mm | 55.7 mm | Her |
| P | 8 | 18.1 mm | 57.0 mm | Her |
| Q | 8.5 | 18.5 mm | 58.3 mm | His |
| R | 9 | 18.9 mm | 59.5 mm | His |
| S | 9.5 | 19.4 mm | 60.8 mm | His |
| T | 10 | 19.8 mm | 62.1 mm | His |
| U | 10.5 | 20.2 mm | 63.4 mm | His |
| V | 11 | 20.6 mm | 64.6 mm | His |
| W | 11.5 | 21.0 mm | 65.9 mm | His |

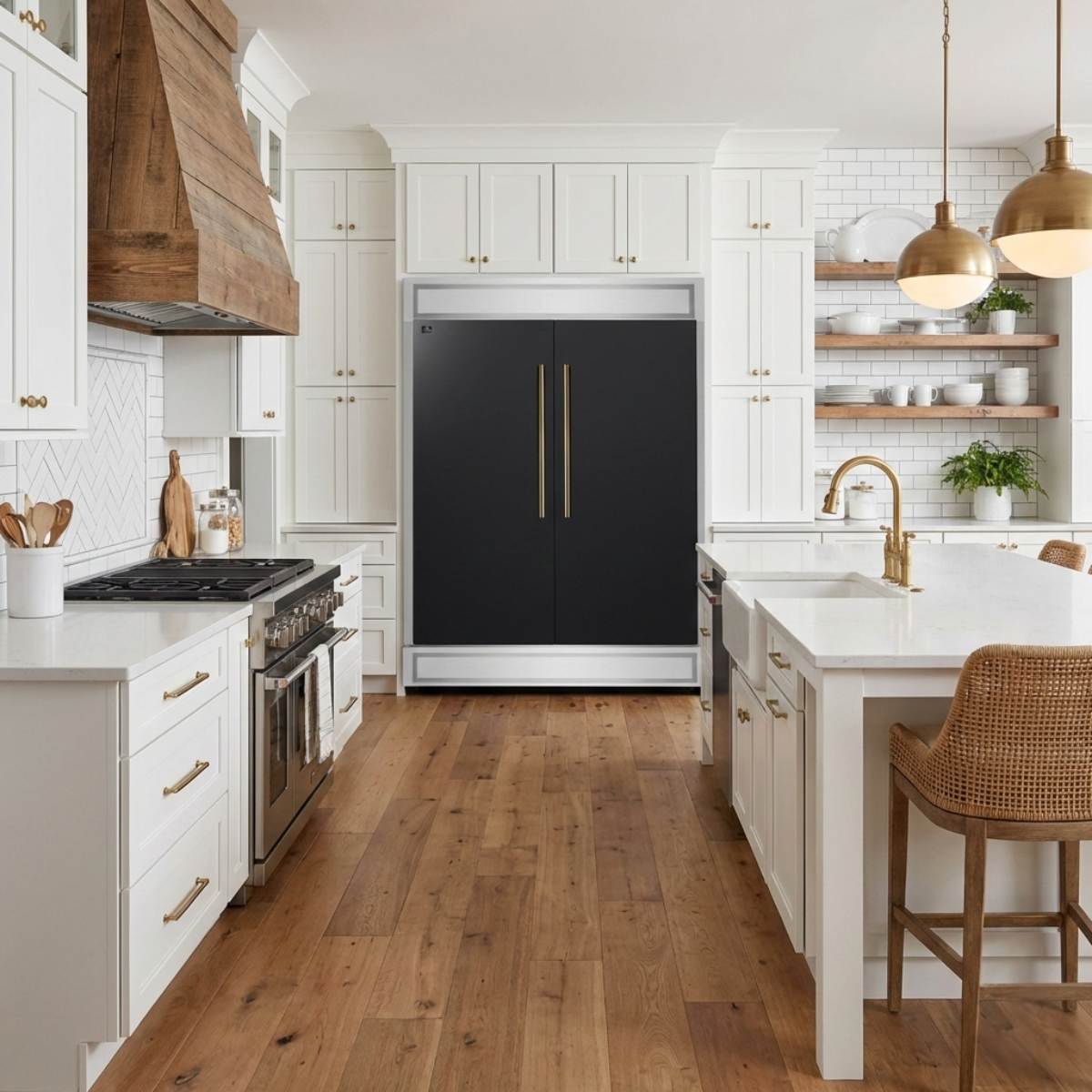

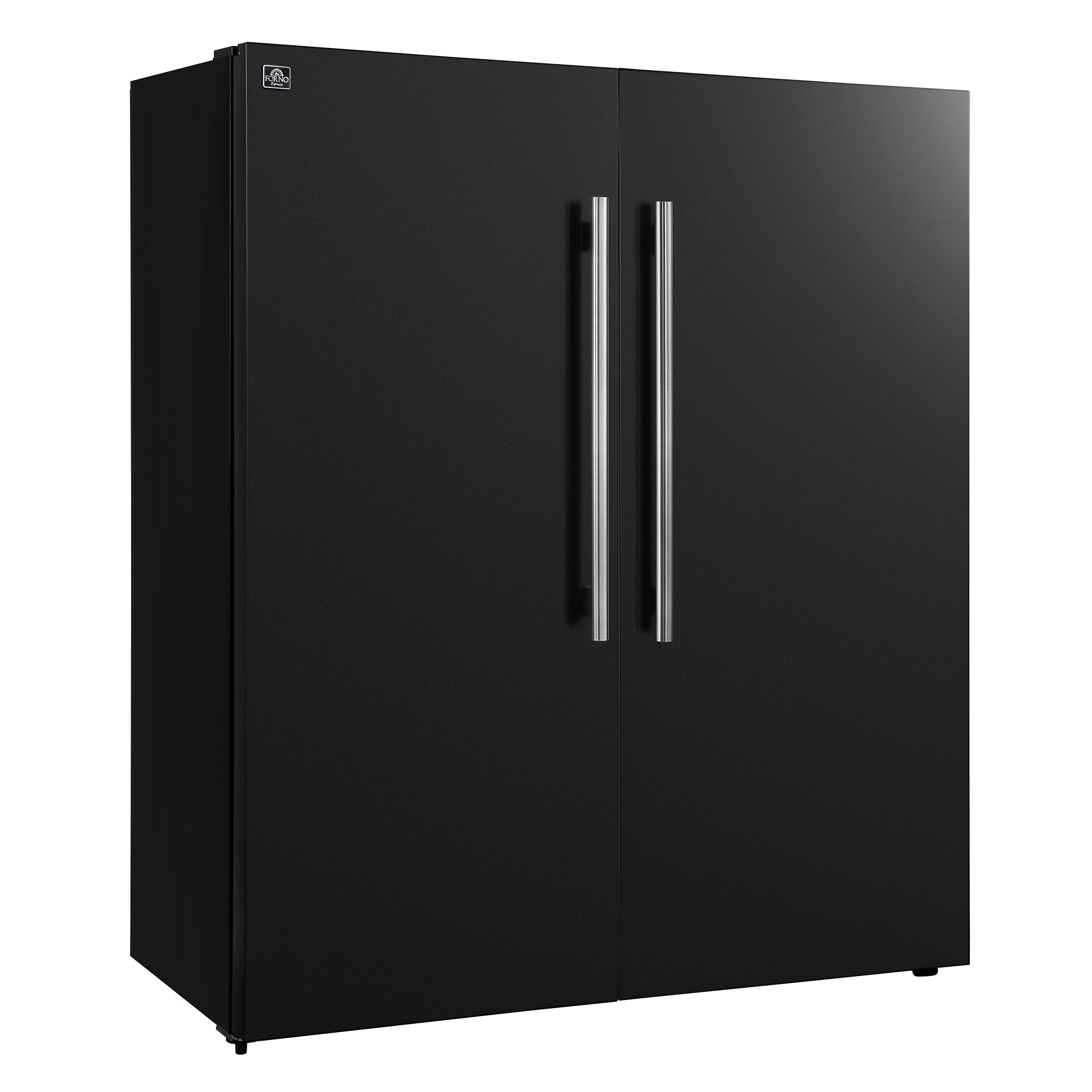

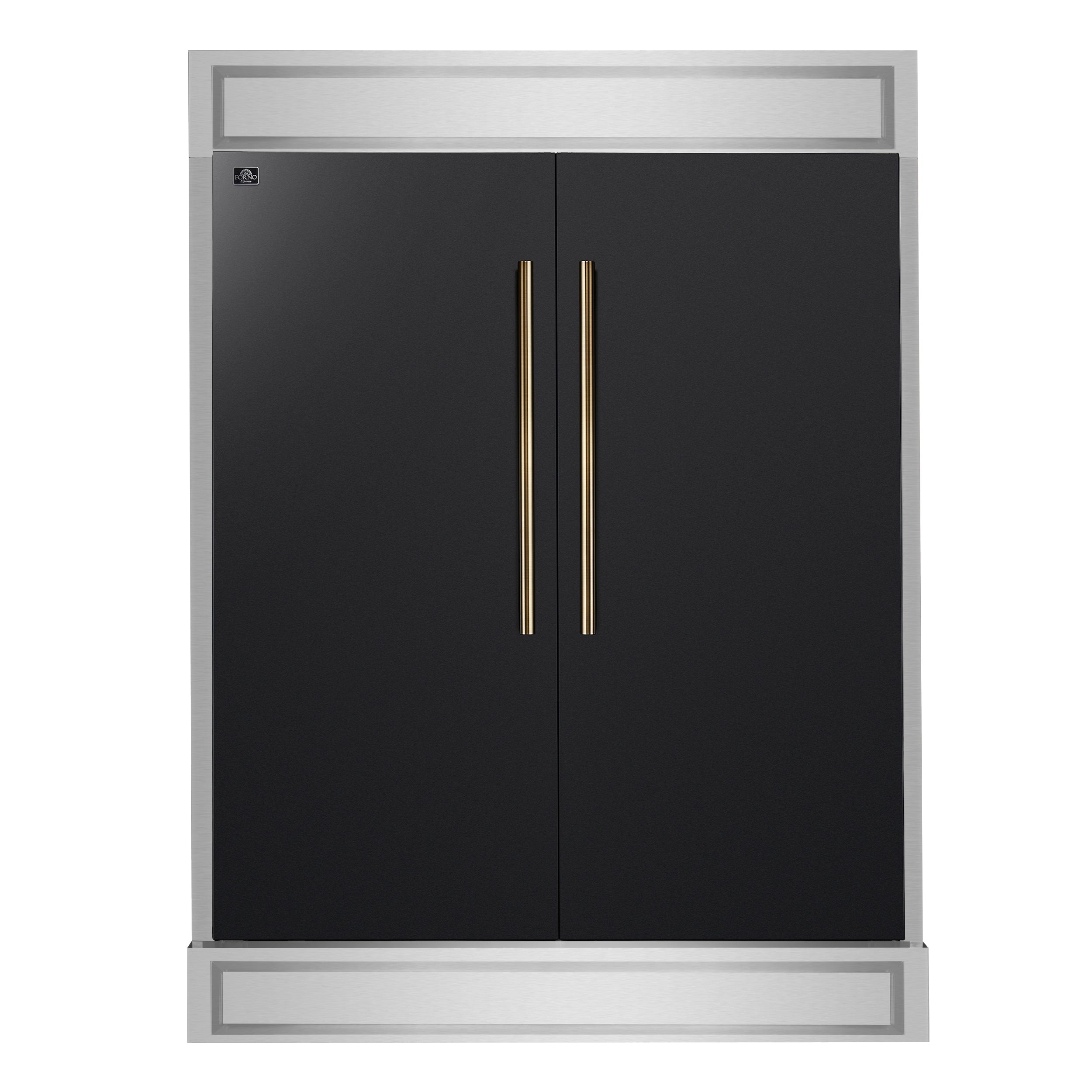

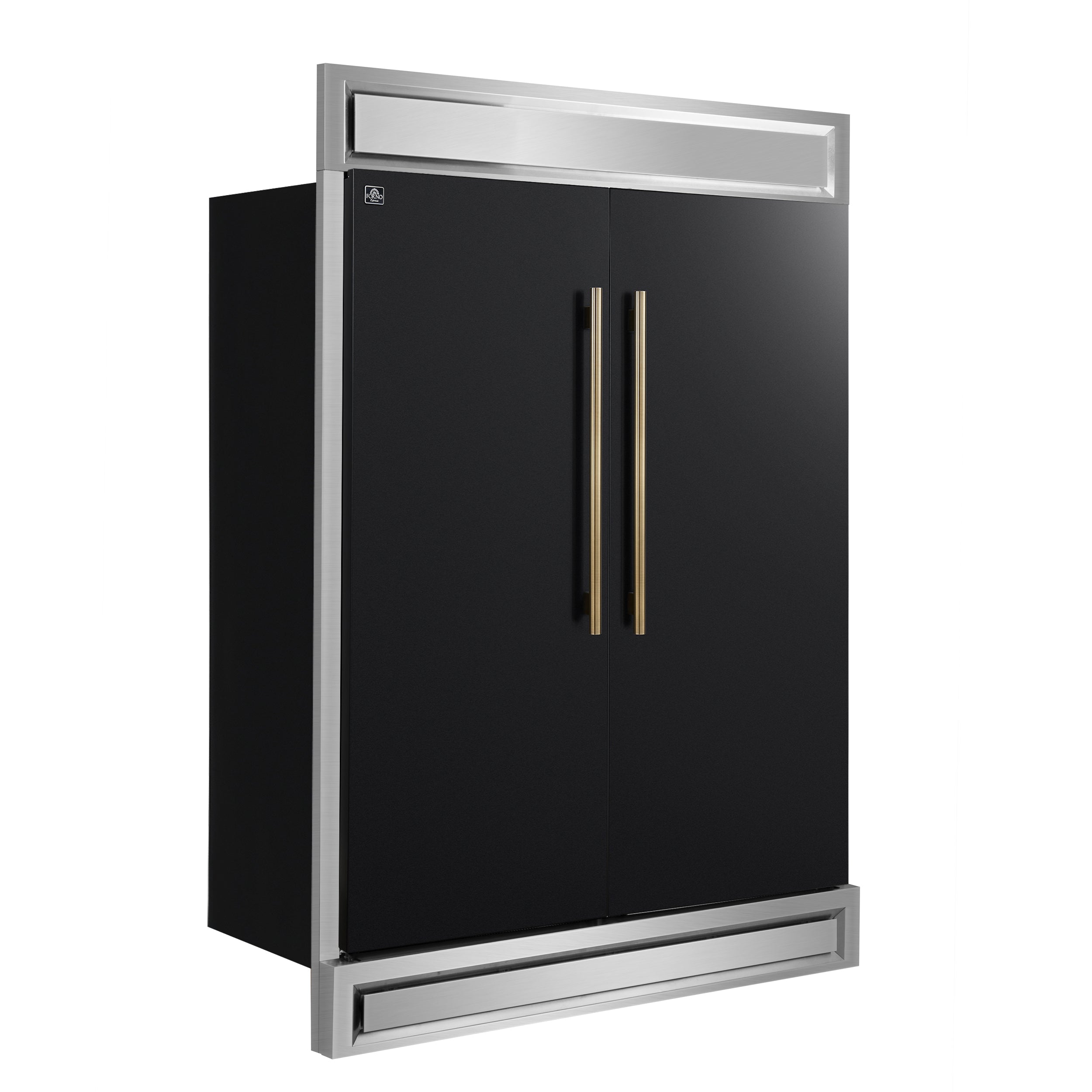

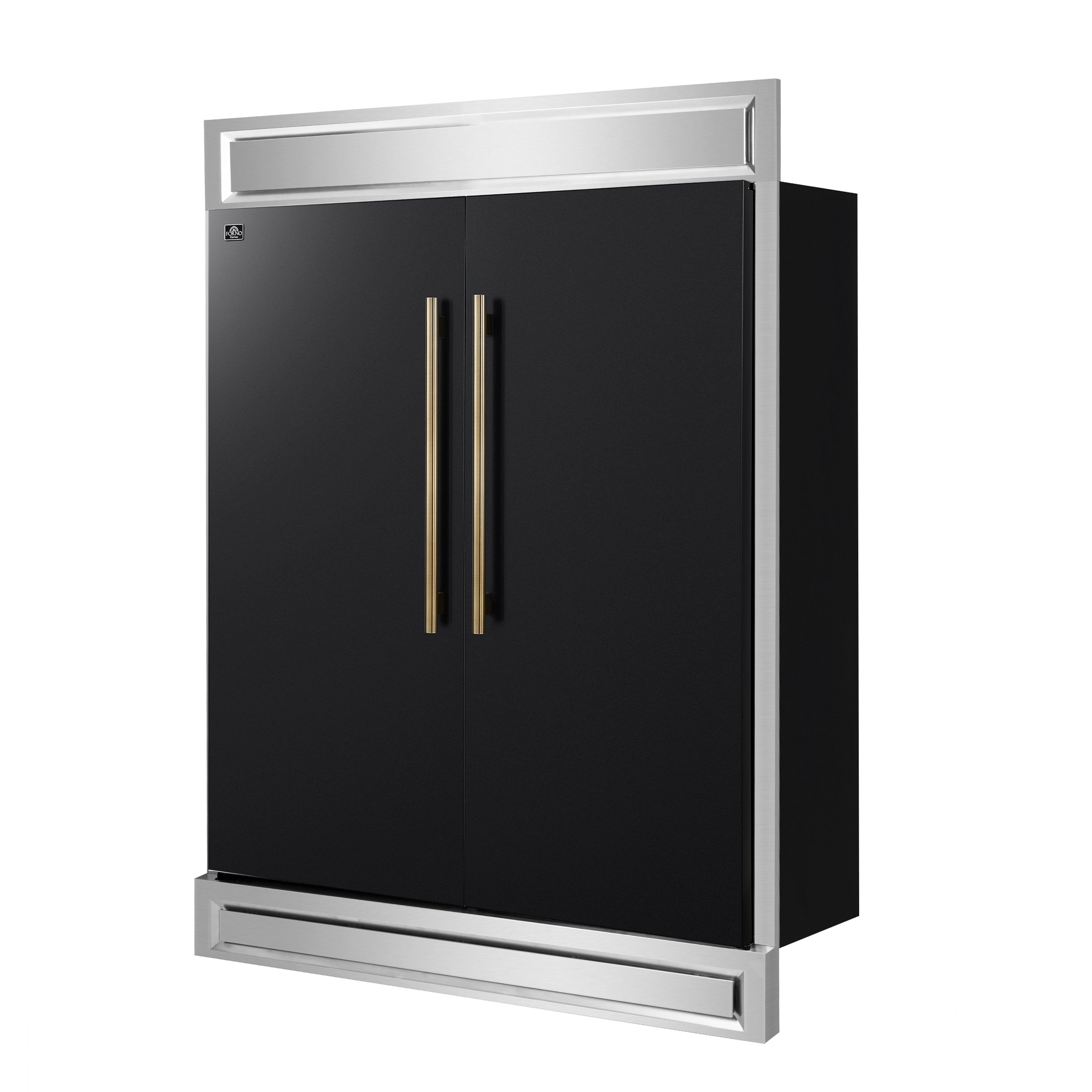

The Forno Maderno 60-inch convertible refrigerator and freezer combination is a side-by-side configuration created by pairing two 28-inch units with a compatible trim kit for a built-in style installation. The exterior features a black finish with antique brass handles. The combined total capacity is 27.2 cubic feet.
Each unit includes a convertible cooling zone that can be set to refrigerator or freezer mode based on storage needs. Total No-Frost technology helps reduce ice accumulation. Temperature settings are adjusted using a digital control panel.

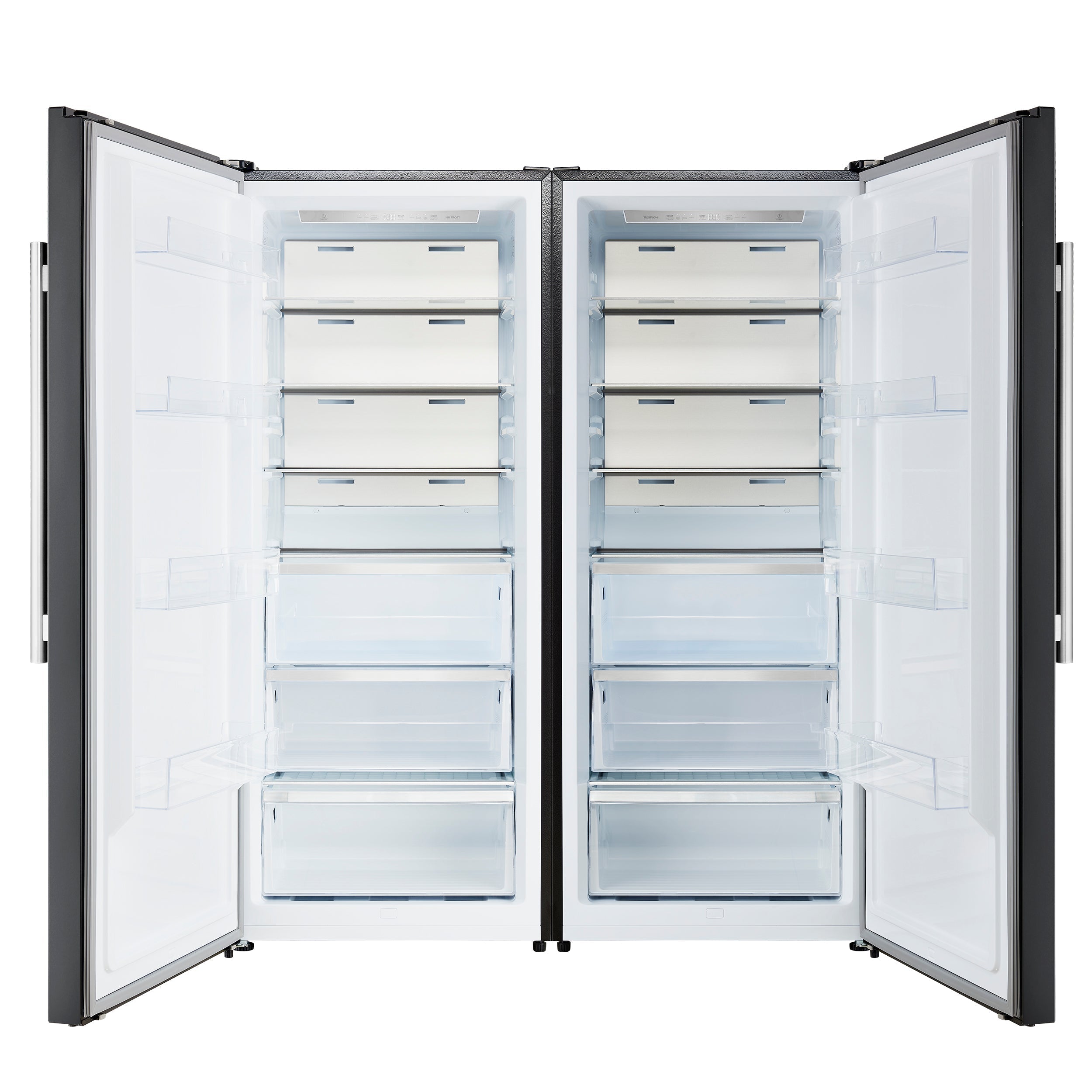

The interior configuration includes six tempered glass shelves with silver trim and six storage drawers to support organized storage. LED interior lighting provides visibility throughout both compartments. The doors are finished with VCM coating, and the rear panel is constructed with metal. The product is ENERGY STAR certified.
Key Features
-
60-inch side-by-side configuration using two 28-inch units with trim kit
-
Total capacity: 27.2 cu. ft.
-
Convertible cooling zones for refrigerator or freezer use
-
Digital temperature control panel
-
Total No-Frost system
-
Six tempered glass shelves with silver trim
-
Six storage drawers
-
LED interior lighting
-
Black exterior with antique brass handles
-
VCM-coated doors and metal back panel
-
ENERGY STAR certified
Installation & Electrical Requirements
This side-by-side configuration consists of three separate components:
-
Left swing unit: FFFFD1722-28BLK-LS
-
Right swing unit: FFFFD1722-28BLK-RS
-
Trim kit: F1722-60MTK
Each refrigeration unit requires a dedicated 15-amp circuit (2 x 15A total).
A built platform base is required for installation. The platform must extend fully beyond the cabinet opening. If the platform does not extend beyond the opening, the lower trim kit cannot be installed.
Installation Resources
Installation guides and videos are available in the product documentation section.
Important Notice
Failure to follow the stated installation requirements may result in improper alignment, inability to install trim kit components, or warranty limitations.
